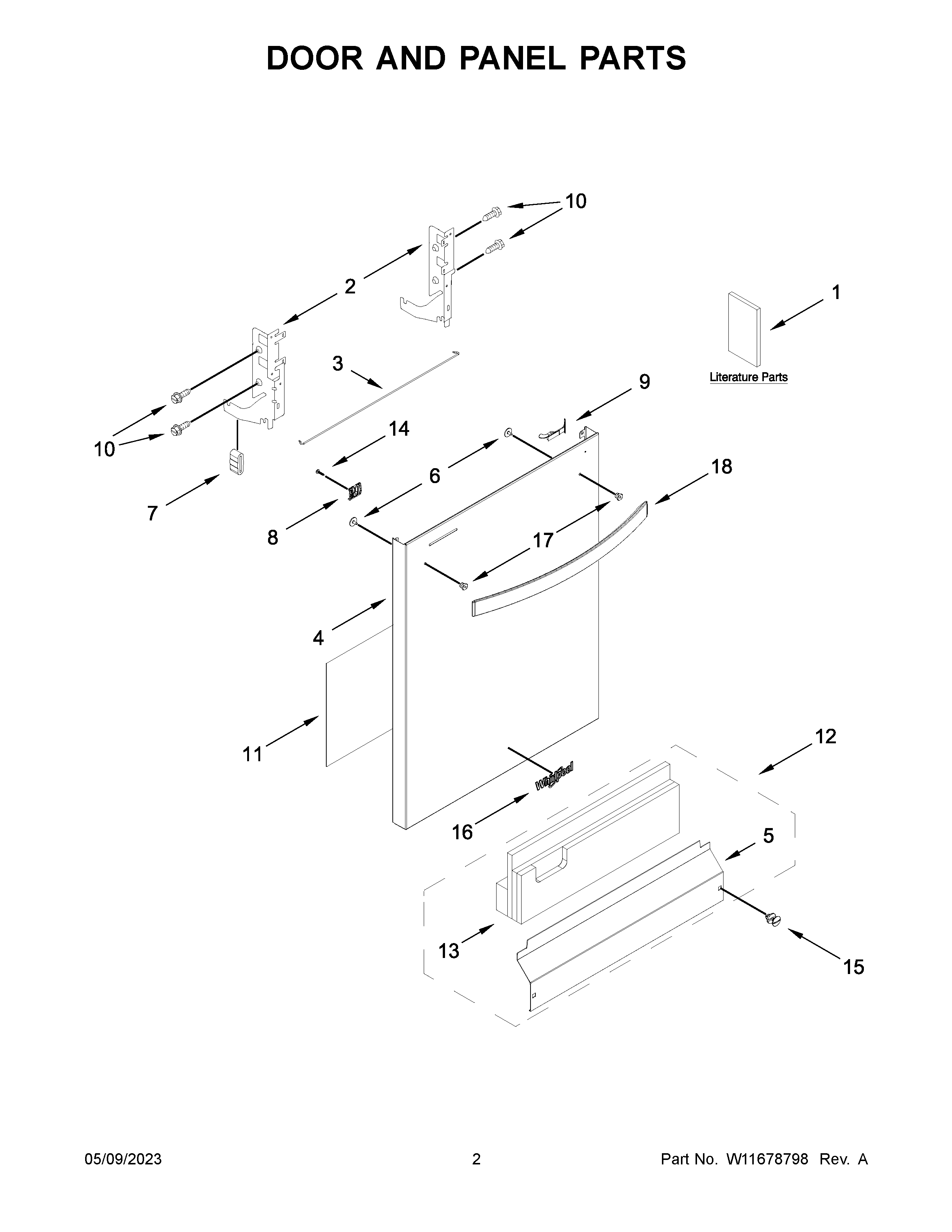

WDT540HAMZ1 02 – DOOR AND PANEL PARTS

WDT540HAMZ1 02 – DOOR AND PANEL PARTS

Written by

in

WDT540HAMZ1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1BTECH SHEET
1AOWNERS MANUAL
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W11613485 Whirlpool Panel
5PANEL
6W10826179 Whirlpool Dishwasher Screw
7WP8268961 Whirlpool Friction Pad
8W10692757 Whirlpool Dishwasher Nut Assembly
9W11504190 Whirlpool Indicator Light
10WP3400071 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W10827631 Whirlpool Toe Panel
13SHIELD
14WPW10213953 Whirlpool Screw
15WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
16W11178521 Whirlpool Dishwasher Nameplate
17W11157086 Whirlpool Dishwasher Door Handle Stud
18W11685315 Whirlpool Handle
