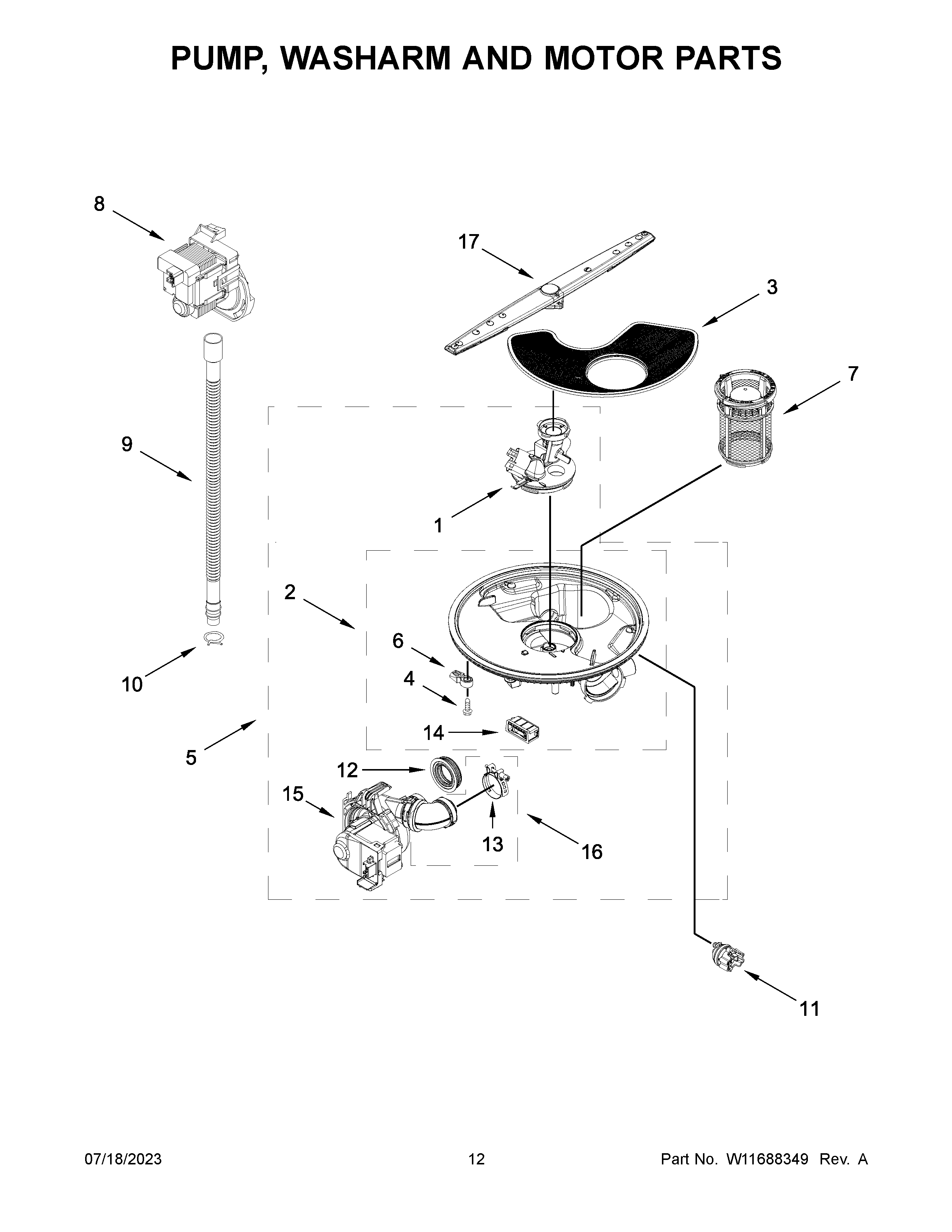

WDT540HAMZ4 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	WPW10455271 Whirlpool Cover
2	WPW10482462 Whirlpool Dishwasher Sump Assembly
3	WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4	WPW10348407 Whirlpool Dishwasher Screw
5	PUMP&MOTOR
6	WPW10372113 Whirlpool Dishwasher Sump Tab
7	W10872845 Whirlpool Dishwasher Filter Cup Trap
8	W10876537 Whirlpool Dishwasher Drain Pump
9	8269144A Whirlpool Dishwasher Drain Hose
10	WP285655 Whirlpool Hose Clamp
11	W11612329 Whirlpool Sensor Assembly
12	WPW10538166 Whirlpool Grommet Pump
13	WP8269146 Whirlpool Dishwasher Clamp
14	W11243394 Whirlpool Dishwasher Support
15	WASH PUMP
16	W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
17	ARM-SPRAY
