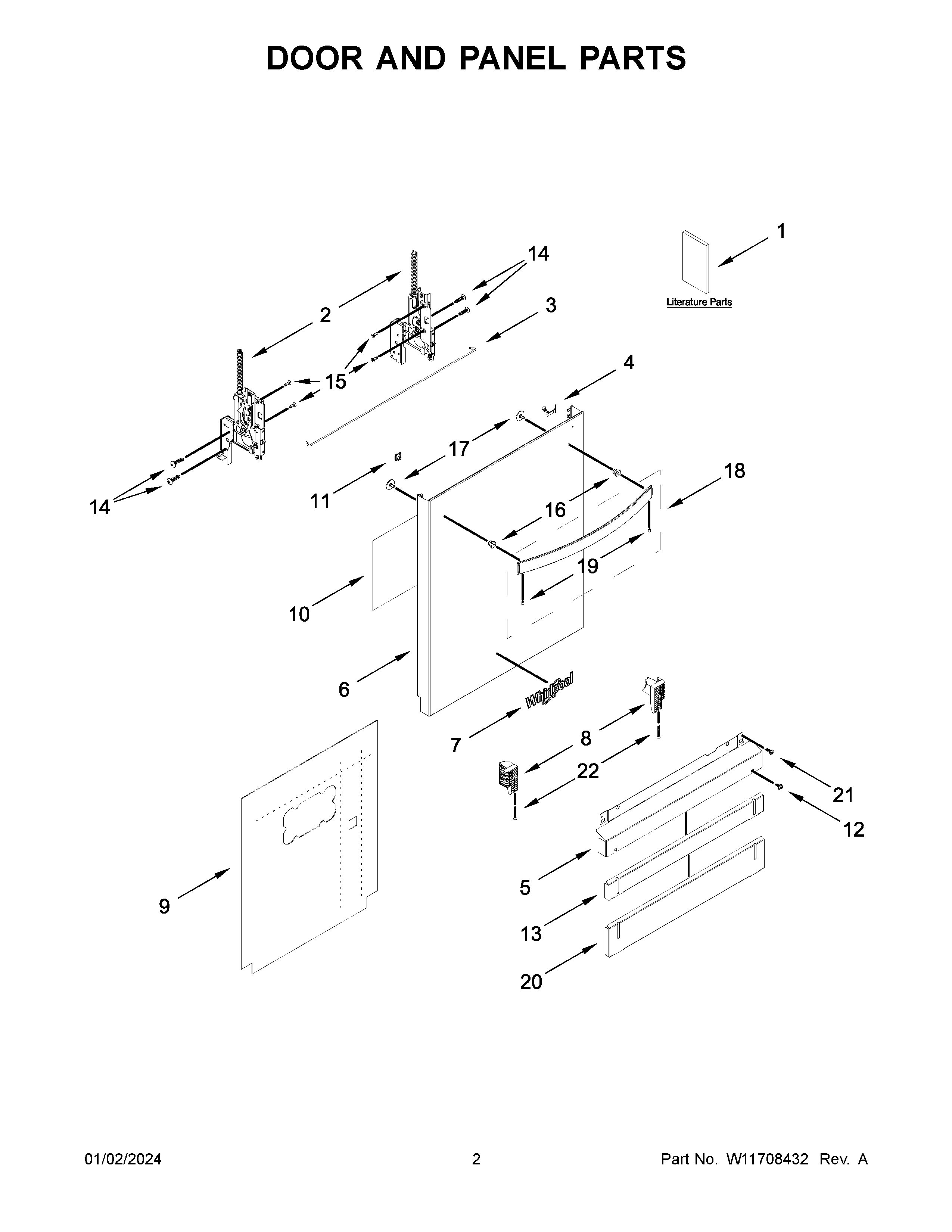

WDT550SAPB0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1B	TECH SHEET
1A	ENERGY GUIDE
1	OWNERS MANUAL
2	ARM, HINGE (LEFT HAND)
2A	ARM, HINGE (RIGHT HAND)
3	CROSS BRACE, DOOR
4	W11102920 Whirlpool Indicator Light
5	PANEL, MAIN ACCESS (BLACK)
6A	PANEL
6B	W11690651 Whirlpool Panel Assembly
6	W11690816 Whirlpool Panel
7	W11178521 Whirlpool Dishwasher Nameplate
8A	SUPPORT, DOOR (RIGHT)
8	SUPPORT, DOOR (LEFT)
9	INSULATION, INNER DOOR
10	INSULATION, FRONT PANEL
11	NUT, BARREL
12	WP302868 Whirlpool Screw
13	PANEL, 2" ADJUSTABLE (BLACK)
14	SCREW
15	SCREW
16	W11157086 Whirlpool Dishwasher Door Handle Stud
17	W10826179 Whirlpool Dishwasher Screw
18B	W11685315 Whirlpool Handle
18	W11572098 Whirlpool Handle
19	W10907991 Whirlpool Screw
20	PANEL, 4" ADJUSTABLE (BLACK)
21	SCREW
22	SCREW
