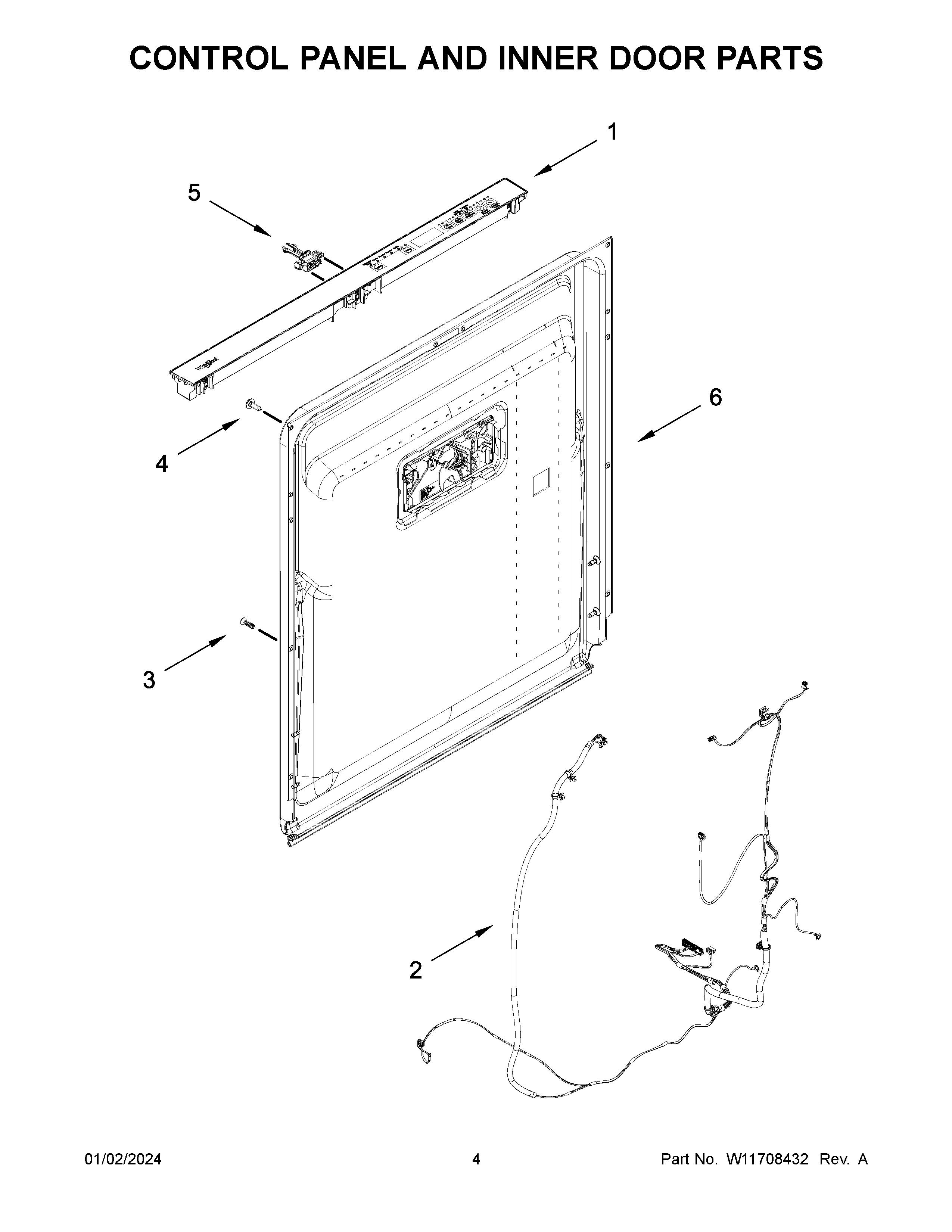

WDT550SAPW0 03 – CONTROL PANEL AND INNER DOOR PARTS

WDT550SAPW0 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

WDT550SAPW0 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11693637-includeCORE Whirlpool Console+Core
1AW11693748-includeCORE Whirlpool W11693748 Console
2WIRING HARNESS, INNER DOOR
3SCREW
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6INNER DOOR ASSEMBLY (INCLUDES SOAP DISPENSER)
