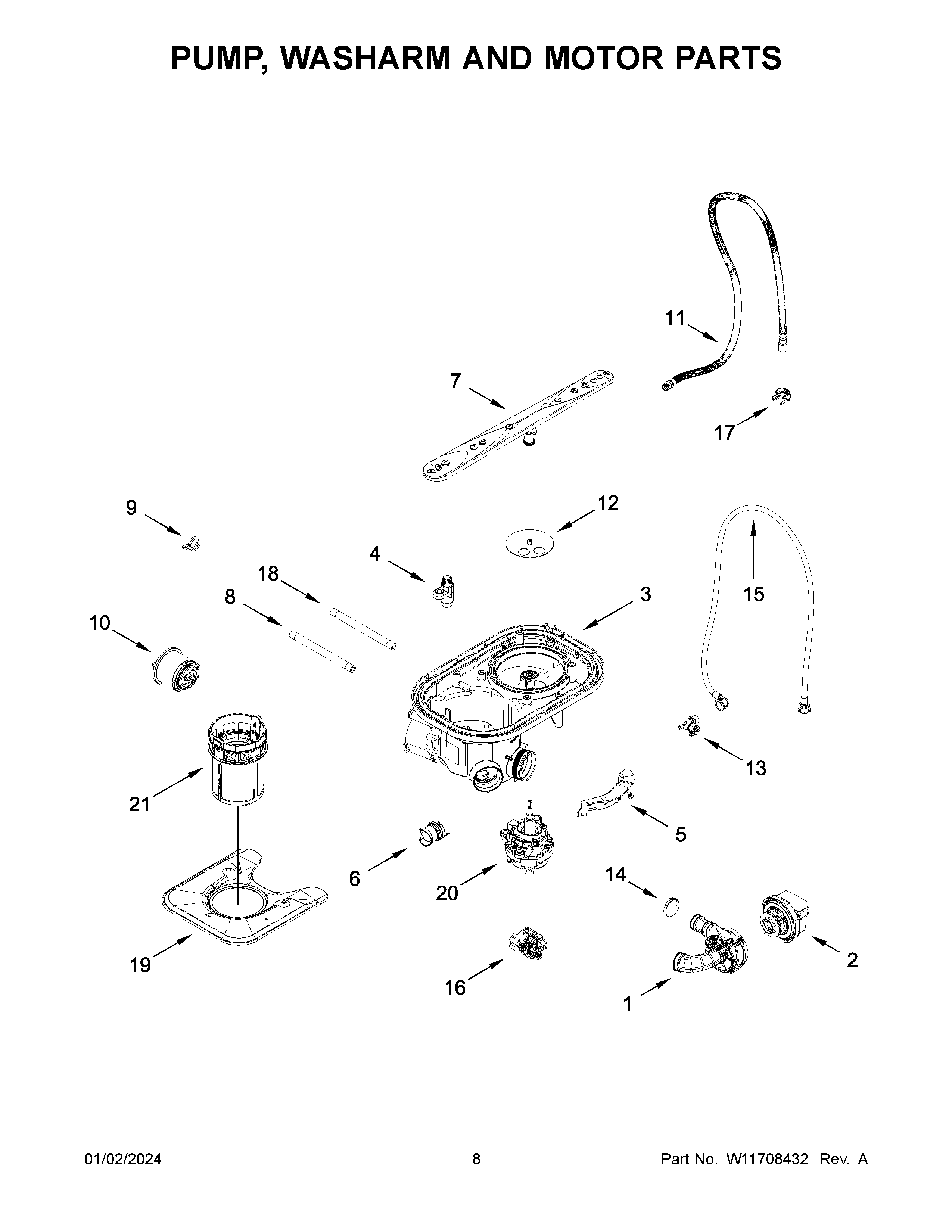

WDT550SAPW0 05 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	W11690626 Whirlpool Heat Pump
2	MOTOR, PUMP
3	SUMP (INCLUDES SEAL)
4	DRAIN VENT ASSEMBLY
5	DIFFUSER, INLET
6	CHECK VALVE, DRAIN
7	ARM-SPRAY
8	HOSE, PUMP INLET
9	WP596669 Whirlpool Hose Clamp
10	PUMP-DRAIN
11	W11693602 Whirlpool Drain Hose
12	DISC, DIVERTER
13	FILL VALVE ASSEMBLY
14	W10783615 Whirlpool Dishwasher Clamp
15	HOSE, INLET
16	W11410464 Whirlpool Sensor
17	CLIP, HOSE
18	HOSE, INLET
19	GRATE
20	MOTOR
21	FILTER
