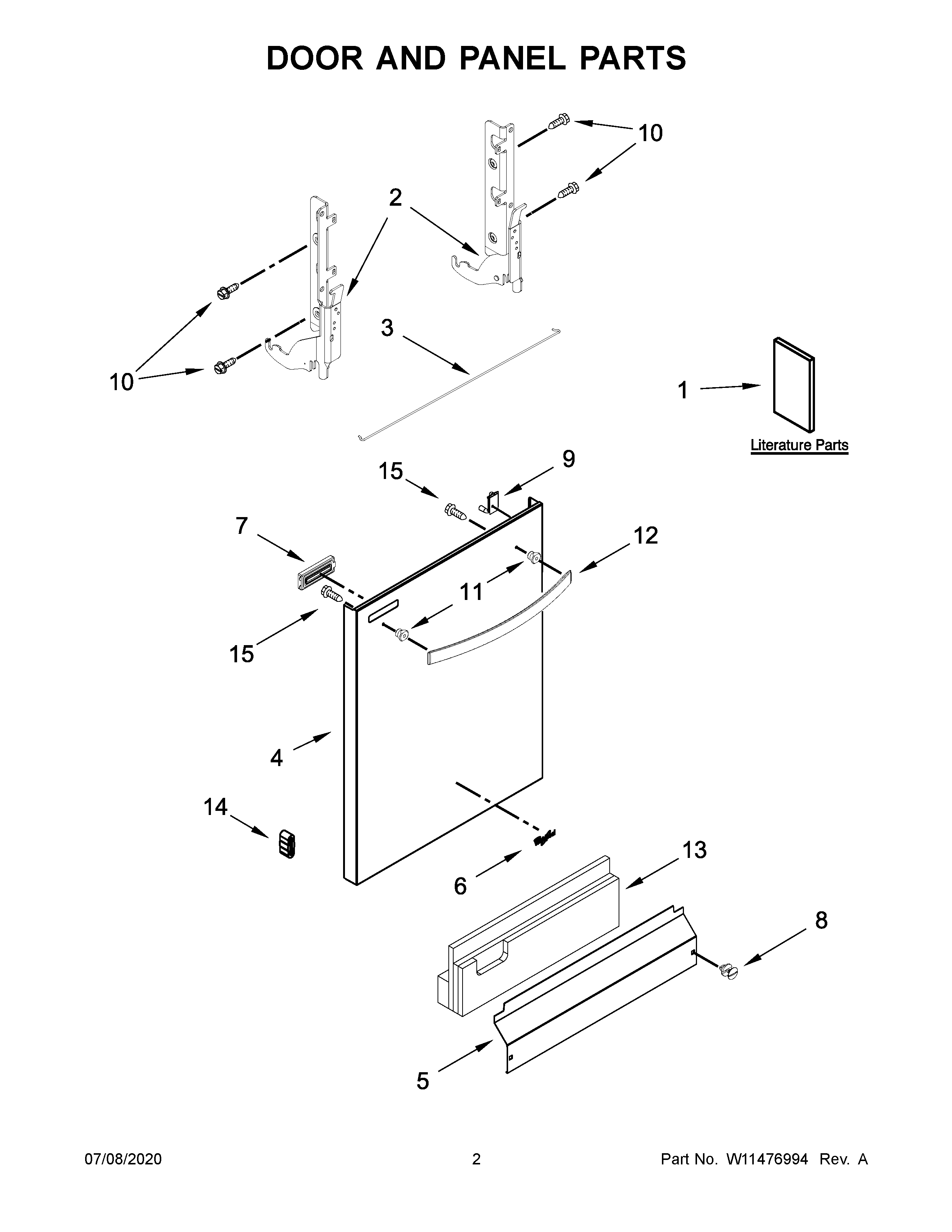

WDT705PAKB0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNERS MANUAL
1B	TECH SHEET
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4A	W11116419 Whirlpool Dishwasher Panel
4B	W11116420 Whirlpool Dishwasher Panel
4	W11116418 Whirlpool Dishwasher Panel
5A	WPW10441007 Whirlpool Dishwasher Panel
5	PANEL
6	W11178521 Whirlpool Dishwasher Nameplate
7A	W11105960 Whirlpool Dishwasher Vent Grille
7B	W11105958 Whirlpool Grill Vent
7	W11105961 Whirlpool Vent Grill
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8A	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	W11036316 Whirlpool Dishwasher Indicator Light
10	WPW10109200 Whirlpool Screw
11	W11157086 Whirlpool Dishwasher Door Handle Stud
12	W11572098 Whirlpool Handle
12B	W11685315 Whirlpool Handle
13	SHIELD
14	WP8268961 Whirlpool Friction Pad
15	W10826179 Whirlpool Dishwasher Screw
