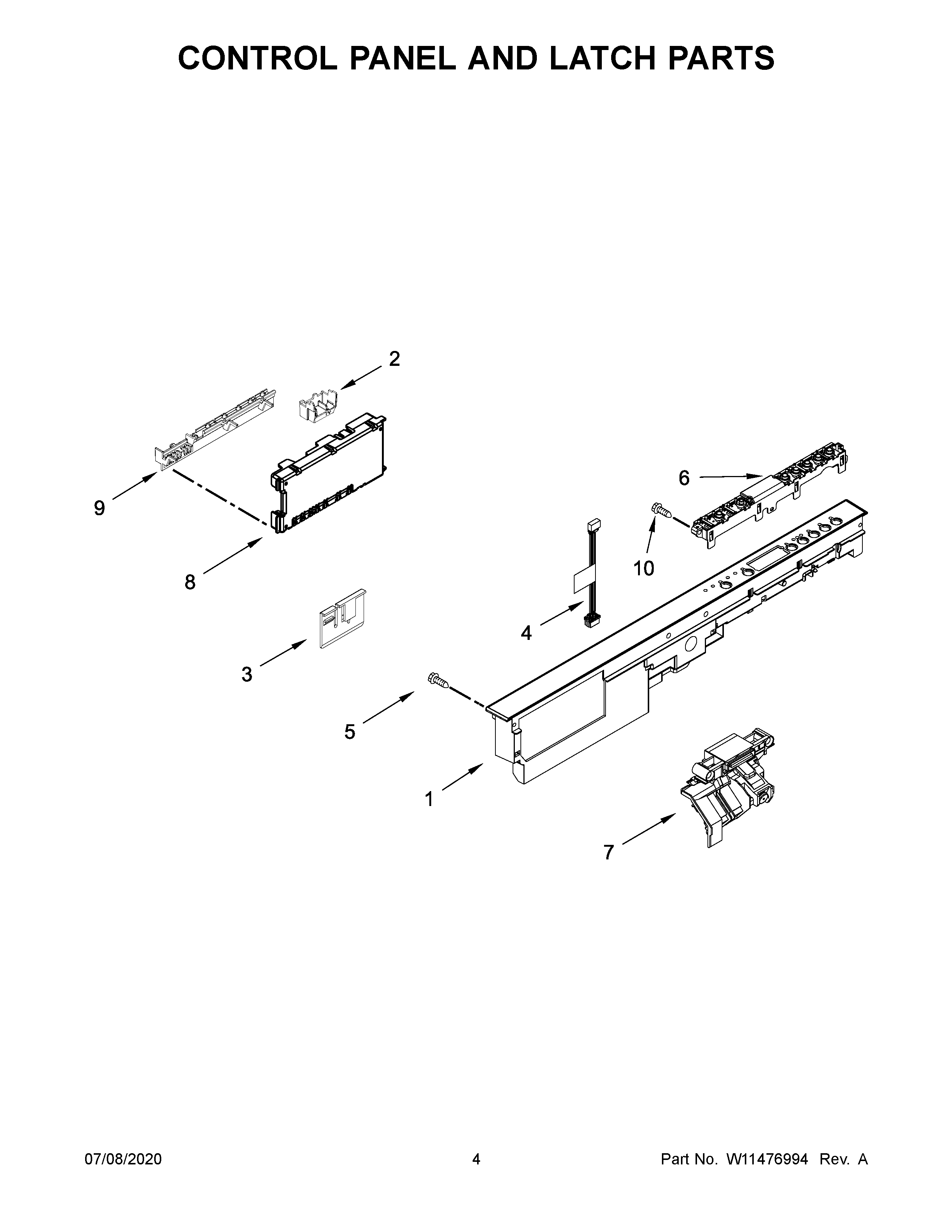

WDT705PAKB0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11116422 Whirlpool Dishwasher Control Panel
3W11256107 Whirlpool Dishwasher Clip
4W11028004 Whirlpool Dishwasher Wire
5W11096645 Whirlpool Screw
6W11651612 Whirlpool User Interface Housing
7WPW10653840 Whirlpool Door Latch
8W11306302 Whirlpool Dishwasher Electronic Control Board
9W11305293 Whirlpool Dishwasher Electronic Control Board
10WPW10177098 Whirlpool Dishwasher Screw
