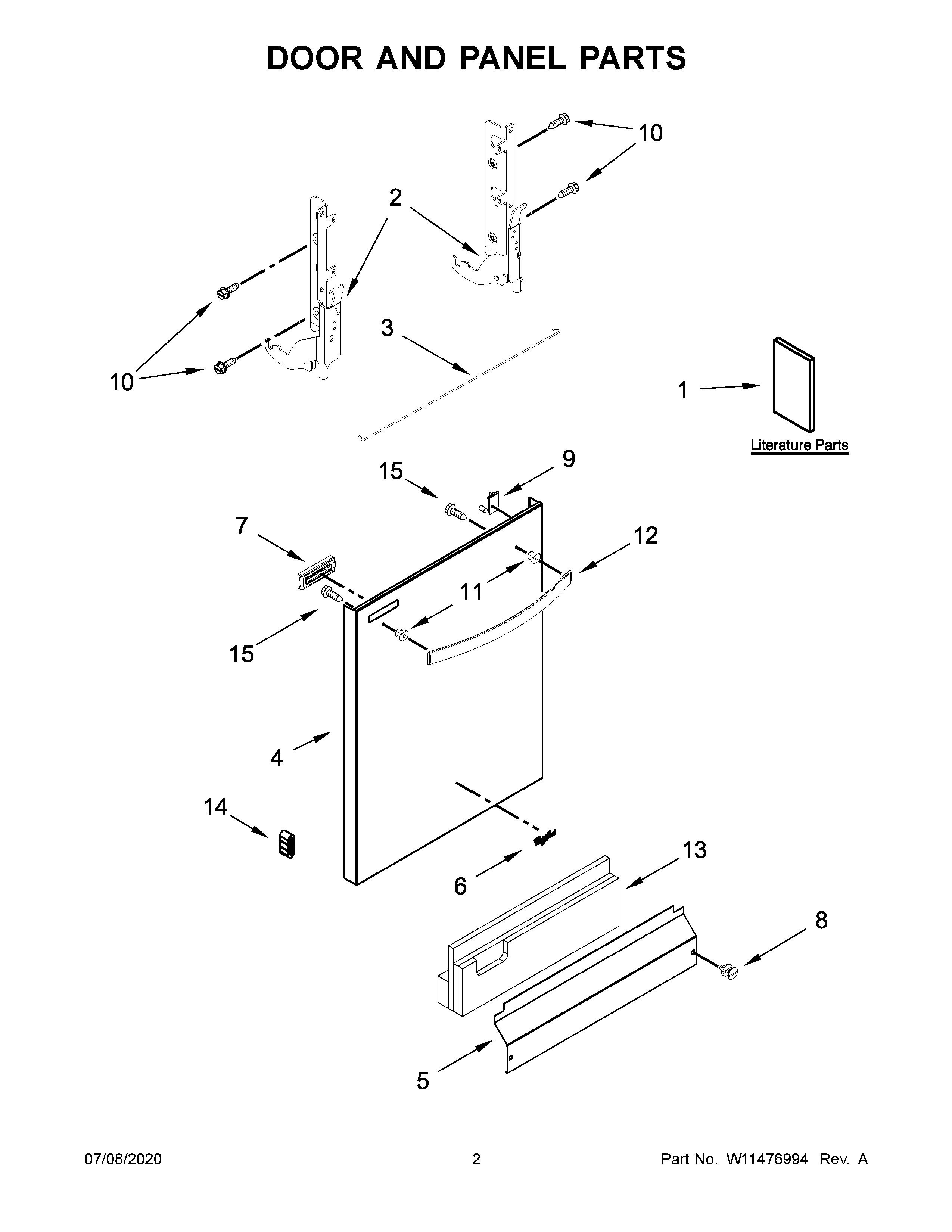

WDT705PAKZ0 02 – DOOR AND PANEL PARTS

WDT705PAKZ0 02 – DOOR AND PANEL PARTS

Written by

in

WDT705PAKZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNERS MANUAL
1BTECH SHEET
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4AW11116419 Whirlpool Dishwasher Panel
4BW11116420 Whirlpool Dishwasher Panel
4W11116418 Whirlpool Dishwasher Panel
5AWPW10441007 Whirlpool Dishwasher Panel
5PANEL
6W11178521 Whirlpool Dishwasher Nameplate
7AW11105960 Whirlpool Dishwasher Vent Grille
7BW11105958 Whirlpool Grill Vent
7W11105961 Whirlpool Vent Grill
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9W11036316 Whirlpool Dishwasher Indicator Light
10WPW10109200 Whirlpool Screw
11W11157086 Whirlpool Dishwasher Door Handle Stud
12W11572098 Whirlpool Handle
12BW11685315 Whirlpool Handle
13SHIELD
14WP8268961 Whirlpool Friction Pad
15W10826179 Whirlpool Dishwasher Screw
