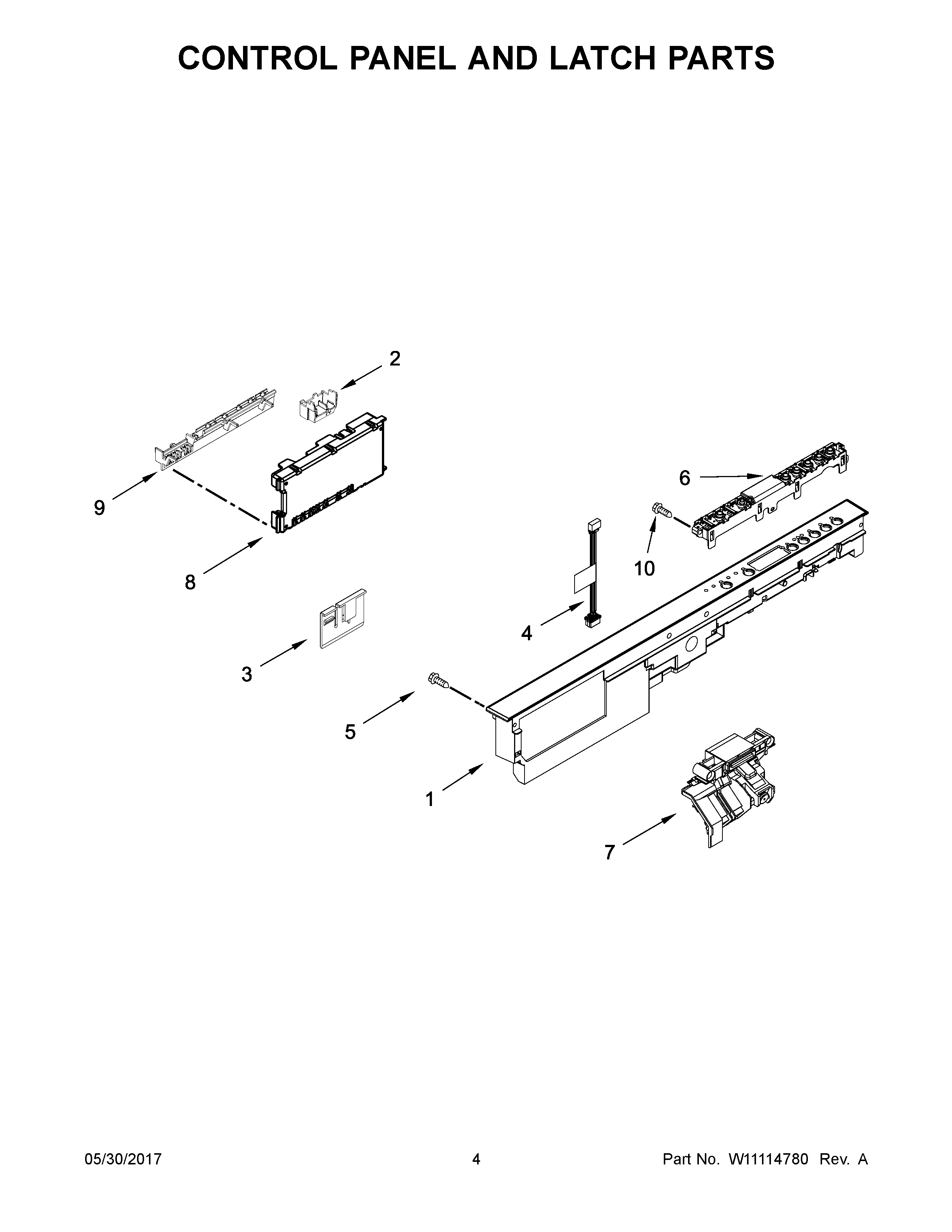

WDT710PAHB0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11116422 Whirlpool Dishwasher Control Panel
2W10783730 Whirlpool Dishwasher Connector
3W11256107 Whirlpool Dishwasher Clip
4W11028004 Whirlpool Dishwasher Wire
5W11232015 Whirlpool Dishwasher Screw
6W11049159 Whirlpool Dishwasher User Interface Housing
7WPW10653840 Whirlpool Door Latch
8W11109156-includeCORE Whirlpool W11109156 Dishwasher Electronic Control Board + Core
9WPW10194937 Whirlpool Dishwasher Control Bracket
10WPW10177098 Whirlpool Dishwasher Screw
