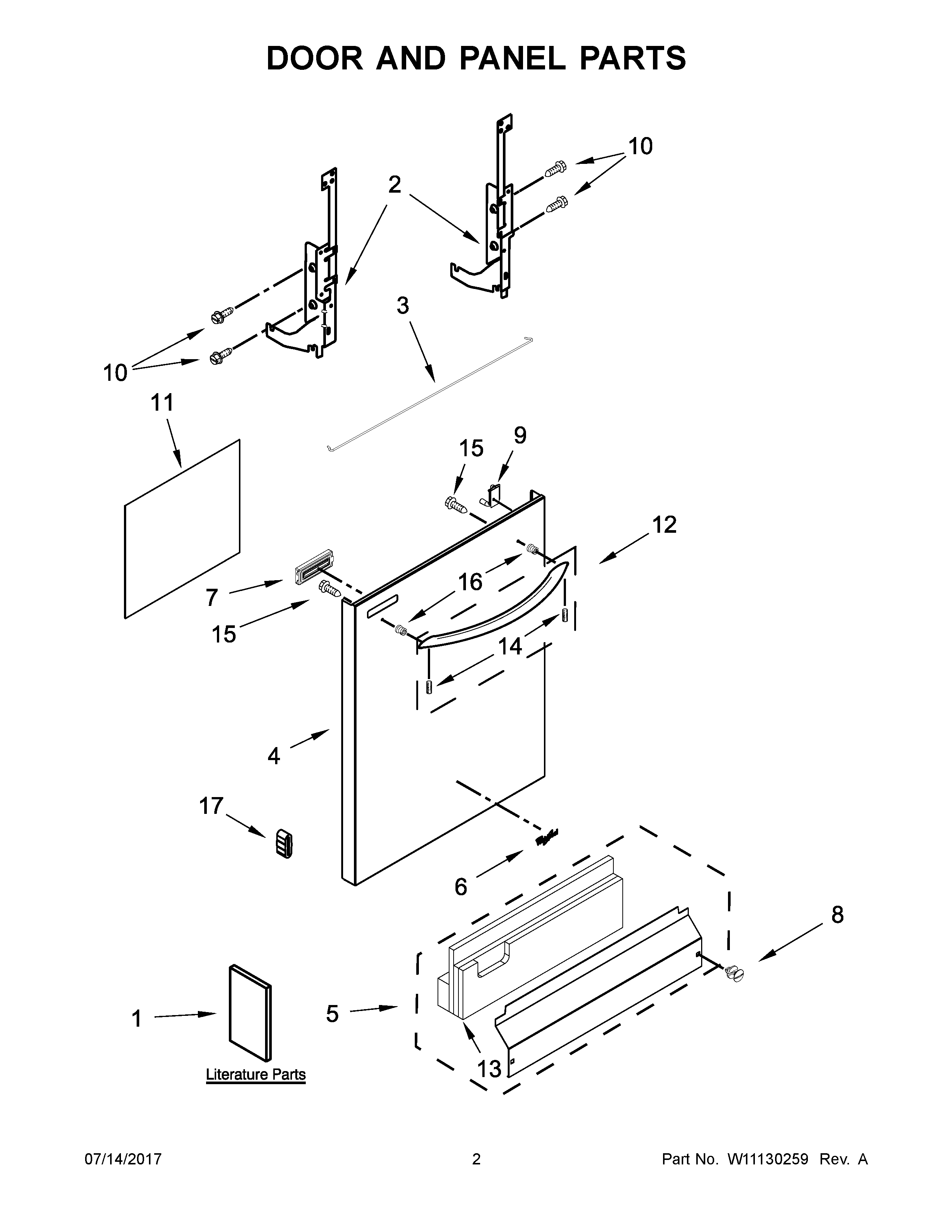

WDT710PAHB1 02 – DOOR AND PANEL PARTSadmin2025-04-26T13:05:36+00:00WDT710PAHB1 02 – DOOR AND PANEL PARTS ProductsPositionProduct1INSTALLATION INSTRUCTIONS1CTECH SHEET1AENERGY GUIDE1BUSE & CARE GUIDE2W11613573 Whirlpool Door Hinge2AW11613572 Whirlpool Dishwasher Door Hinge3W10850371 Whirlpool Dishwasher Door Brace4W11116418 Whirlpool Dishwasher Panel4AW11116419 Whirlpool Dishwasher Panel4BW11116420 Whirlpool Dishwasher Panel5WPW10526114 Whirlpool Dishwasher Access Panel5AWPW10526115 Whirlpool Dishwasher Panel6W11178521 Whirlpool Dishwasher Nameplate7W11105961 Whirlpool Vent Grill7AW11105960 Whirlpool Dishwasher Vent Grille7BW11105958 Whirlpool Grill Vent8AWPW10503549 Whirlpool Dishwasher Retainer Clip8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip9W11036316 Whirlpool Dishwasher Indicator Light10WPW10109200 Whirlpool Screw11W11126003 Whirlpool Dishwasher Insulation Pad12W10907189 Whirlpool Dishwasher Handle12BW11685315 Whirlpool Handle13SHIELD14W10907991 Whirlpool Screw15W10826179 Whirlpool Dishwasher Screw16W11157086 Whirlpool Dishwasher Door Handle Stud17WP8268961 Whirlpool Friction Pad
