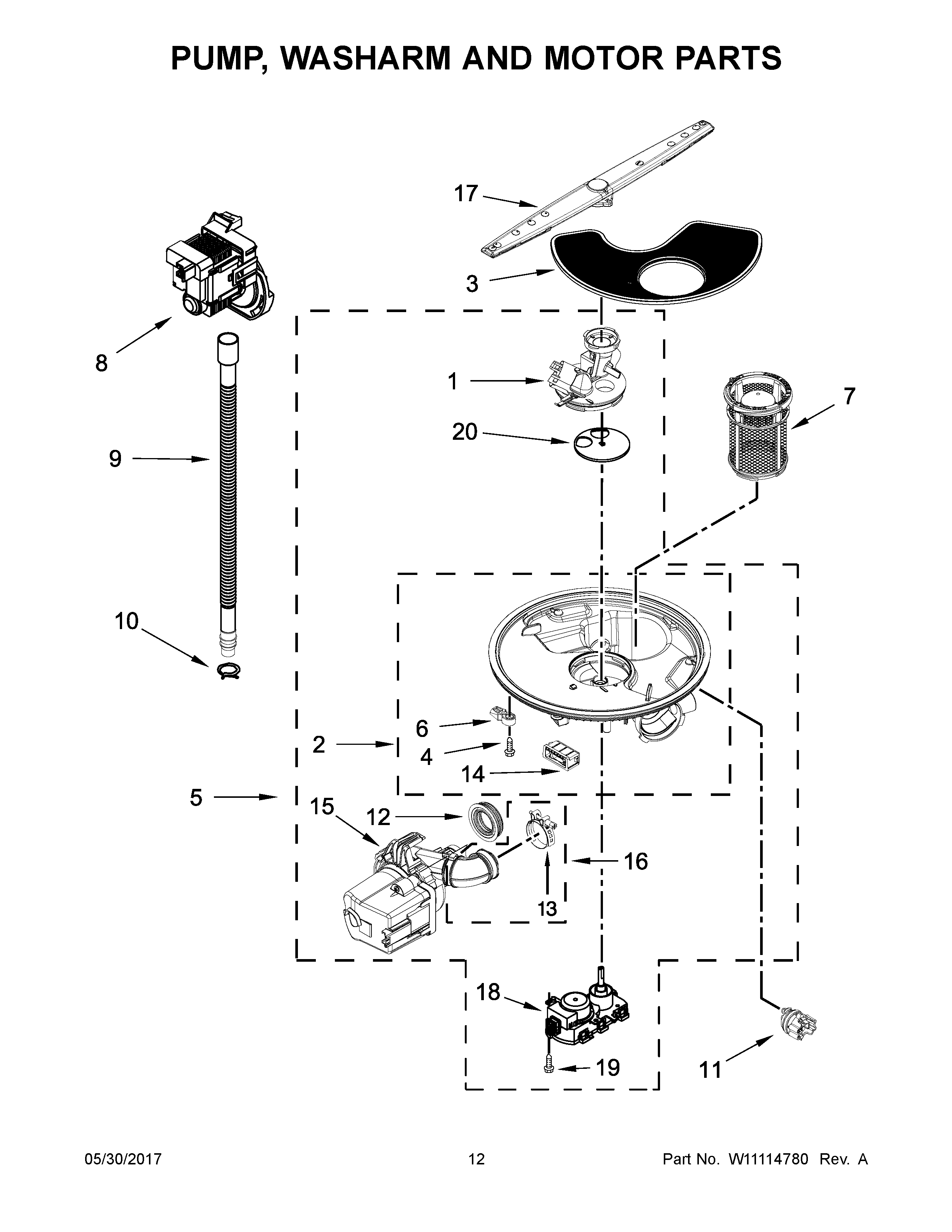

WDT710PAHW0 07 – PUMP, WASHARM AND MOTOR PARTS

WDT710PAHW0 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

WDT710PAHW0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1WPW10455271 Whirlpool Cover
2WPW10455268 Whirlpool Sump
3WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4WPW10348407 Whirlpool Dishwasher Screw
5WPW10605057 Whirlpool Dishwasher Pump and Motor Assembly
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8W10876537 Whirlpool Dishwasher Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10WP285655 Whirlpool Hose Clamp
11W11084121 Whirlpool Sensor Turbidity
12WPW10538166 Whirlpool Grommet Pump
13W10789434 Whirlpool Dishwasher Hose Clamp
14W11243394 Whirlpool Dishwasher Support
15W11032770 Whirlpool Dishwasher Circulation Pump & Motor
16W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
17ARM-SPRAY
18W10537869 Whirlpool Dishwasher Motor
19WP9741232 Whirlpool Dishwasher Screw
20WPW10476221 Whirlpool Dishwasher Diffuser
