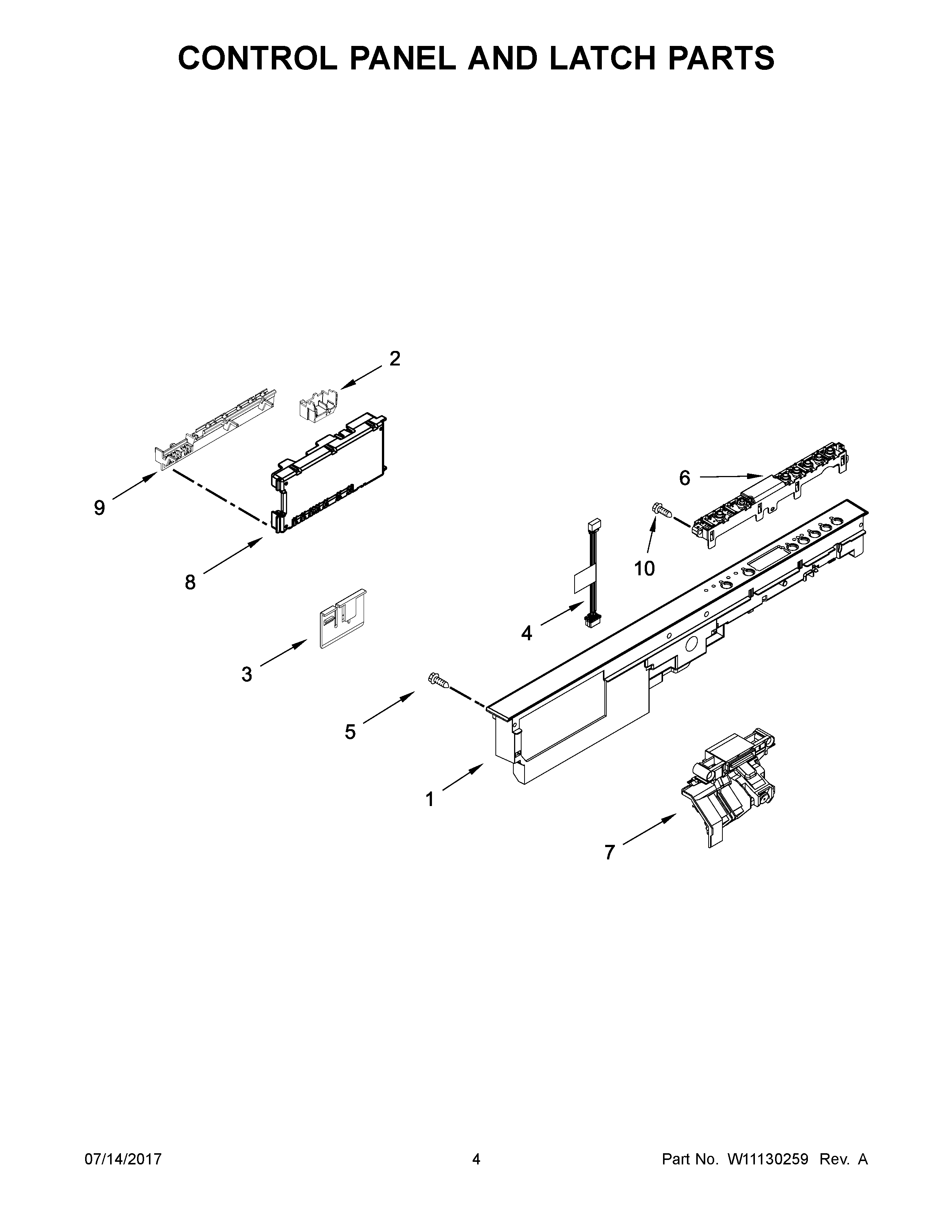

WDT710PAHW1 03 – CONTROL PANEL AND LATCH PARTS

WDT710PAHW1 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDT710PAHW1 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11116422 Whirlpool Dishwasher Control Panel
3W11256107 Whirlpool Dishwasher Clip
4W11028004 Whirlpool Dishwasher Wire
5W11232015 Whirlpool Dishwasher Screw
6W11402115 Whirlpool User Control and Display Board
7WPW10653840 Whirlpool Door Latch
8W11306302 Whirlpool Dishwasher Electronic Control Board
9W11305293 Whirlpool Dishwasher Electronic Control Board
10WPW10177098 Whirlpool Dishwasher Screw
