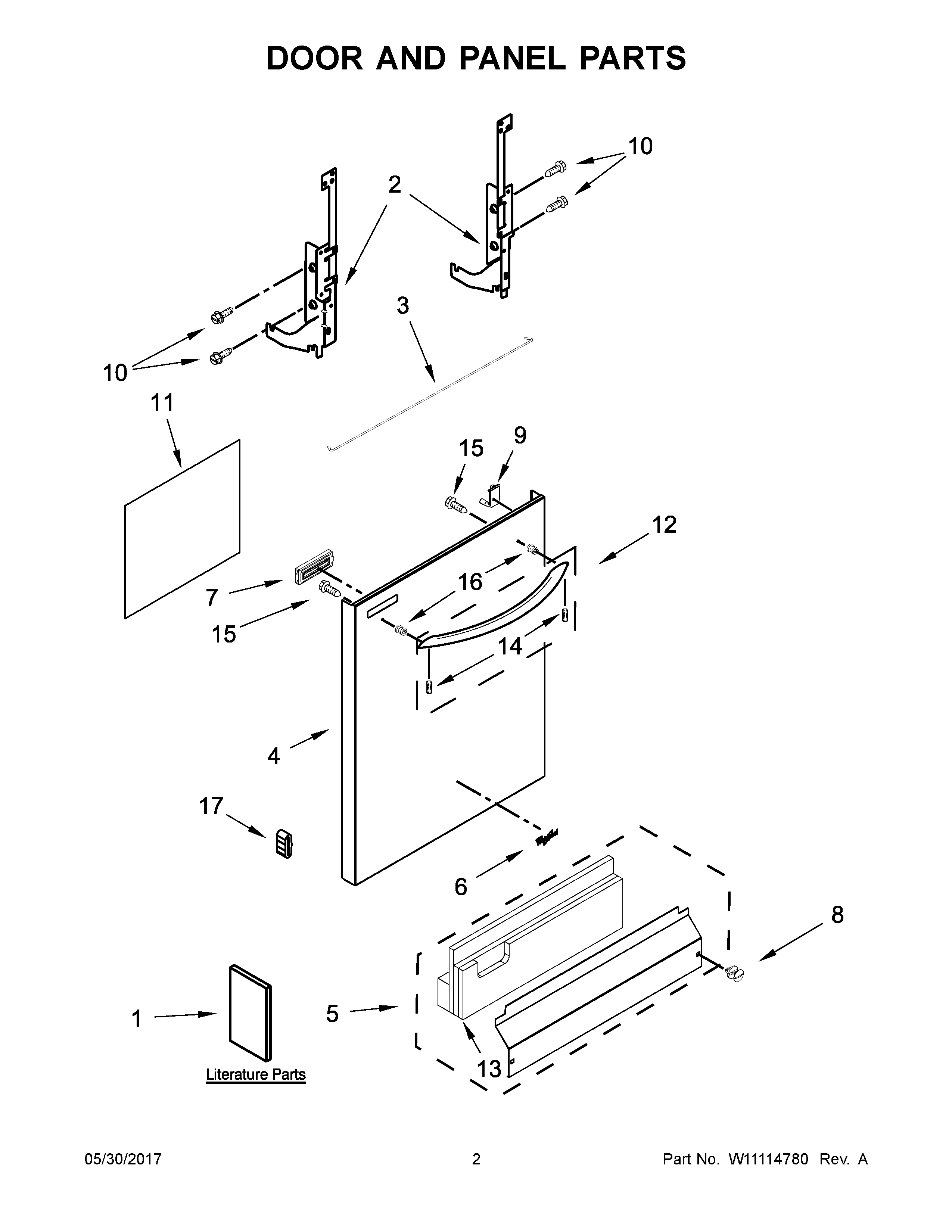

WDT710PAHZ0 02 – DOOR AND PANEL PARTS

WDT710PAHZ0 02 – DOOR AND PANEL PARTS

Written by

in

WDT710PAHZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET, ENGLISH
1INSTALLATION INSTRUCTIONS
1AENERGY GUIDE
1BUSE & CARE GUIDE
1DTECH SHEET, FRENCH
2AW11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W11116418 Whirlpool Dishwasher Panel
4AW11116419 Whirlpool Dishwasher Panel
4BW11116420 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
5AWPW10526115 Whirlpool Dishwasher Panel
6W11178521 Whirlpool Dishwasher Nameplate
7W11105961 Whirlpool Vent Grill
7AW11105960 Whirlpool Dishwasher Vent Grille
7BW11105958 Whirlpool Grill Vent
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9W11036316 Whirlpool Dishwasher Indicator Light
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W10907189 Whirlpool Dishwasher Handle
12BW11685315 Whirlpool Handle
13SHIELD
14W10907991 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17WP8268961 Whirlpool Friction Pad
