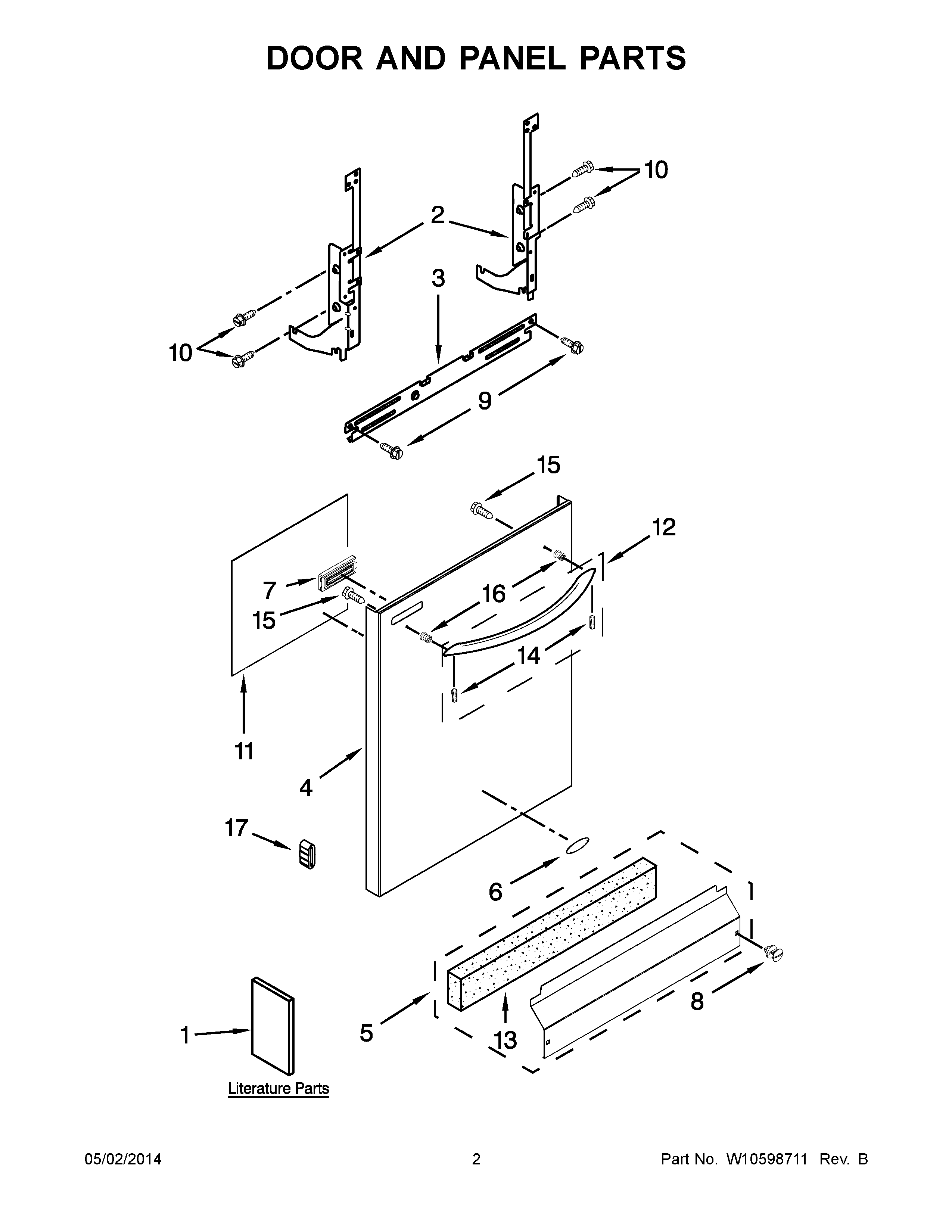

WDT710PAYH4 02 – DOOR AND PANEL PARTS

WDT710PAYH4 02 – DOOR AND PANEL PARTS

Written by

in

WDT710PAYH4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET, ENGLISH
1ENERGY GUIDE
1USE & CARE GUIDE, ENGLISH/FRENCH
1INSTALLATION, INSTRUCTIONS
1TECH SHEET, FRENCH
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL FRONT (INCLUDES 6, 7, 15 & 16) (WHITE)
4PANEL FRONT (INCLUDES 6, 7, 15 & 16) (BLACK)
4PANEL FRONT (INCLUDES 6, 7, 15 & 16) (STAINLESS)
5W10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
6W11178521 Whirlpool Dishwasher Nameplate
7VENT (BLACK)
7VENT (WHITE)
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W10873052 Whirlpool Dishwasher Handle
12W10873050 Whirlpool Dishwasher Handle
12HANDLE (STAINLESS)
13SHIELD
14WP8534008 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17WP8268961 Whirlpool Friction Pad
