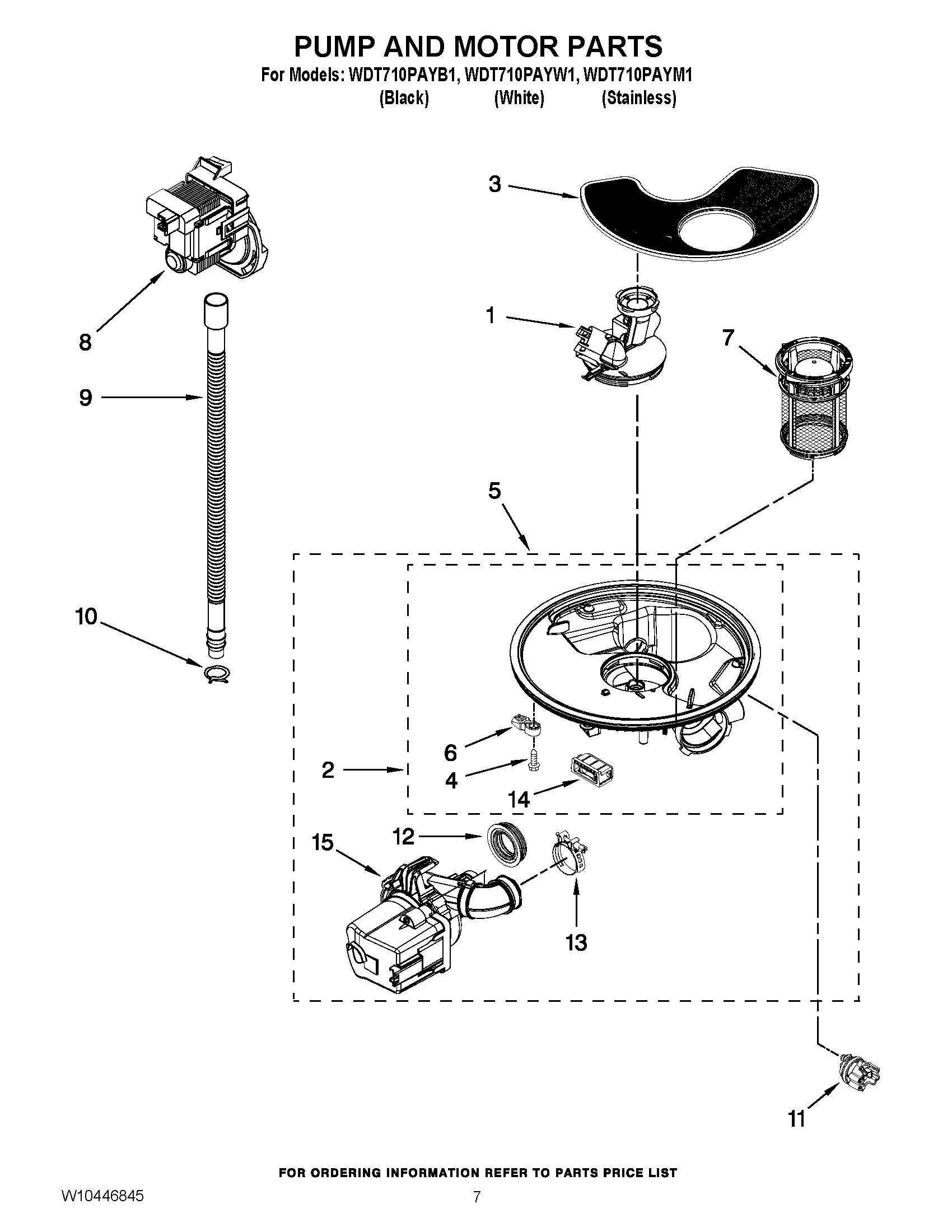

WDT710PAYM1 06 – PUMP AND MOTOR PARTS

WDT710PAYM1 06 – PUMP AND MOTOR PARTS

Written by

in

WDT710PAYM1 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
1WPW10455271 Whirlpool Cover
2WPW10482462 Whirlpool Dishwasher Sump Assembly
3WPW10354786 Whirlpool Dishwasher Screen
4WPW10348407 Whirlpool Dishwasher Screw
5WPW10605059 Whirlpool Dishwasher Pump and Motor
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8WPW10348269 Whirlpool Washer Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10WP285655 Whirlpool Hose Clamp
11WPW10705575 Whirlpool Dishwasher Sensor
12WPW10538166 Whirlpool Grommet Pump
13W10789434 Whirlpool Dishwasher Hose Clamp
14W11243394 Whirlpool Dishwasher Support
15W11133712 Whirlpool Dishwasher Pump Motor
