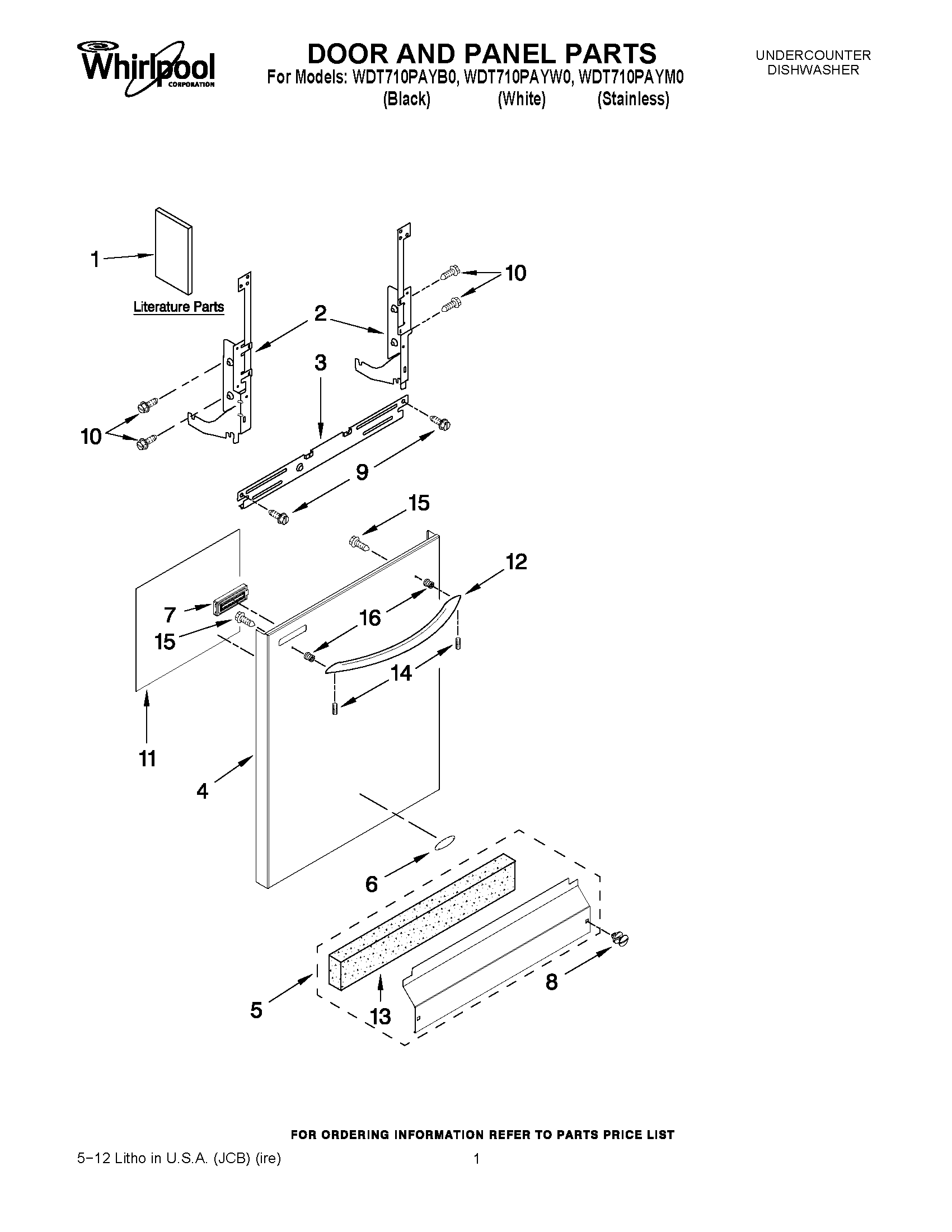

WDT710PAYW0 01 – DOOR AND PANEL PARTS

WDT710PAYW0 01 – DOOR AND PANEL PARTS

Written by

in

WDT710PAYW0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1USE & CARE GUIDE, ENGLISH/FRENCH
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3STIFFENER, DOOR
4PANEL FRONT (INCLUDES 6, 7, 15 & 16) (WHITE)
4PANEL FRONT (INCLUDES 6, 7, 15 & 16) (BLACK)
4PANEL FRONT (INCLUDES 6, 7, 15 & 16) (STAINLESS)
5W10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
7GRILL, VENT (BLACK)
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W10873052 Whirlpool Dishwasher Handle
12HANDLE (STAINLESS)
12W10873050 Whirlpool Dishwasher Handle
13SHIELD
14WP8534008 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
