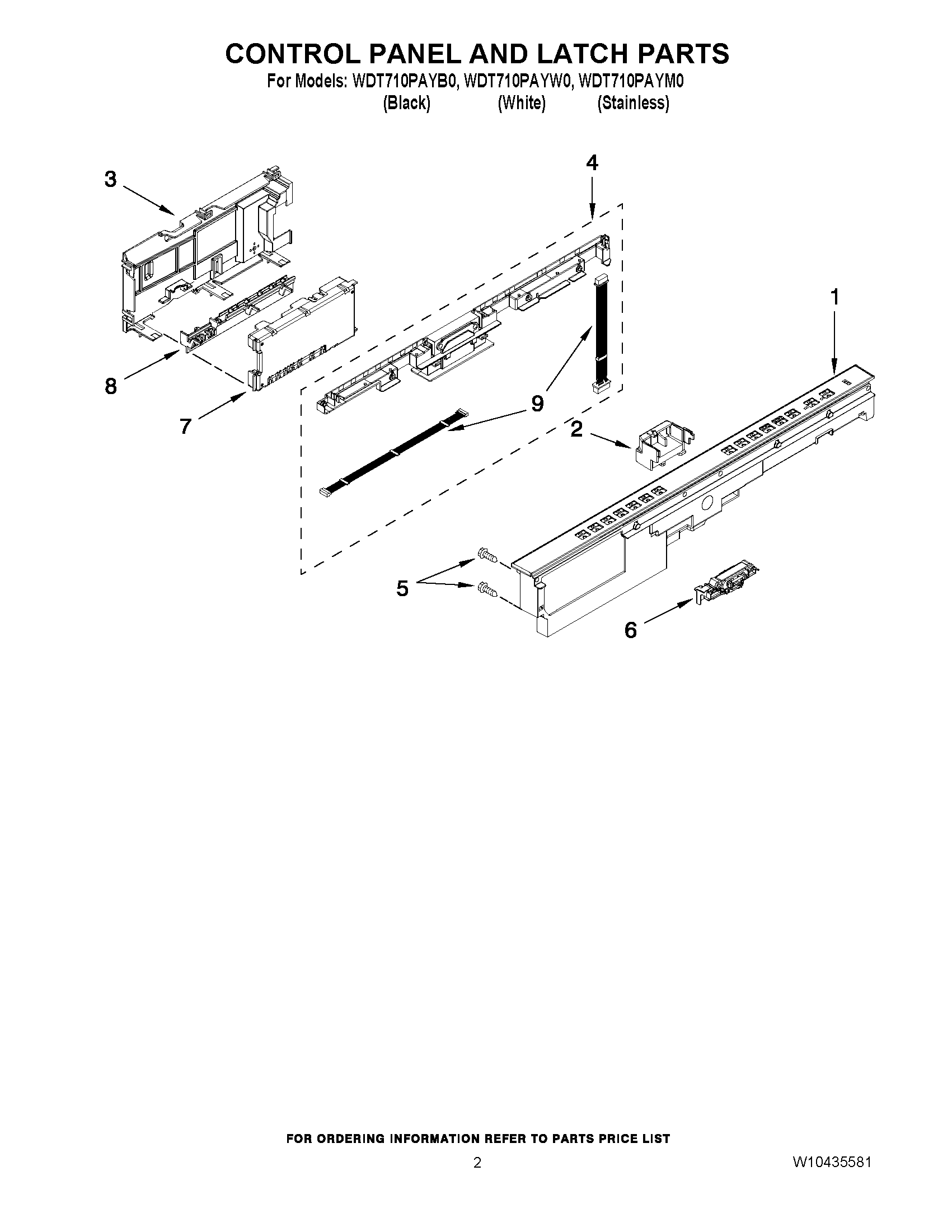

WDT710PAYW0 02 – CONTROL PANEL AND LATCH PARTS

WDT710PAYW0 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDT710PAYW0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10380065 Whirlpool Control Panel
1WPW10380064 Whirlpool Dishwasher Control Panel
1WPW10380063 Whirlpool Dishwasher Control Panel
2W10783730 Whirlpool Dishwasher Connector
3COVER CONTROL SHIELD ASSEMBLY
4WPW10629158 Whirlpool Dishwasher UI Housing
5WPW10177098 Whirlpool Dishwasher Screw
6W10619006 Whirlpool Door Latch
7W10479763 Whirlpool Control Board
8WPW10194937 Whirlpool Dishwasher Control Bracket
9W10347251 Whirlpool Dishwasher Wire
9W10300781 Whirlpool Dishwasher Wire
