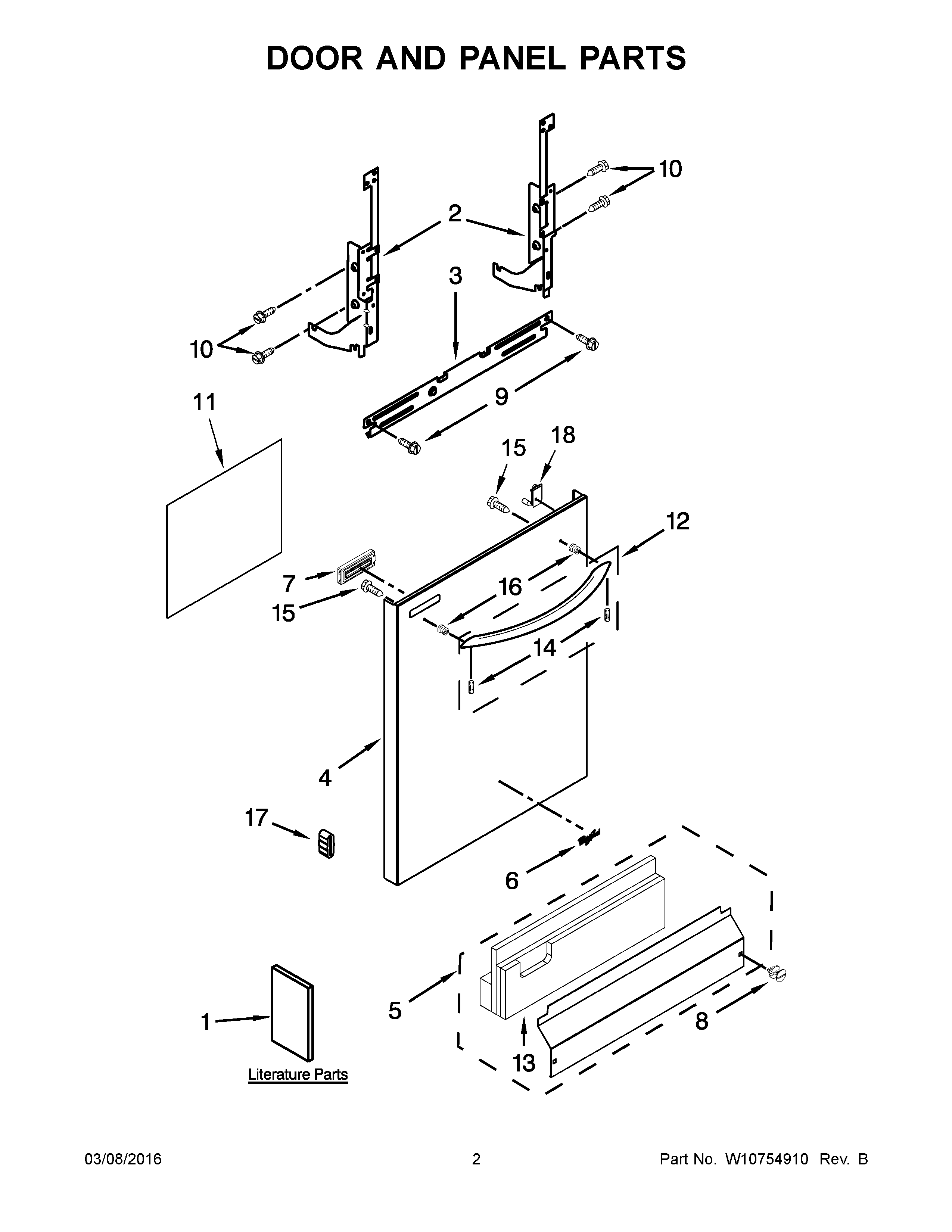

WDT720PADB1 02 – DOOR AND PANEL PARTS

WDT720PADB1 02 – DOOR AND PANEL PARTS

Written by

in

WDT720PADB1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1DTECH SHEET, FRENCH
1INSTALLATION INSTRUCTIONS
1CTECH SHEET, ENGLISH
1BUSE & CARE GUIDE
2W11613573 Whirlpool Door Hinge
2AW11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BWPW10644292 Whirlpool Dishwasher Panel
4W10814587 Whirlpool Dishwasher Control Panel
4APANEL, FRONT (INCLUDES 6, 7, 9, 15 & 16) (WHITE)
5AWPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
6AW11178521 Whirlpool Dishwasher Nameplate
7BW10620291 Whirlpool Vent Grille
7AW10620289 Whirlpool Dishwasher Vent Grill
7W10620288 Whirlpool Dishwasher Vent Grill
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W10873050 Whirlpool Dishwasher Handle
12AW10873052 Whirlpool Dishwasher Handle
12BW11028176 Whirlpool Dishwasher Handle
13SHIELD
14W10907991 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17WP8268961 Whirlpool Friction Pad
18W10500331 Whirlpool Dishwasher Indicator Light
