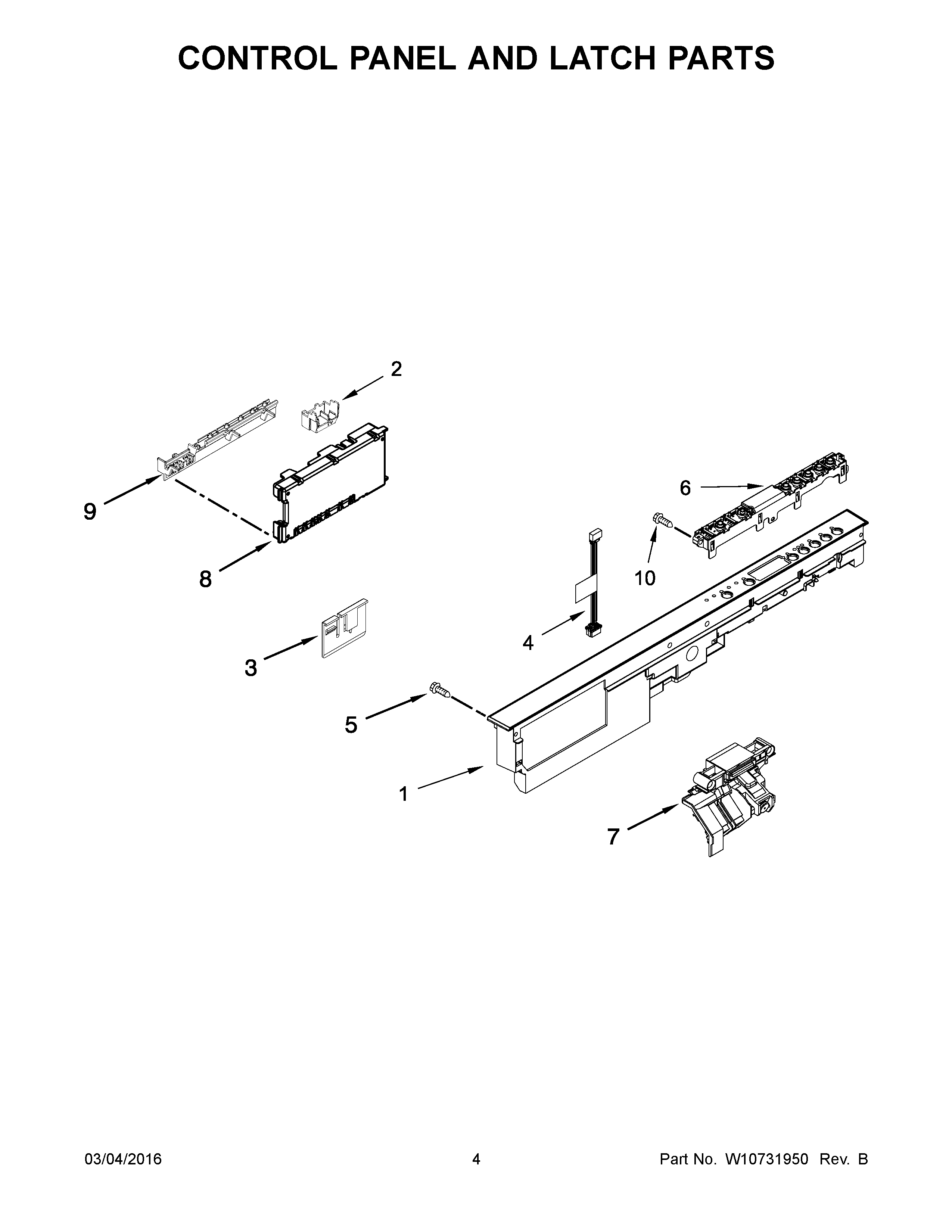

WDT720PADE0 03 – CONTROL PANEL AND LATCH PARTS

WDT720PADE0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDT720PADE0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW10815487 Whirlpool Dishwasher Control Panel
1W10838676 Whirlpool Dishwasher Control Panel
1AW10861747 Whirlpool Dishwasher Control Panel
2W10783730 Whirlpool Dishwasher Connector
3W11256107 Whirlpool Dishwasher Clip
4W11028004 Whirlpool Dishwasher Wire
5W11232015 Whirlpool Dishwasher Screw
6W10917737 Whirlpool Interface Housing
7WPW10653840 Whirlpool Door Latch
8W10751502 Whirlpool Control Board
9WPW10194937 Whirlpool Dishwasher Control Bracket
10WPW10177098 Whirlpool Dishwasher Screw
