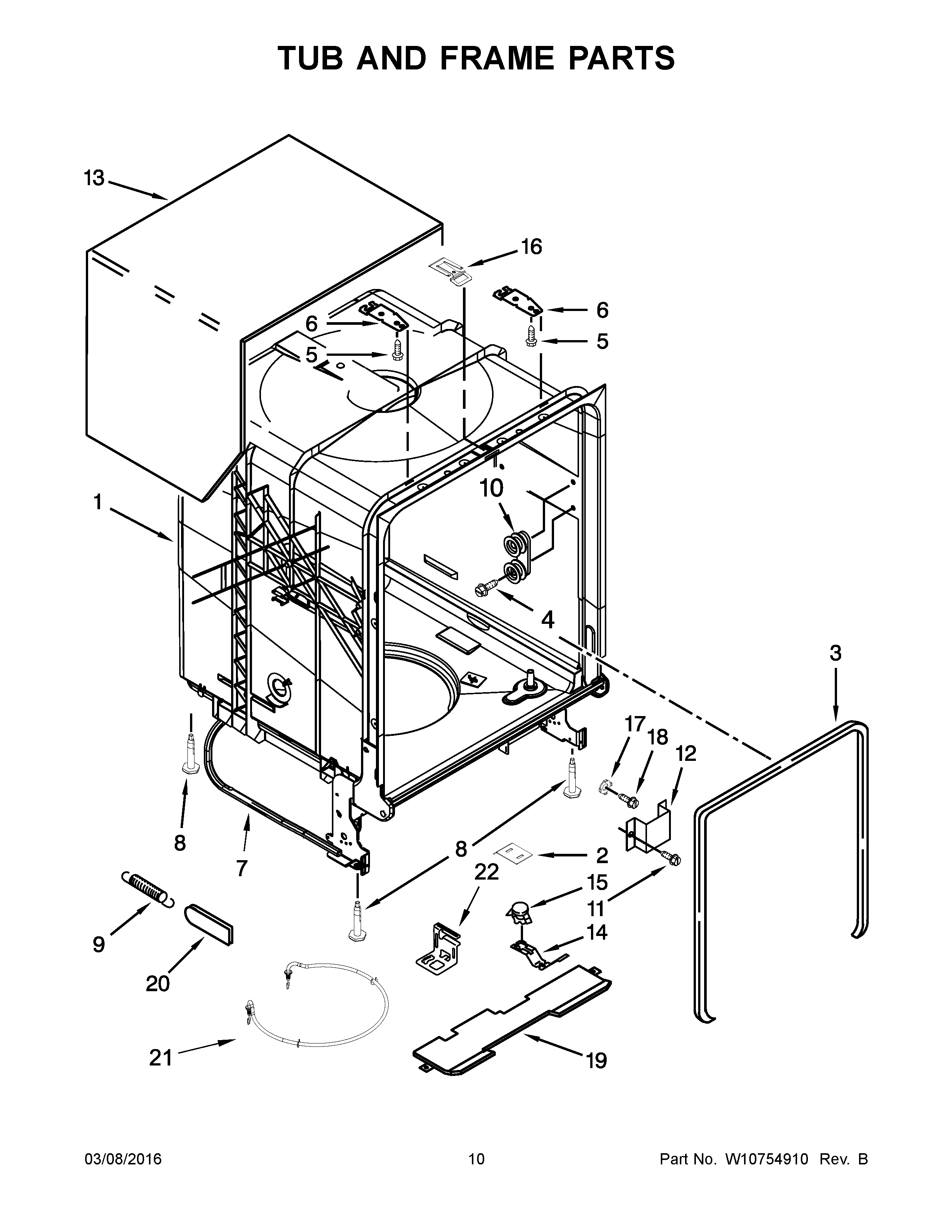

WDT720PADE1 06 – TUB AND FRAME PARTS

Products

Position	Product
1	W11513977 Whirlpool Dishwasher Tub
2	W10321574 Whirlpool Dishwasher Shield
3	GASKET
4	W10817436 Whirlpool Screw
5	WP308685 Whirlpool Microwave Screw
6	WP8269145 Whirlpool Dishwasher Mounting Bracket
7	W11680335 Whirlpool Support
8	8193716 Whirlpool Leveling Leg
9	WPW10337934 Whirlpool Spring Assembly
10	WP8575897 Whirlpool Dishwasher Tub Wheel
11	WP3400892 Whirlpool Dishwasher Screw
12	WP8268991 Whirlpool Dishwasher Cover Assembly
13	W10896113 Whirlpool Dishwasher Shield
14	W10539489 Whirlpool Dishwasher Bracket-Stat
15	WP661566 Whirlpool High Limit Thermostat
16	WPW10544004 Whirlpool Dishwasher Strike
17	WP3378128 Whirlpool Dishwasher Washer
18	WP3400014 Whirlpool Dishwasher Screw
19	W11747584 Whirlpool Insulation Pad
20	WP8268990 Whirlpool Dishwasher Door Spring Bushing
21	W10518394 Whirlpool Dishwasher Heating Element
22	W11027055 Whirlpool Dishwasher Heater Support
