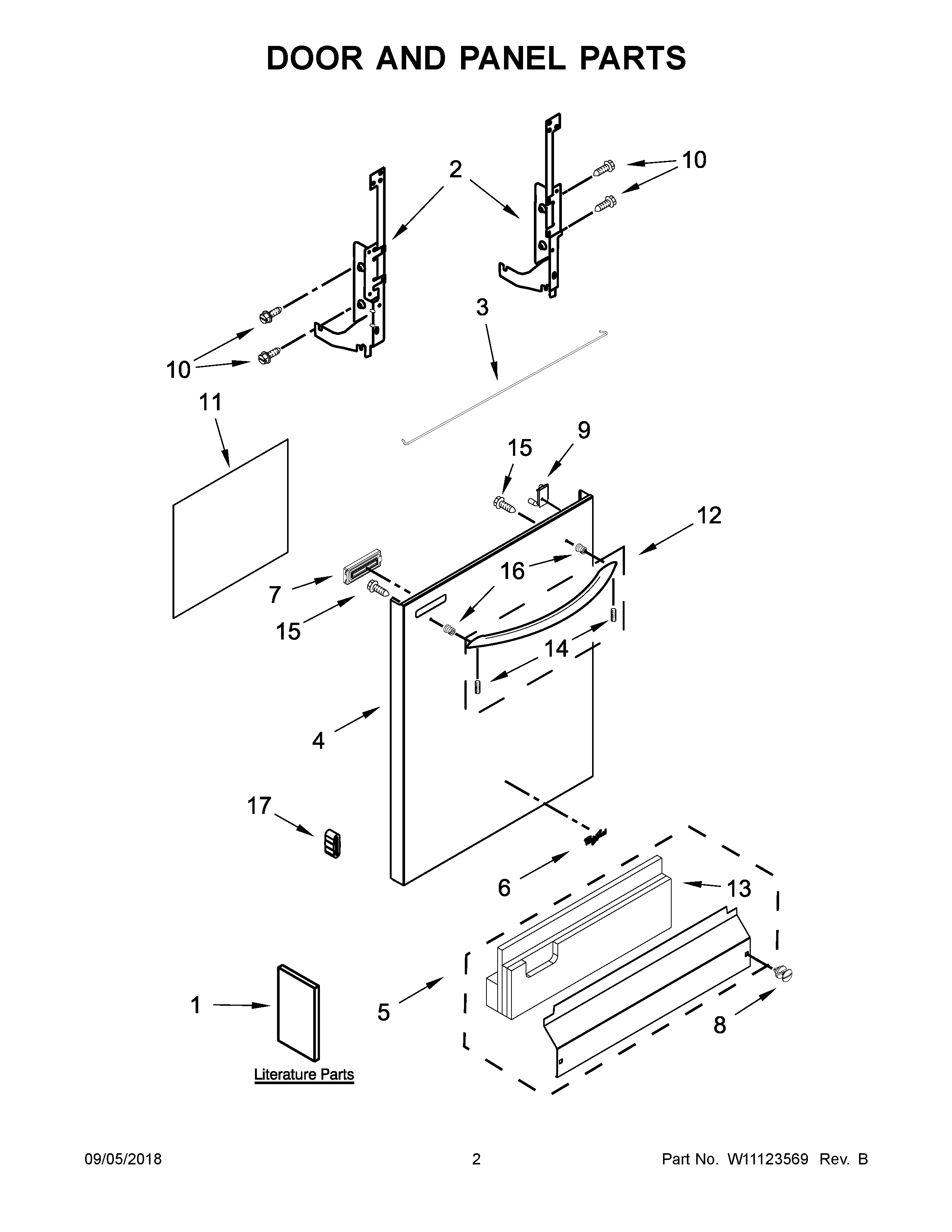

WDT720PADE3 02 – DOOR AND PANEL PARTS

Products

Position	Product
1C	TECH SHEET
1A	ENERGY GUIDE
1B	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2A	W11613572 Whirlpool Dishwasher Door Hinge
2	W11613573 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4A	PANEL, FRONT (INCLUDES 6, 7, 9, 15 & 16) (WHITE)
4	W10814587 Whirlpool Dishwasher Control Panel
4B	WPW10644292 Whirlpool Dishwasher Panel
5A	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6	W11178521 Whirlpool Dishwasher Nameplate
7B	W11105958 Whirlpool Grill Vent
7A	W11105960 Whirlpool Dishwasher Vent Grille
7	W11105961 Whirlpool Vent Grill
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8A	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	W10500331 Whirlpool Dishwasher Indicator Light
10	WPW10109200 Whirlpool Screw
11	W11126003 Whirlpool Dishwasher Insulation Pad
12	W10873050 Whirlpool Dishwasher Handle
12A	W10873052 Whirlpool Dishwasher Handle
12B	W11028176 Whirlpool Dishwasher Handle
13	SHIELD
14	W10907991 Whirlpool Screw
15	W10826179 Whirlpool Dishwasher Screw
16	W11157086 Whirlpool Dishwasher Door Handle Stud
17	WP8268961 Whirlpool Friction Pad
