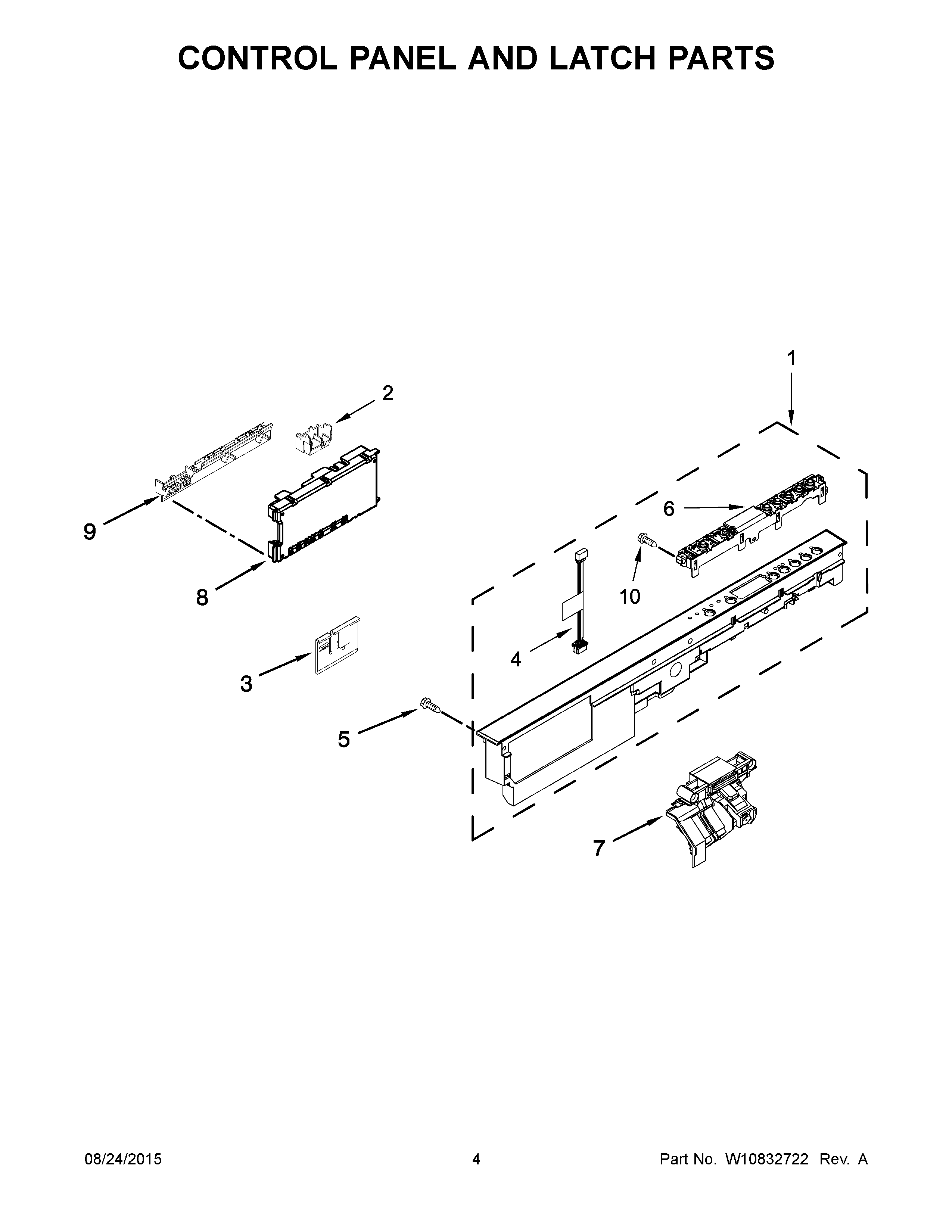

WDT720PADH2 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1B	W10815487 Whirlpool Dishwasher Control Panel
1A	W10861747 Whirlpool Dishwasher Control Panel
1	W10838676 Whirlpool Dishwasher Control Panel
2	W10783730 Whirlpool Dishwasher Connector
3	W11256107 Whirlpool Dishwasher Clip
4	W11028004 Whirlpool Dishwasher Wire
5	W11232015 Whirlpool Dishwasher Screw
6	W10917737 Whirlpool Interface Housing
7	WPW10653840 Whirlpool Door Latch
8	CNTRL-ELEC
9	WPW10194937 Whirlpool Dishwasher Control Bracket
10	WPW10177098 Whirlpool Dishwasher Screw
