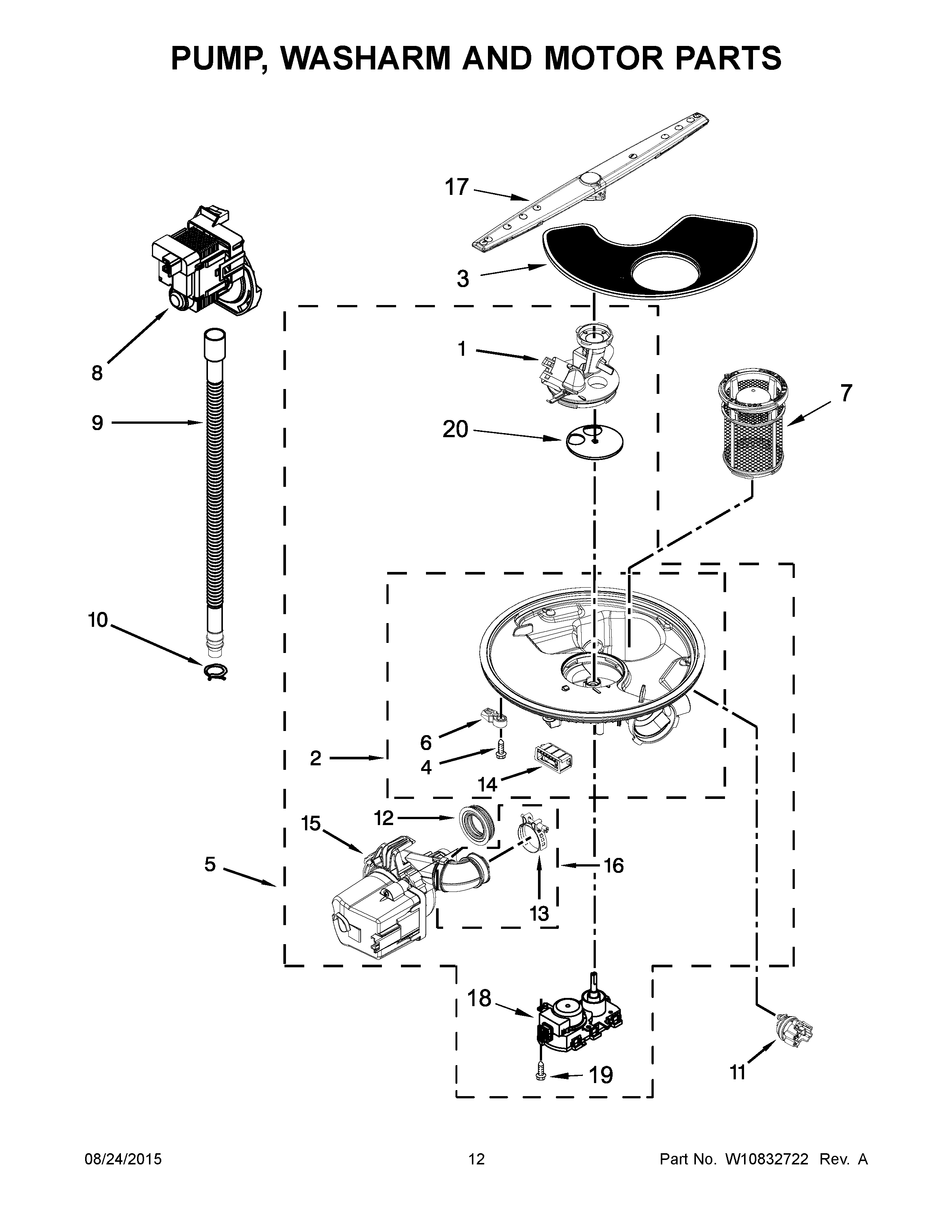

WDT720PADH2 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	W11245091 Whirlpool Dishwasher Cover
2	WPW10455268 Whirlpool Sump
3	WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4	WPW10348407 Whirlpool Dishwasher Screw
5	WPW10671941 Whirlpool Pump and Motor Assembly
6	WPW10372113 Whirlpool Dishwasher Sump Tab
7	W10872845 Whirlpool Dishwasher Filter Cup Trap
8	W10876537 Whirlpool Dishwasher Drain Pump
9	8269144A Whirlpool Dishwasher Drain Hose
10	WP285655 Whirlpool Hose Clamp
11	W11084121 Whirlpool Sensor Turbidity
12	WPW10538166 Whirlpool Grommet Pump
13	W10789434 Whirlpool Dishwasher Hose Clamp
14	W11243394 Whirlpool Dishwasher Support
15	W11032770 Whirlpool Dishwasher Circulation Pump & Motor
16	W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
17	ARM-SPRAY
18	W10537869 Whirlpool Dishwasher Motor
19	WP9741232 Whirlpool Dishwasher Screw
20	WPW10476221 Whirlpool Dishwasher Diffuser
