WDT720PADH3 02 – DOOR AND PANEL PARTS

WDT720PADH3 02 – DOOR AND PANEL PARTS

Written by

in

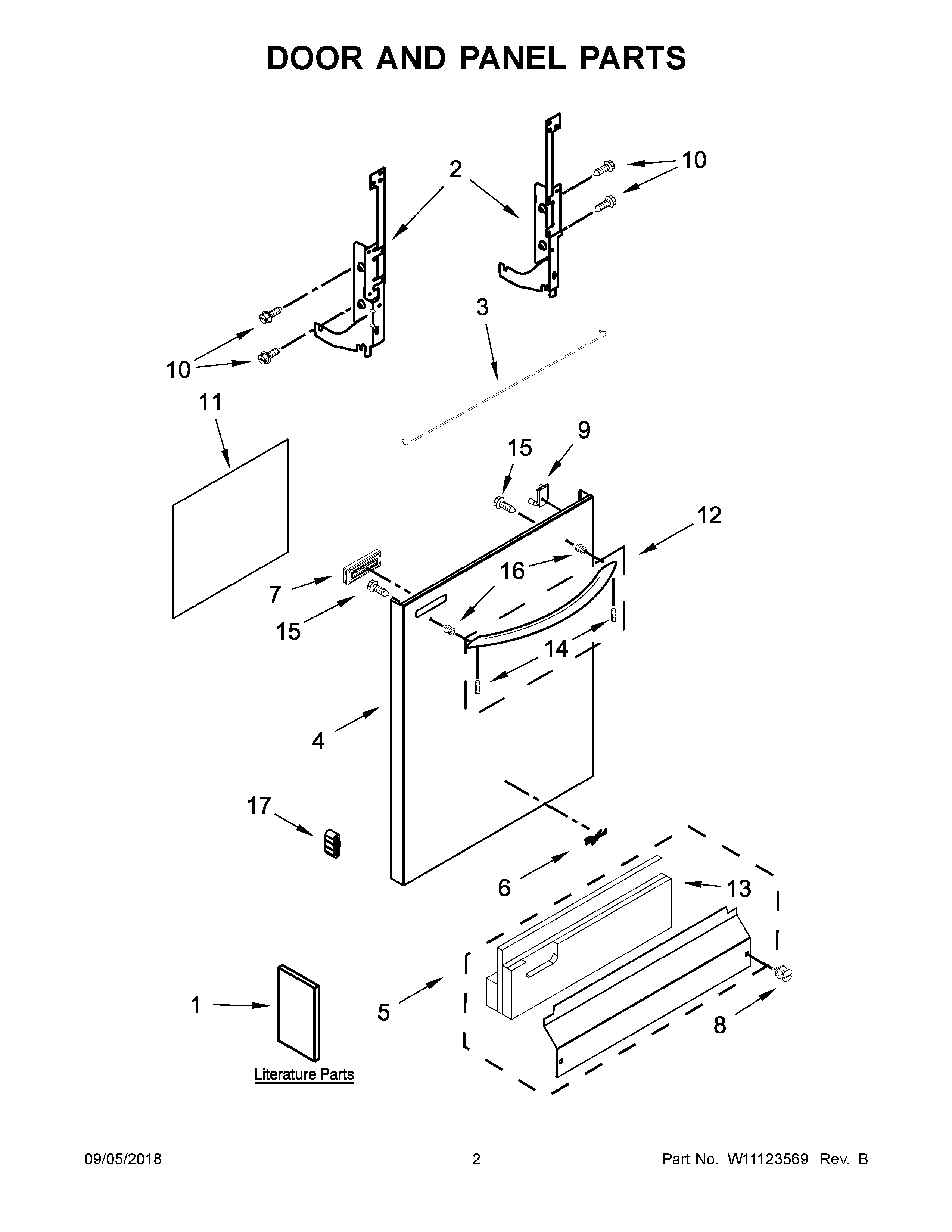

WDT720PADH3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1AENERGY GUIDE
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2AW11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4APANEL, FRONT (INCLUDES 6, 7, 9, 15 & 16) (WHITE)
4W10814587 Whirlpool Dishwasher Control Panel
4BWPW10644292 Whirlpool Dishwasher Panel
5AWPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6W11178521 Whirlpool Dishwasher Nameplate
7BW11105958 Whirlpool Grill Vent
7AW11105960 Whirlpool Dishwasher Vent Grille
7W11105961 Whirlpool Vent Grill
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9W10500331 Whirlpool Dishwasher Indicator Light
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W10873050 Whirlpool Dishwasher Handle
12AW10873052 Whirlpool Dishwasher Handle
12BW11028176 Whirlpool Dishwasher Handle
13SHIELD
14W10907991 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17WP8268961 Whirlpool Friction Pad
