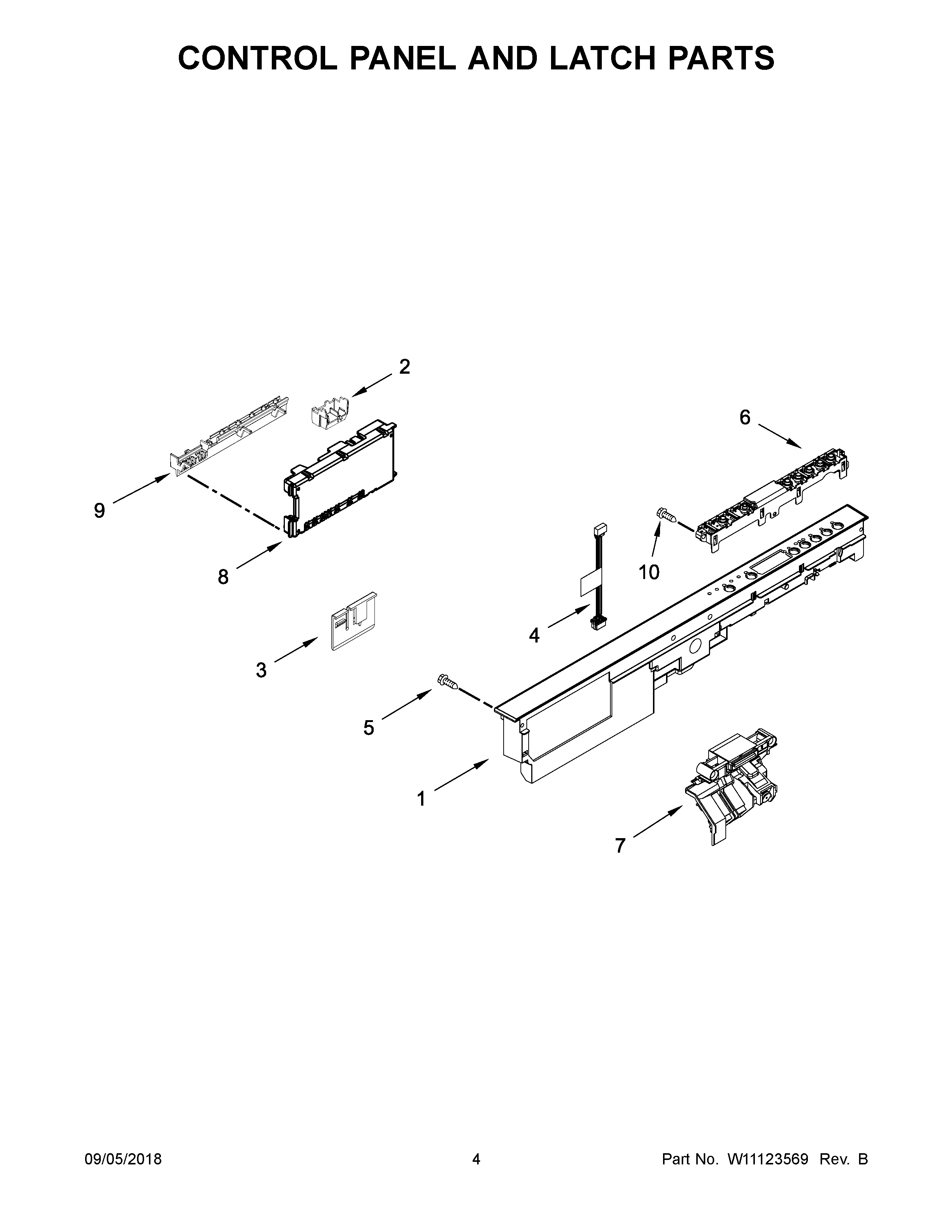

WDT720PADH3 03 – CONTROL PANEL AND LATCH PARTS

WDT720PADH3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDT720PADH3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW11124701 Whirlpool Dishwasher Console
1AW11124700 Whirlpool Dishwasher Console
1W11124699 Whirlpool Dishwasher Console
3W11256107 Whirlpool Dishwasher Clip
4W11028004 Whirlpool Dishwasher Wire
5W11232015 Whirlpool Dishwasher Screw
6W10918484 Whirlpool Dishwasher UI Housing
7WPW10653840 Whirlpool Door Latch
8W11306302 Whirlpool Dishwasher Electronic Control Board
9W11305293 Whirlpool Dishwasher Electronic Control Board
10WPW10177098 Whirlpool Dishwasher Screw
