WDT720PADM3 09 – UPPER RACK AND TRACK PARTS

WDT720PADM3 09 – UPPER RACK AND TRACK PARTS

Written by

in

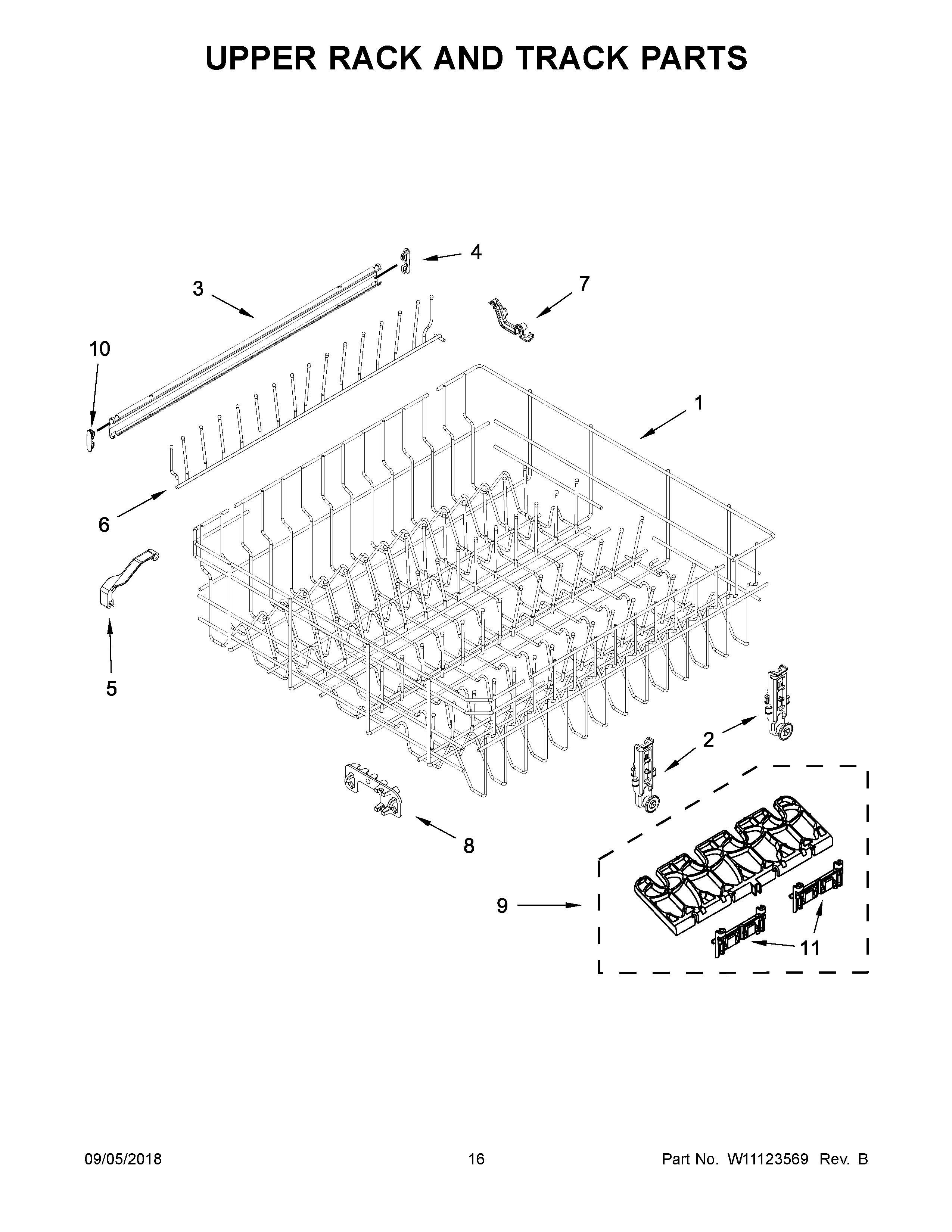

WDT720PADM3 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2W11157085 Whirlpool Dishwasher Upper Dishrack Roller Assembly
3WP3385089 Whirlpool Track
4WP8565925 Whirlpool Slide Rail Stop
5WPW10267076 Whirlpool Guard Clip
6W10727426 Whirlpool Dishwasher Rack Tine
7WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
8W10803790 Whirlpool Dishwasher Dishrack Tine Tips
9WPW10082649 Whirlpool Dishwasher Cup Shelf
11WPW10082848 Whirlpool Clip
