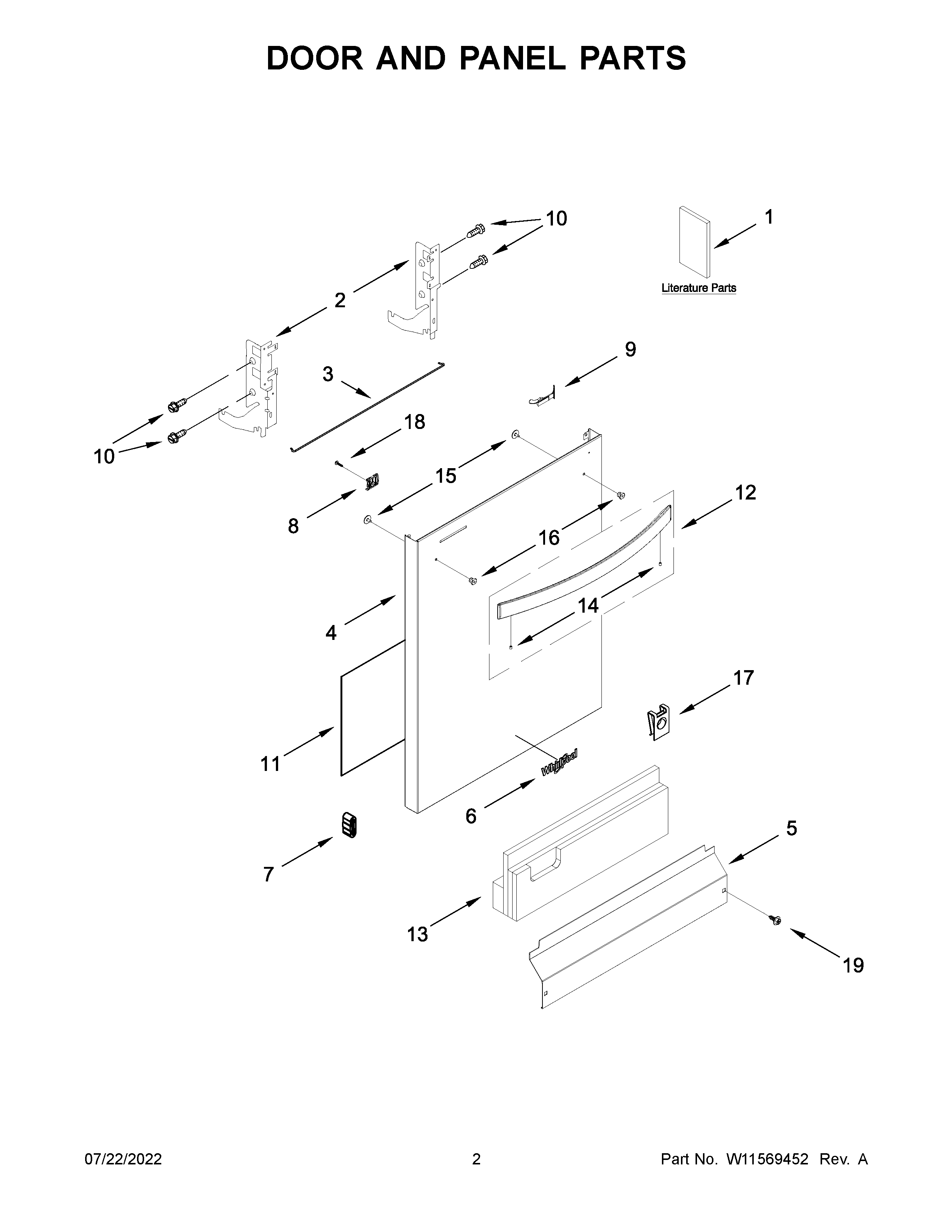

WDT730HAMZ0 02 – DOOR AND PANEL PARTS

WDT730HAMZ0 02 – DOOR AND PANEL PARTS

Written by

in

WDT730HAMZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1BTECH SHEET
1AOWNERS MANUAL
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W11702834 Whirlpool Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6W11178521 Whirlpool Dishwasher Nameplate
7WP8268961 Whirlpool Friction Pad
8W10692757 Whirlpool Dishwasher Nut Assembly
9W11504190 Whirlpool Indicator Light
10WP3400071 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W11685315 Whirlpool Handle
13SHIELD
14W10907991 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10910629 Whirlpool Dishwasher Nut
18WPW10213953 Whirlpool Screw
19WP302868 Whirlpool Screw
