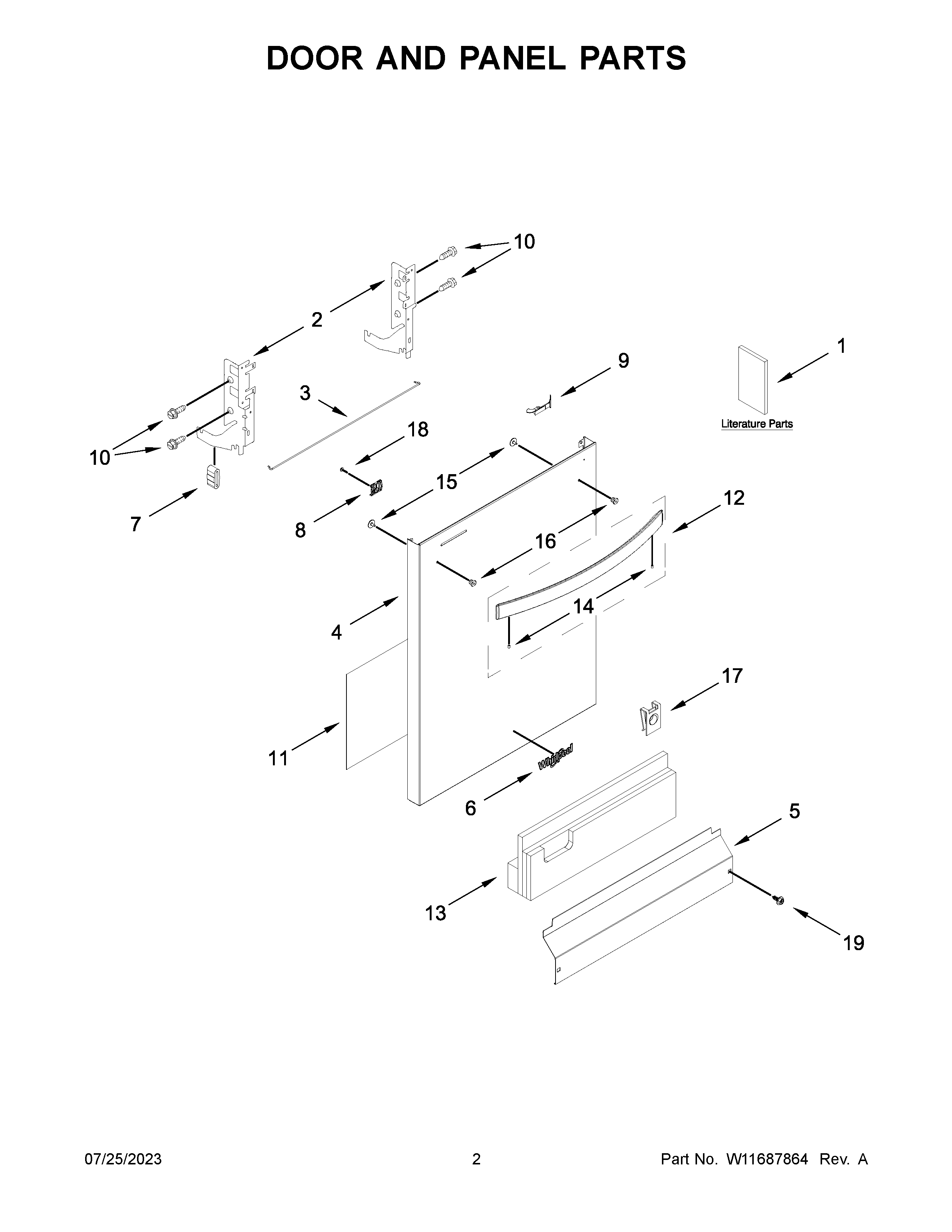

WDT730HAMZ1 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1B	TECH SHEET
1A	OWNERS MANUAL
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W11702834 Whirlpool Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
6	W11178521 Whirlpool Dishwasher Nameplate
7	WP8268961 Whirlpool Friction Pad
8	W10692757 Whirlpool Dishwasher Nut Assembly
9	W11504190 Whirlpool Indicator Light
10	WP3400071 Whirlpool Screw
11	W11126003 Whirlpool Dishwasher Insulation Pad
12	W11685315 Whirlpool Handle
13	SHIELD
14	W10907991 Whirlpool Screw
15	W10826179 Whirlpool Dishwasher Screw
16	W11157086 Whirlpool Dishwasher Door Handle Stud
17	W10910629 Whirlpool Dishwasher Nut
18	WPW10213953 Whirlpool Screw
19	WP302868 Whirlpool Screw
