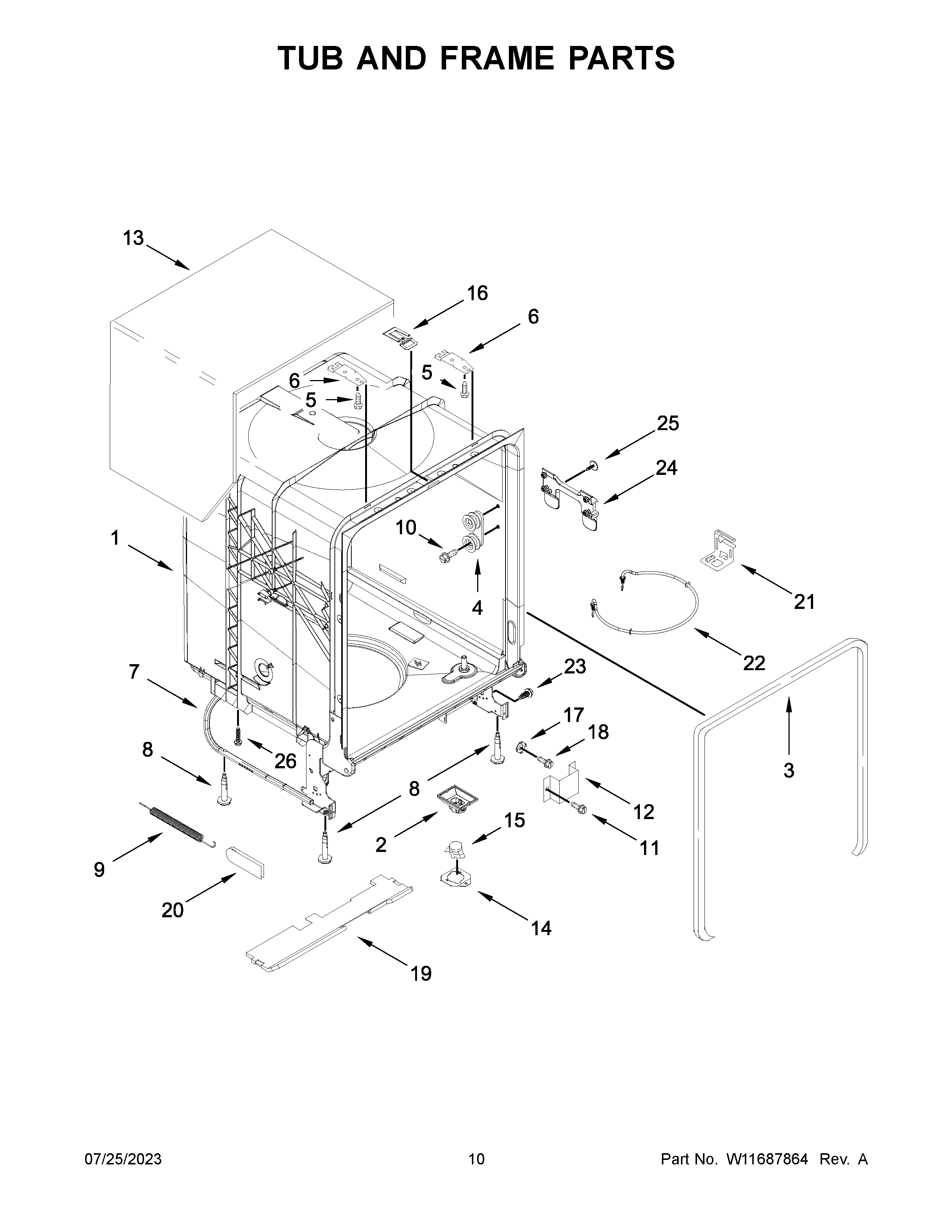

WDT730HAMZ1 06 – TUB AND FRAME PARTS

Products

Position	Product
1	W11649982 Whirlpool Dishwasher Tub
2	W11684260 Whirlpool Shield
3	SEAL, TUB
4	W10817436 Whirlpool Screw
5	W11551549 Whirlpool Microwave Screw
6	WP8269145 Whirlpool Dishwasher Mounting Bracket
7	W11680335 Whirlpool Support
8	8193716 Whirlpool Leveling Leg
9	WPW10337934 Whirlpool Spring Assembly
10	W11458872 Whirlpool Dishwasher Tub Wheel
11	WP3400892 Whirlpool Dishwasher Screw
12	WP8268991 Whirlpool Dishwasher Cover Assembly
13	W10896113 Whirlpool Dishwasher Shield
14	CLIP, THERMOSTAT
15	WP661566 Whirlpool High Limit Thermostat
16	WPW10544004 Whirlpool Dishwasher Strike
17	WP3378128 Whirlpool Dishwasher Washer
18	WP3400014 Whirlpool Dishwasher Screw
19	W11747584 Whirlpool Insulation Pad
20	WP8268990 Whirlpool Dishwasher Door Spring Bushing
21	W11027055 Whirlpool Dishwasher Heater Support
22	W10518394 Whirlpool Dishwasher Heating Element
23	WPW10277003 Whirlpool Screw
24	W11662356 Whirlpool Track
24A	W11662358 Whirlpool Track Assembly
25	WPW10309090 Whirlpool Dishwasher Screw
26	WPW10109200 Whirlpool Screw
