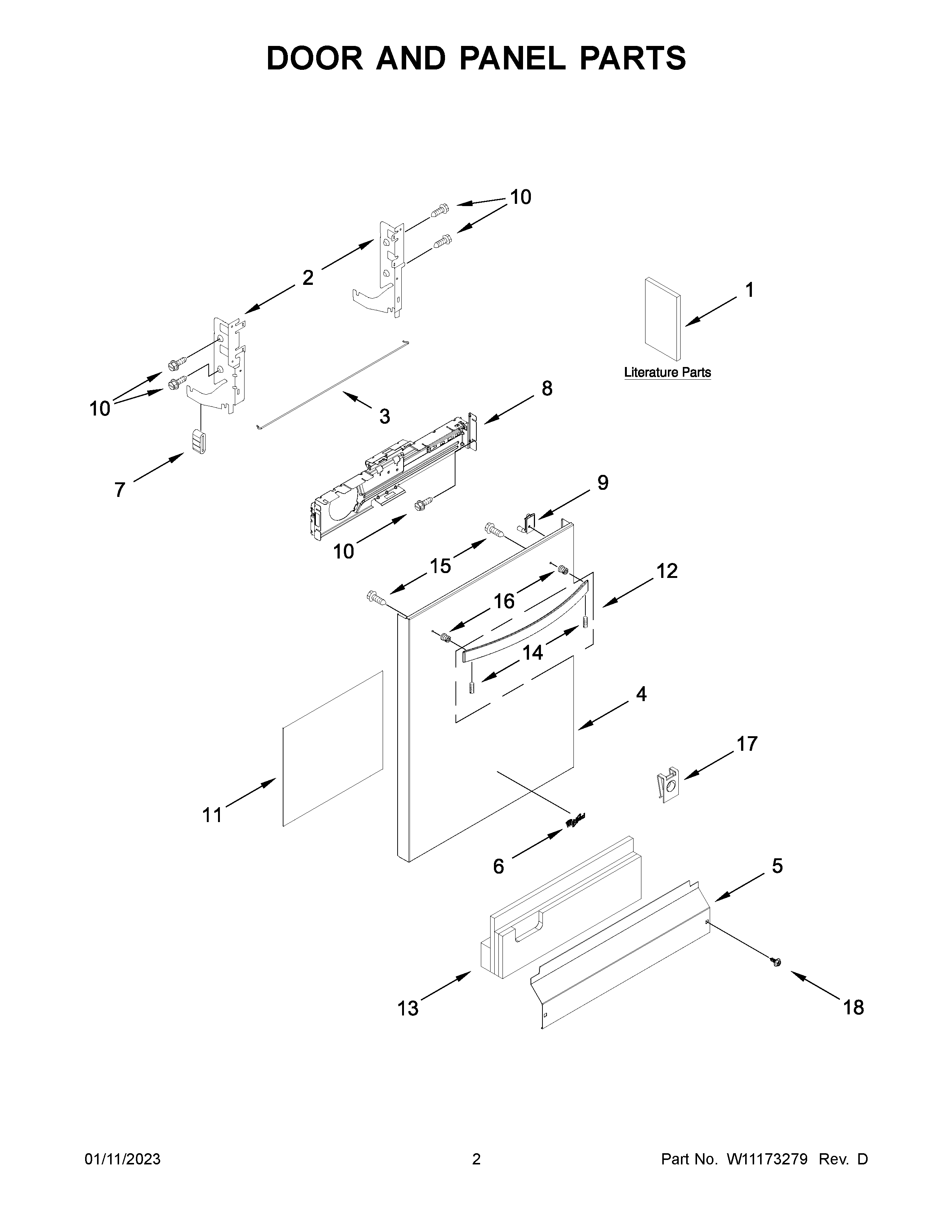

WDT730PAHV0 02 – DOOR AND PANEL PARTS

WDT730PAHV0 02 – DOOR AND PANEL PARTS

Written by

in

WDT730PAHV0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AOWNERS MANUAL
1ENERGY GUIDE
1BTECH SHEET
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4CW11174873 Whirlpool Dishwasher Control Panel
4W11174870 Whirlpool Dishwasher Panel
4AW11174871 Whirlpool Dishwasher Panel
4BW11174872 Whirlpool Front Panel Assembly
5W10909064 Whirlpool Dishwasher Black Access Panel
5AW10909066 Whirlpool Dishwasher Panel
6W11178521 Whirlpool Dishwasher Nameplate
7WP8268961 Whirlpool Friction Pad
8W11116870 Whirlpool Dishwasher Control Bracket
9W11036316 Whirlpool Dishwasher Indicator Light
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12CW11685317 Whirlpool Handle Assembly
12W11572098 Whirlpool Handle
12BW11685315 Whirlpool Handle
13SHIELD
14W10907991 Whirlpool Screw
15W10826179 Whirlpool Dishwasher Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10910629 Whirlpool Dishwasher Nut
18AWPW10503549 Whirlpool Dishwasher Retainer Clip
18WP302868 Whirlpool Screw
