WDT730PAHV0 04 – INNER DOOR PARTS

WDT730PAHV0 04 – INNER DOOR PARTS

Written by

in

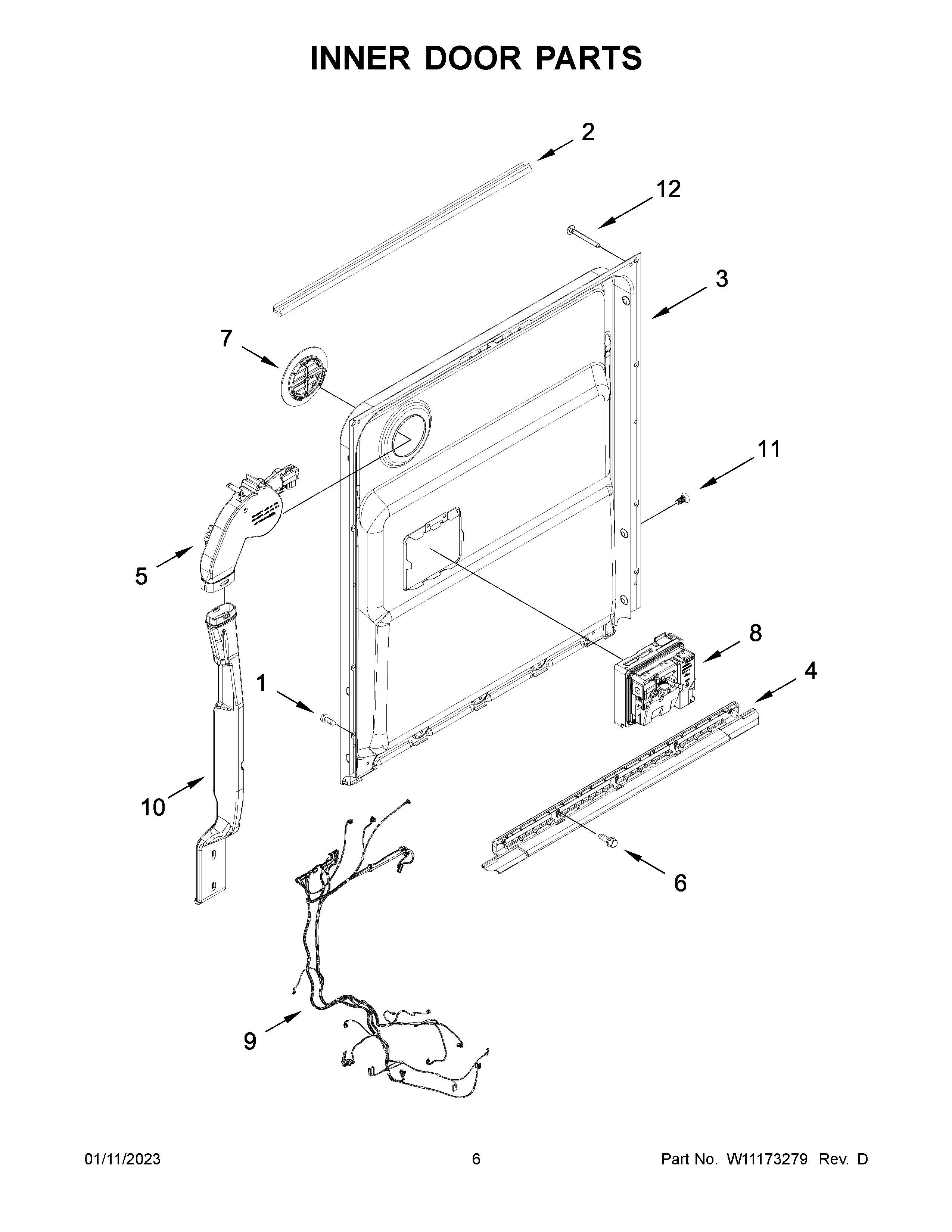

WDT730PAHV0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11213719 Whirlpool Dishwasher Seal
3W11174980 Whirlpool Dishwasher Inner Door
4W11252794 Whirlpool Seal Assembly
5WPW10469574 Whirlpool Dishwasher Vent
6W11631670 Whirlpool Screw
7WPW10195032 Whirlpool Dishwasher Deflector
8W10861000 Whirlpool Dishwasher Detergent Dispenser
9W11662108 Whirlpool Dishwasher Wire Harness
10WPW10195028 Whirlpool Dishwasher Vent
11WP3400071 Whirlpool Screw
12W11096645 Whirlpool Screw
