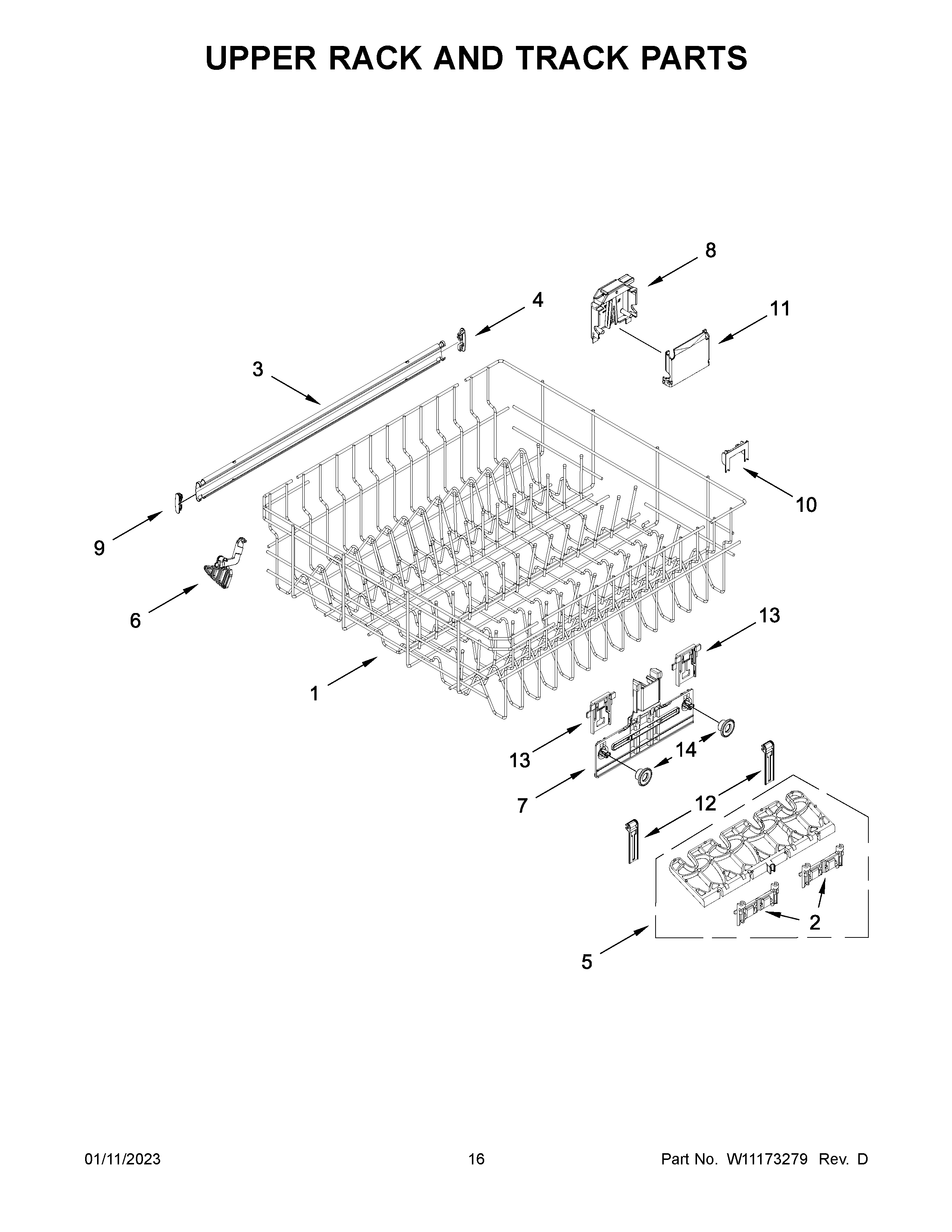

WDT730PAHV0 09 – UPPER RACK AND TRACK PARTS

WDT730PAHV0 09 – UPPER RACK AND TRACK PARTS

Written by

in

WDT730PAHV0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10350382 Whirlpool Dishwasher Dishrack
2WPW10082848 Whirlpool Clip
3WP3385089 Whirlpool Track
4WP8565925 Whirlpool Slide Rail Stop
5WPW10082649 Whirlpool Dishwasher Cup Shelf
6W10919676 Whirlpool Dishwasher Dispenser Guard Clip
7W10712395 Whirlpool Dishwasher Dishrack Adjuster
8AWPW10195373 Whirlpool Housing
8WPW10195372 Whirlpool Housing
10WPW10250160 Whirlpool Clip
11COVER
12WPW10195839 Whirlpool Dishwasher Rack Adjuster
13WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
14WP3385088 Whirlpool Dishwasher Upper Wheel
