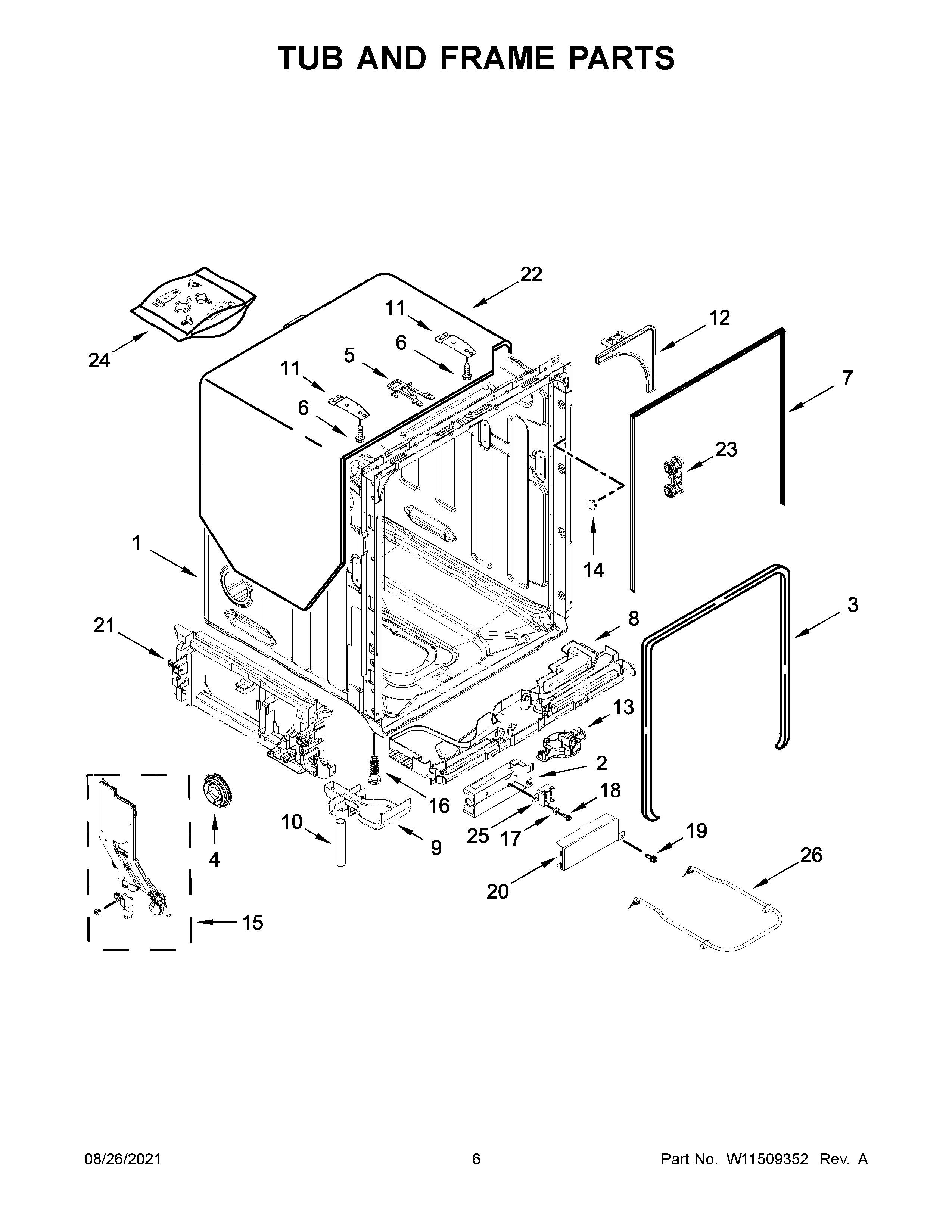

WDT740SALW0 04 – TUB AND FRAME PARTS

WDT740SALW0 04 – TUB AND FRAME PARTS

Products

PositionProduct
1W11409865 Whirlpool Tub
2W11226744 Whirlpool Box Cover
3W11483553 Whirlpool Tub Seal
4W11535081 Whirlpool Tube Nut
5STRIKE
6W11551549 Whirlpool Microwave Screw
7W11414078 Whirlpool Seal Assembly
8W11550169 Whirlpool Drip Tray
9W11025986 Whirlpool Dishwasher Funnel
10W11025988 Whirlpool Dishwasher Funnel
11WP8269145 Whirlpool Dishwasher Mounting Bracket
12W11579566 Whirlpool Insert
13FLOAT SWITCH
14W11573757 Whirlpool Cap Assembly
15INLET-WATR
16W11561254 Whirlpool Leg Leveler
17WP3378128 Whirlpool Dishwasher Washer
18WP3400014 Whirlpool Dishwasher Screw
19WP3400892 Whirlpool Dishwasher Screw
20W11407385 Whirlpool Wiring Cover
21W11679658 Whirlpool Side Support Tub
21AW11679657 Whirlpool Support
22W11700624 Whirlpool Shield
23W11614118 Whirlpool Tub Wheel
24W11502191 Whirlpool Bag Assembly Loose Parts Towel Bar
25W11573809 Whirlpool Termination Block
26W11537778 Whirlpool Heating Element Assembly
