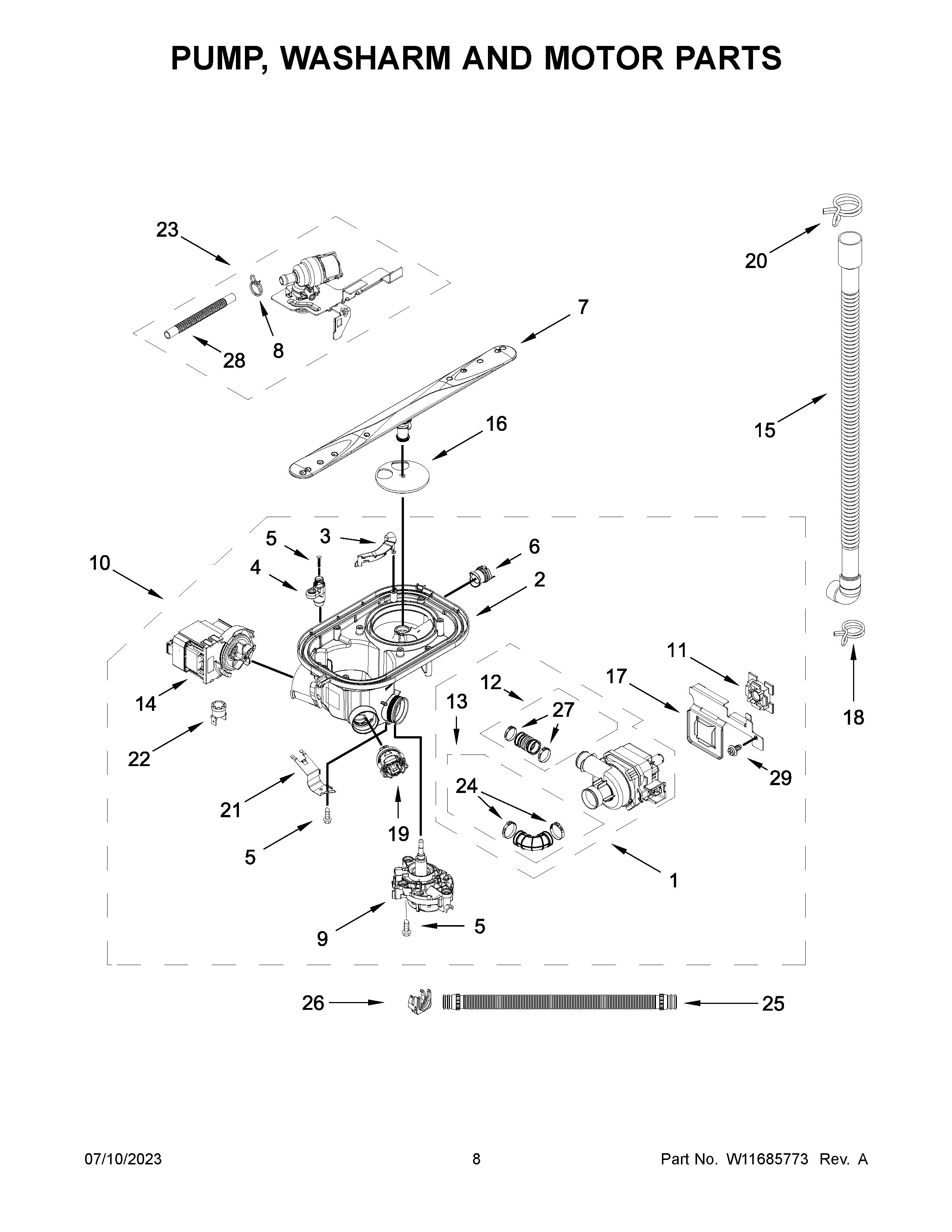

WDT740SALW2 05 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	W11460963 Whirlpool Dishwasher Circulation Motor Pump Assembly
2	W11443105 Whirlpool Sump
3	W10891543 Whirlpool Retainer
4	W11050773 Whirlpool Check Ball
5	WP9741232 Whirlpool Dishwasher Screw
6	W11622925 Whirlpool Check Valve
7	W11579565 Whirlpool Spray Arm
8	WP596669 Whirlpool Hose Clamp
9	DIVERTER VALVE MOTOR (NOT SERVICED)
10	W11460945 Whirlpool Pump and Motor Assembly
11	W11450247 Whirlpool Support
12	W11419334 Whirlpool Hose
13	W11460960 Whirlpool Hose
14	PUMP-DRAIN
15	W11414944 Whirlpool Drain Hose
16	W11580016 Whirlpool Dishwasher Diffuser
17	W11497568 Whirlpool Bracket
18	W11545578 Whirlpool Hose Clamp
19	W11410464 Whirlpool Sensor
20	WP285655 Whirlpool Hose Clamp
21	W11163419 Whirlpool Bracket - Stat
22	W11573758 Whirlpool Thermostat
23	VALVE-INLT
25	W11614117 Whirlpool Drain Hose
26	W11596052 Whirlpool Clip
27	W10783615 Whirlpool Dishwasher Clamp
28	W11627534 Whirlpool Fill Hose
29	W11104048 Whirlpool Cover
