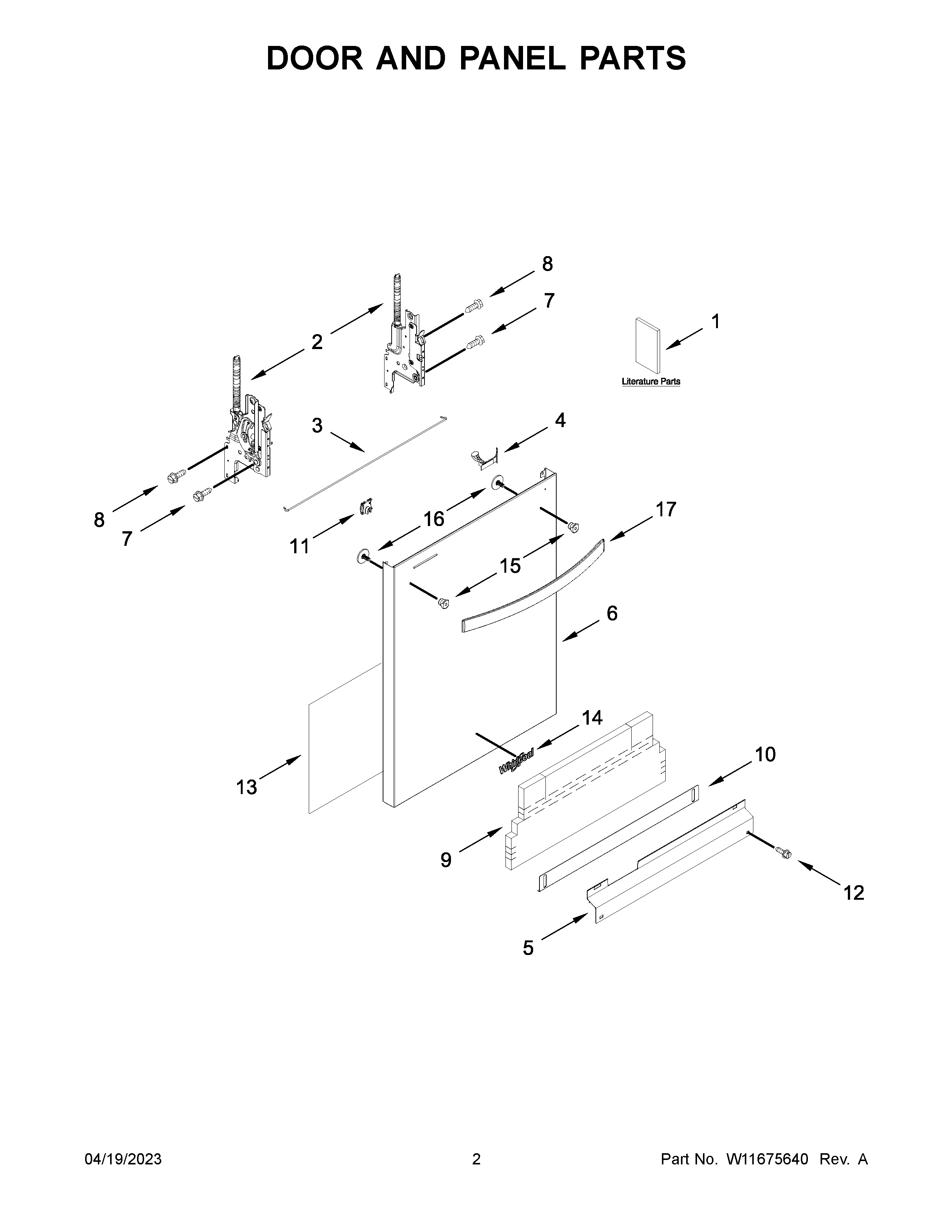

WDT740SALZ1 02 – DOOR AND PANEL PARTS

Products

Position	Product
1B	TECH SHEET
1A	ENERGY GUIDE
1	OWNERS MANUAL
2A	W11712996 Whirlpool Door Hinge
2	HINGE-DOOR
3	W11377160 Whirlpool Brace Assembly
4	W11102920 Whirlpool Indicator Light
5	W11545318 Whirlpool Toekick Plate
5A	W11110746 Whirlpool Panel
6	W11462452 Whirlpool Panel
6A	W11462450 Whirlpool Panel Assembly
6B	W11461694 Whirlpool Panel Assembly
7	W11676450 Whirlpool Screw
8	WPW10309090 Whirlpool Dishwasher Screw
9	W11573704 Whirlpool Dishwasher Shield
10A	W11467726 Whirlpool Toe Panel
10	W11579528 Whirlpool Toe Panel
11	W10692757 Whirlpool Dishwasher Nut Assembly
12	W11551775 Whirlpool Screw
12A	SCREW
13	W10919861 Whirlpool Insulation Pad
14	W11178521 Whirlpool Dishwasher Nameplate
15	W11157086 Whirlpool Dishwasher Door Handle Stud
16	W10826179 Whirlpool Dishwasher Screw
17	W11572098 Whirlpool Handle
17B	W11685315 Whirlpool Handle
