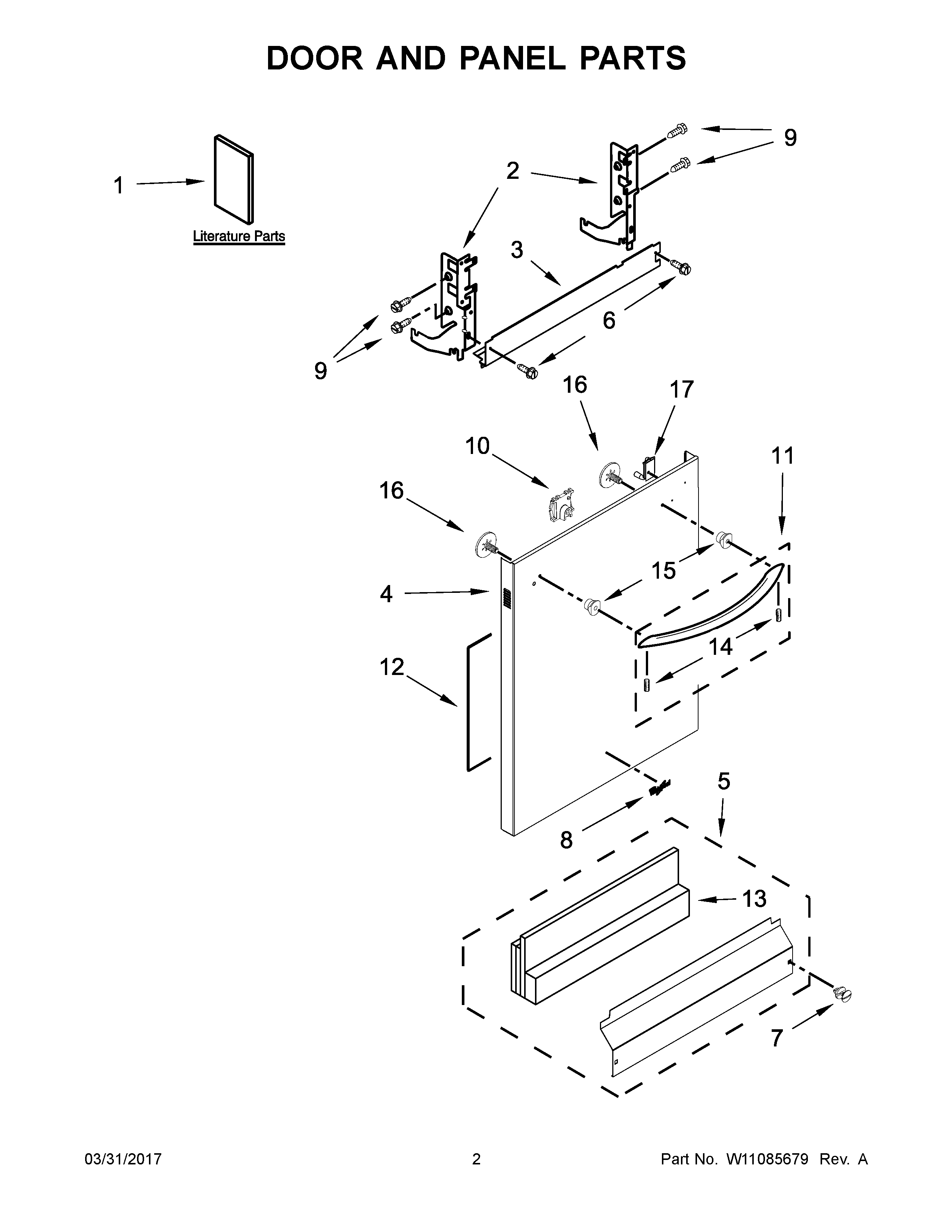

WDT750SAHM0 02 – DOOR AND PANEL PARTS

WDT750SAHM0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CTECH SHEET
1AENERGY GUIDE
1BUSE & CARE GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BW11087374 Whirlpool Dishwasher Panel
4CW11087375 Whirlpool Dishwasher Panel
4W11087372 Whirlpool Dishwasher Panel
4AW11087373 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
5AWPW10526115 Whirlpool Dishwasher Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7AWPW10503549 Whirlpool Dishwasher Retainer Clip
8W11178521 Whirlpool Dishwasher Nameplate
9WP3400071 Whirlpool Screw
10W10692757 Whirlpool Dishwasher Nut Assembly
11W10907189 Whirlpool Dishwasher Handle
11BW11685315 Whirlpool Handle
11CW11685317 Whirlpool Handle Assembly
12WPW10073520 Whirlpool Dishwasher Insulation Pad
13SHIELD
14W10907991 Whirlpool Screw
15W11157086 Whirlpool Dishwasher Door Handle Stud
16W10826179 Whirlpool Dishwasher Screw
17W10901145 Whirlpool Dishwasher Indicator Light
