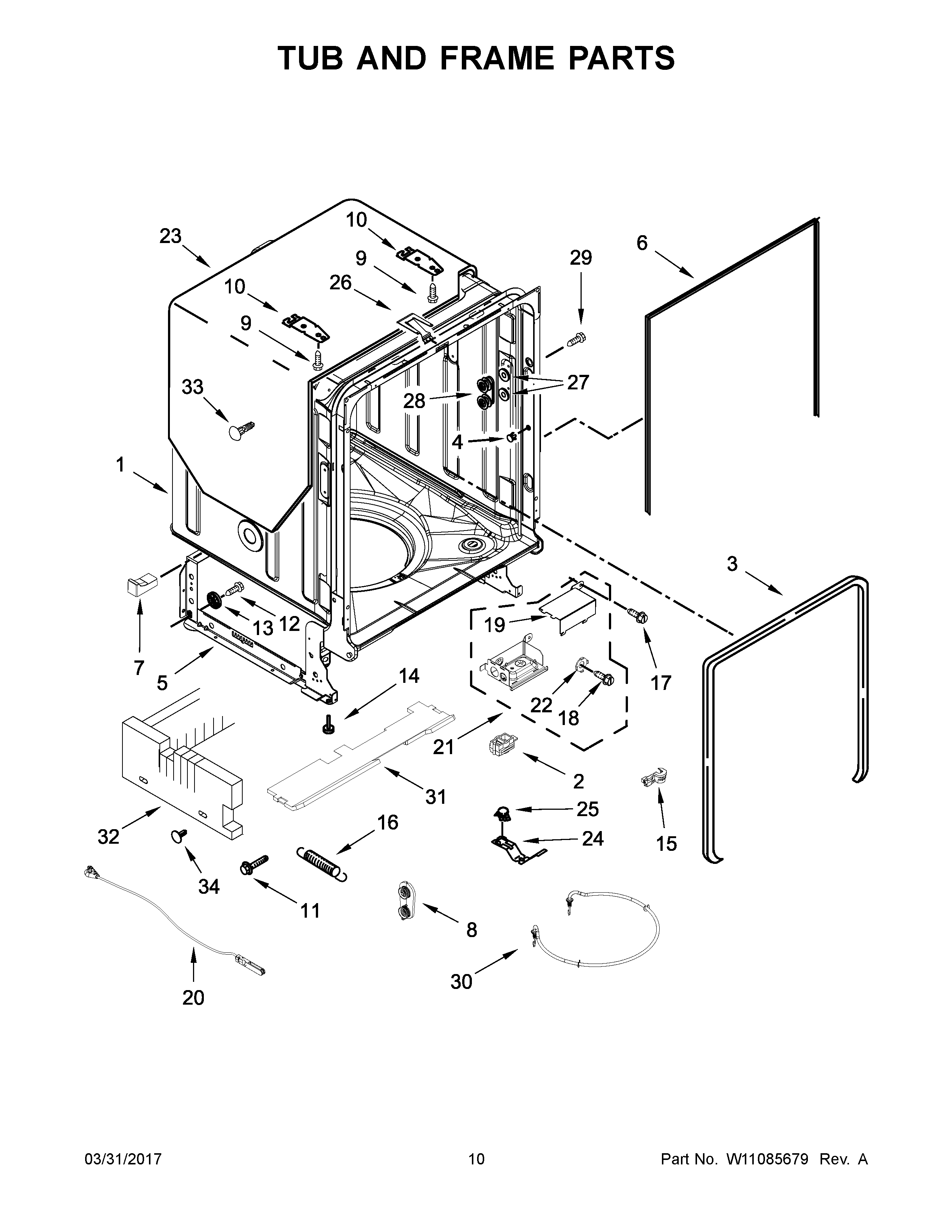

WDT750SAHV0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1WPW10681507 Whirlpool Dishwasher Tub
2W10292870 Whirlpool Dishwasher Housing
3W11177741 Whirlpool Dishwasher Door Gasket
4W10795980 Whirlpool Cap
5WPW10681564 Whirlpool Dishwasher Support
6SEAL
7W10195630 Whirlpool Dishwasher Spacer
7AW10195631 Whirlpool Dishwasher Tank Spacer
8WPW10084086 Whirlpool Dishwasher Mount
9WP308685 Whirlpool Microwave Screw
10WP8269145 Whirlpool Dishwasher Mounting Bracket
11WP3400074 Whirlpool Dishwasher Screw
12WPW10348411 Whirlpool Roller Wheel Screw
13WPW10190778 Whirlpool Dishwasher Wheel
148193716 Whirlpool Leveling Leg
15STRAIN RELIEF
16SPRING
17WP3400014 Whirlpool Dishwasher Screw
18WP3400892 Whirlpool Dishwasher Screw
19W10847918 Whirlpool Dishwasher Cover
208194001 Whirlpool Dishwasher Door Balance Link Kit
21W11167239 Whirlpool Dishwasher Cover Assembly
22WP3378128 Whirlpool Dishwasher Washer
23W11086533 Whirlpool Dishwasher Shield
24W10300703 Whirlpool Dishwasher Bracket Stat
25WPW10195091 Whirlpool Thermostat
26WPW10544004 Whirlpool Dishwasher Strike
27WP9743002 Whirlpool Dishwasher Gasket
28WPW10078083 Whirlpool Dishwasher Dishrack Wheel
29WPW10309090 Whirlpool Dishwasher Screw
30W10703867 Whirlpool Dishwasher Heating Element
31W11747584 Whirlpool Insulation Pad
32W10750120 Whirlpool Shield
33WP304666 Whirlpool Dishwasher Retainer
34WPW10486051 Whirlpool Dishwasher Retainer
