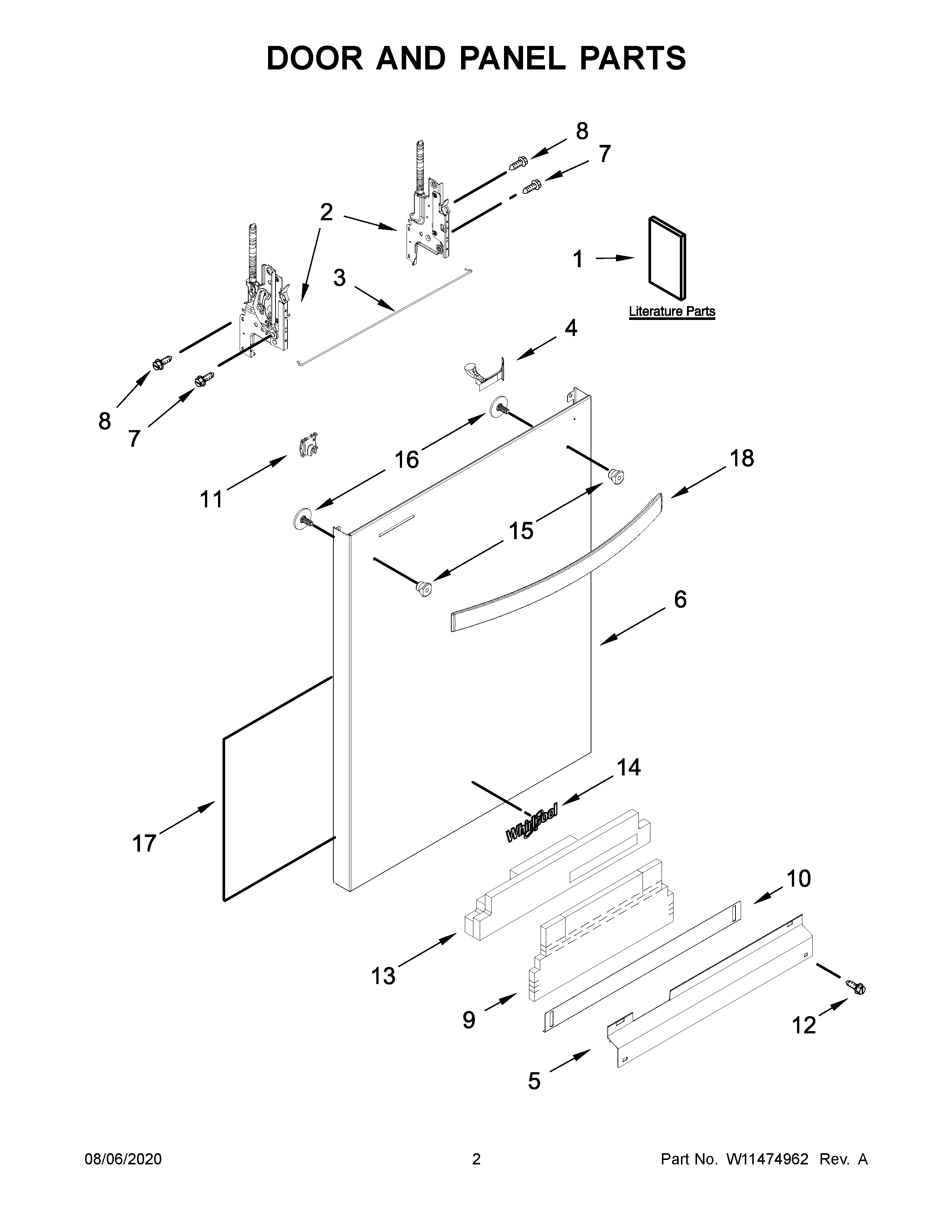

WDT750SAKB0 02 – DOOR AND PANEL PARTS

WDT750SAKB0 02 – DOOR AND PANEL PARTS

Written by

in

WDT750SAKB0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1AENERGY GUIDE
1OWNERS MANUAL
2HINGE-DOOR
2AW11712996 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W11102920 Whirlpool Indicator Light
5AW11110746 Whirlpool Panel
5W11545318 Whirlpool Toekick Plate
6AW11462450 Whirlpool Panel Assembly
6BW11461694 Whirlpool Panel Assembly
6W11462452 Whirlpool Panel
6CW11462451 Whirlpool Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
10AW11467726 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12AW11549054 Whirlpool Screw
12W11545329 Whirlpool Fastener
13W11573700 Whirlpool Shield
14W11178521 Whirlpool Dishwasher Nameplate
15W11157086 Whirlpool Dishwasher Door Handle Stud
16W10826179 Whirlpool Dishwasher Screw
17W10919861 Whirlpool Insulation Pad
18W11572098 Whirlpool Handle
18BW11685315 Whirlpool Handle
18CW11685317 Whirlpool Handle Assembly
