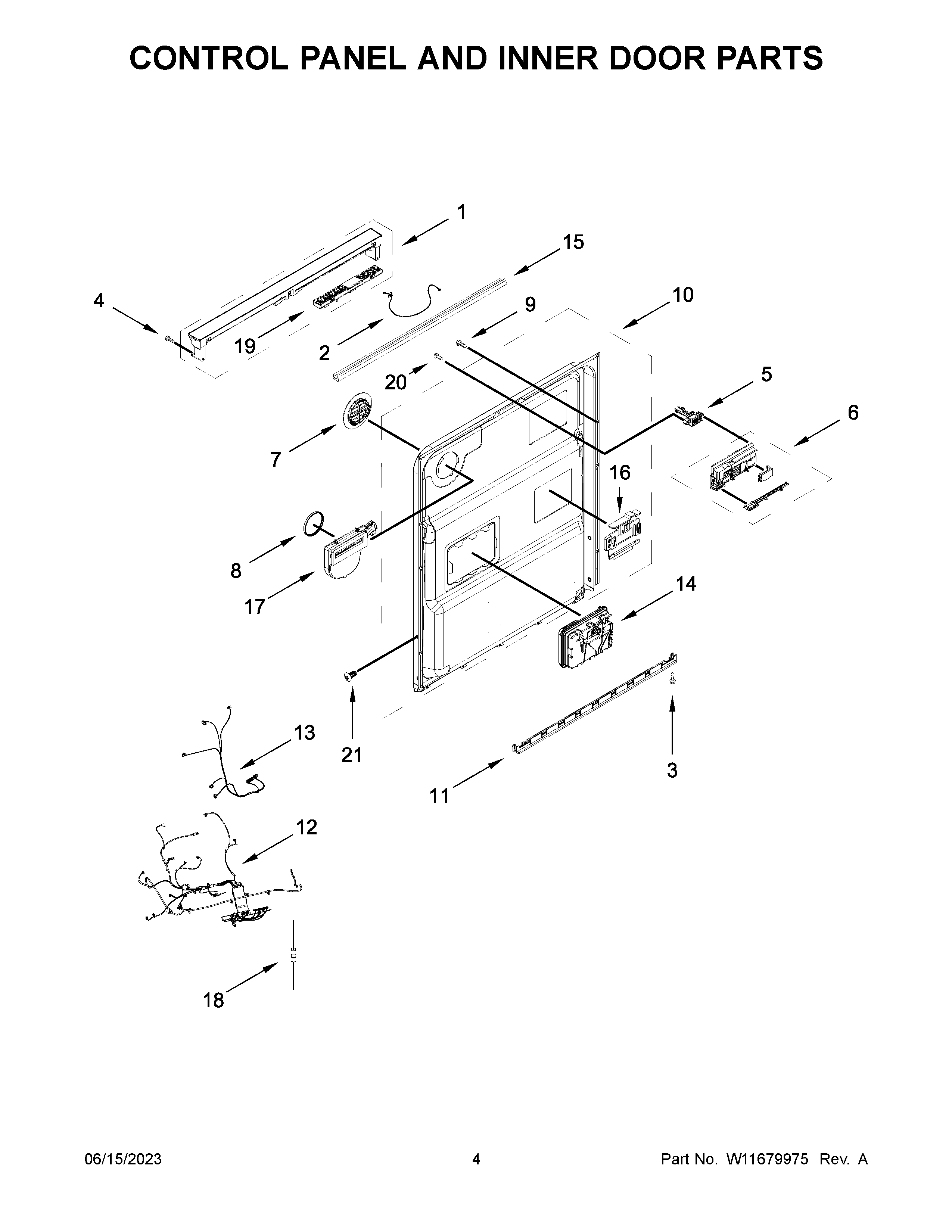

WDT750SAKB2 03 – CONTROL PANEL AND INNER DOOR PARTS

WDT750SAKB2 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

WDT750SAKB2 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1AW11460909 Whirlpool Console
1CONSOLE
2W11627526 Whirlpool Wire Harness
3W11627527 Whirlpool Screw
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11672039-includeCORE Whirlpool W11672039 Microwave Electronic Control Board with Core
7W11545290 Whirlpool Deflector
8W11545539 Whirlpool Gasket Seal
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12W11590537 Whirlpool Wire Harness
13W11611303 Whirlpool Wire Harness
14DISPENSER
15W11412696 Whirlpool Seal
16W11088985 Whirlpool Bracket Assembly
17VENT
18W11397505 Whirlpool Wire Harness
19W11632709 Whirlpool UI Panel + Core
20WPW10348408 Whirlpool Dishwasher Screw
21WP3400071 Whirlpool Screw
