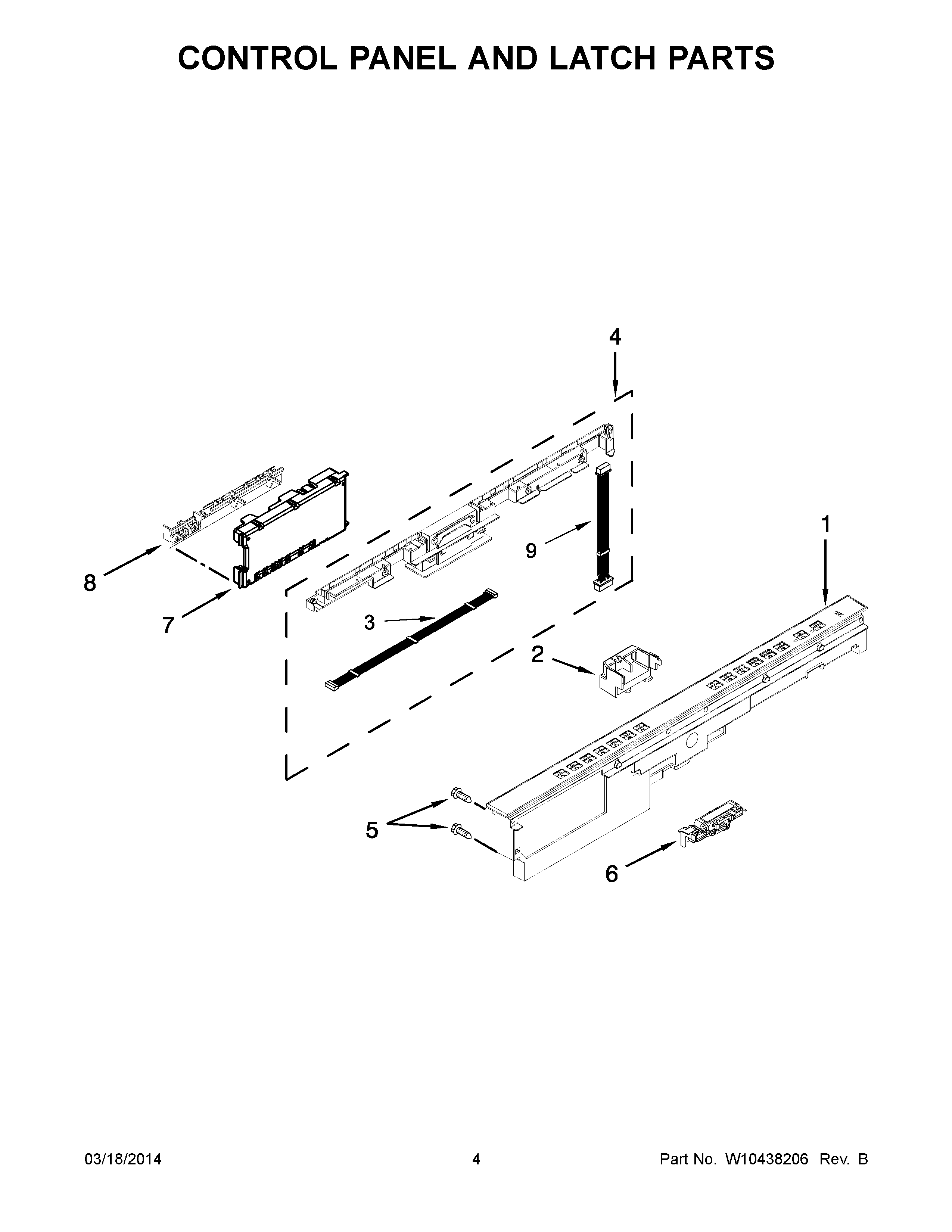

WDT770PAYB0 03 – CONTROL PANEL AND LATCH PARTS

WDT770PAYB0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDT770PAYB0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
1CONSOLE ASM. (WHITE)
1CONSOLE ASM. (STAINLESS)
2W10783730 Whirlpool Dishwasher Connector
3W10347251 Whirlpool Dishwasher Wire
4HOUSING, UI
5WPW10177098 Whirlpool Dishwasher Screw
6W10619006 Whirlpool Door Latch
7W10482988 Whirlpool Dishwasher Electronic Control Board
8WPW10194937 Whirlpool Dishwasher Control Bracket
9W10300781 Whirlpool Dishwasher Wire
