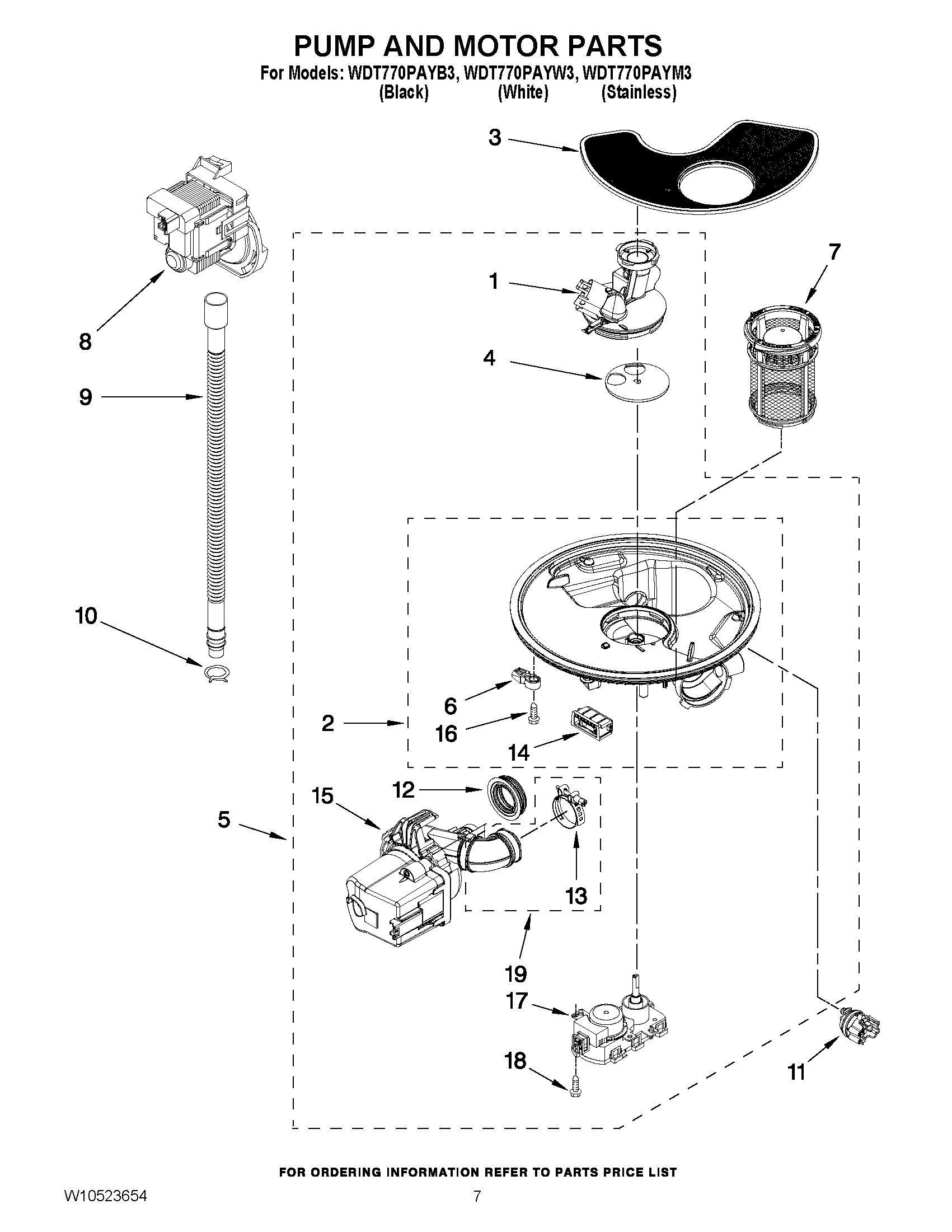

WDT770PAYB3 06 – PUMP AND MOTOR PARTS

WDT770PAYB3 06 – PUMP AND MOTOR PARTS

Written by

in

WDT770PAYB3 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
1WPW10455272 Whirlpool Dishwasher Cover
2WPW10455268 Whirlpool Sump
3W10872845 Whirlpool Dishwasher Filter Cup Trap
4WPW10476221 Whirlpool Dishwasher Diffuser
5WPW10482482 Whirlpool Dishwasher Pump and Motor
6WPW10372113 Whirlpool Dishwasher Sump Tab
7WPW10463906 Whirlpool Dishwasher Screen Filter Cover
8WPW10348269 Whirlpool Washer Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10WP285655 Whirlpool Hose Clamp
11WPW10705575 Whirlpool Dishwasher Sensor
12WPW10538166 Whirlpool Grommet Pump
13W10789434 Whirlpool Dishwasher Hose Clamp
14W11243394 Whirlpool Dishwasher Support
15W11032770 Whirlpool Dishwasher Circulation Pump & Motor
16WPW10348407 Whirlpool Dishwasher Screw
17W10537869 Whirlpool Dishwasher Motor
18WP9741232 Whirlpool Dishwasher Screw
19W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
