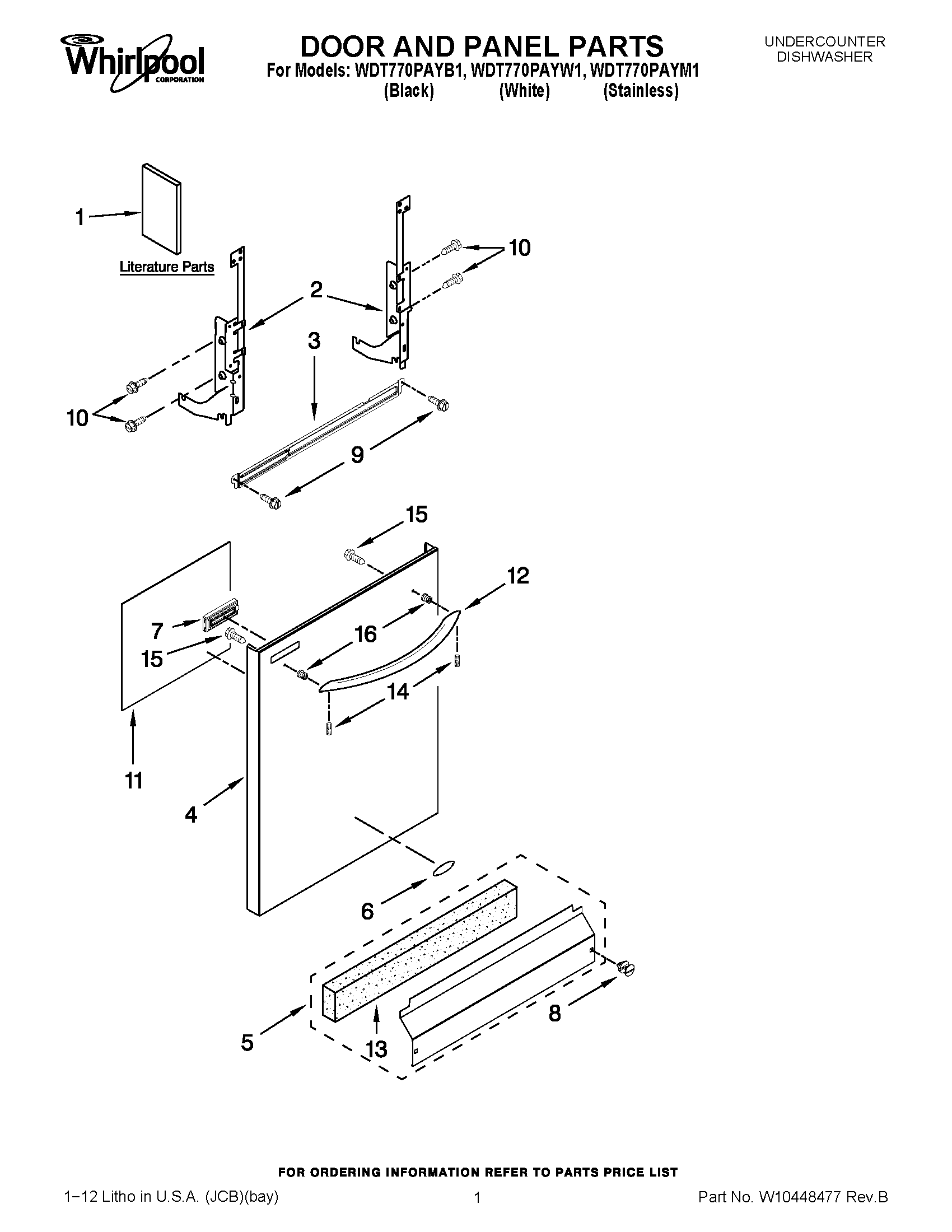

WDT770PAYM1 01 – DOOR AND PANEL PARTSadmin2025-04-26T13:06:38+00:00WDT770PAYM1 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENERGY GUIDE |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1 | USE & CARE GUIDE, SPANISH |
| 1 | TECH SHEET, ENGLISH |
| 1 | USE & CARE GUIDE, ENGLISH/FRENCH |
| 2 | W11613573 Whirlpool Door Hinge |
| 2 | W11613572 Whirlpool Dishwasher Door Hinge |
| 3 | W10850371 Whirlpool Dishwasher Door Brace |
| 4 | PANEL FRONT (INCLUDES 6, 7, 15 & 16) (BLACK) |
| 4 | PANEL FRONT (INCLUDES 6, 7, 15 & 16) (STAINLESS) |
| 4 | PANEL FRONT (INCLUDES 6, 7, 15 & 16) (WHITE) |
| 5 | W10827632 Whirlpool Dishwasher Control Panel |
| 5 | W10827631 Whirlpool Toe Panel |
| 6 | WPW10393264 Whirlpool Refrigerator Nameplate |
| 7 | GRILL, VENT (BLACK) |
| 8 | WPW10503549 Whirlpool Dishwasher Retainer Clip |
| 8 | WPW10503548 Whirlpool Dishwasher Panel Retainer Clip |
| 9 | WP489069 Whirlpool Compactor Screw |
| 10 | WPW10109200 Whirlpool Screw |
| 11 | W11126003 Whirlpool Dishwasher Insulation Pad |
| 12 | W10873052 Whirlpool Dishwasher Handle |
| 12 | HANDLE (STAINLESS) |
| 12 | W10873050 Whirlpool Dishwasher Handle |
| 13 | SHIELD |
| 14 | WP8534008 Whirlpool Screw |
| 15 | W10826179 Whirlpool Dishwasher Screw |
| 16 | W11157086 Whirlpool Dishwasher Door Handle Stud |
