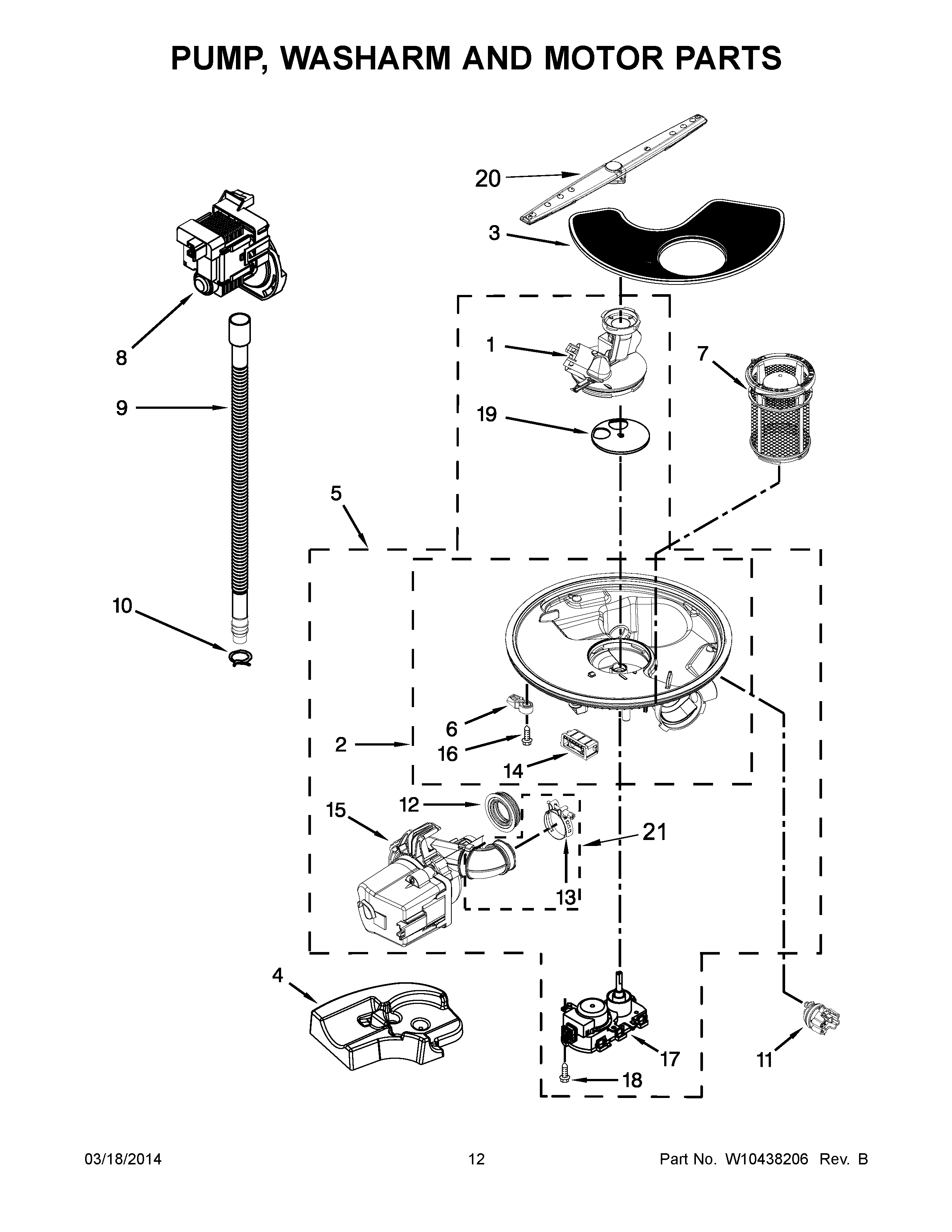

WDT770PAYW0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	W10463895 Whirlpool Dishwasher Cover
2	WPW10195643 Whirlpool Dishwasher Sump Assembly
3	WPW10354786 Whirlpool Dishwasher Screen
4	W10350335 Whirlpool Dishwasher Damper
5	WPW10482482 Whirlpool Dishwasher Pump and Motor
6	WPW10372113 Whirlpool Dishwasher Sump Tab
7	W10872845 Whirlpool Dishwasher Filter Cup Trap
8	WPW10348269 Whirlpool Washer Drain Pump
9	8269144A Whirlpool Dishwasher Drain Hose
10	WP285655 Whirlpool Hose Clamp
11	WPW10705575 Whirlpool Dishwasher Sensor
12	WPW10538166 Whirlpool Grommet Pump
13	W10488094 Whirlpool Dishwasher Clamp
14	W11243394 Whirlpool Dishwasher Support
15	W11032770 Whirlpool Dishwasher Circulation Pump & Motor
16	WPW10348407 Whirlpool Dishwasher Screw
17	W10537869 Whirlpool Dishwasher Motor
18	WP9741232 Whirlpool Dishwasher Screw
19	DISC, DIVERTER
20	ARM-SPRAY
21	W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
