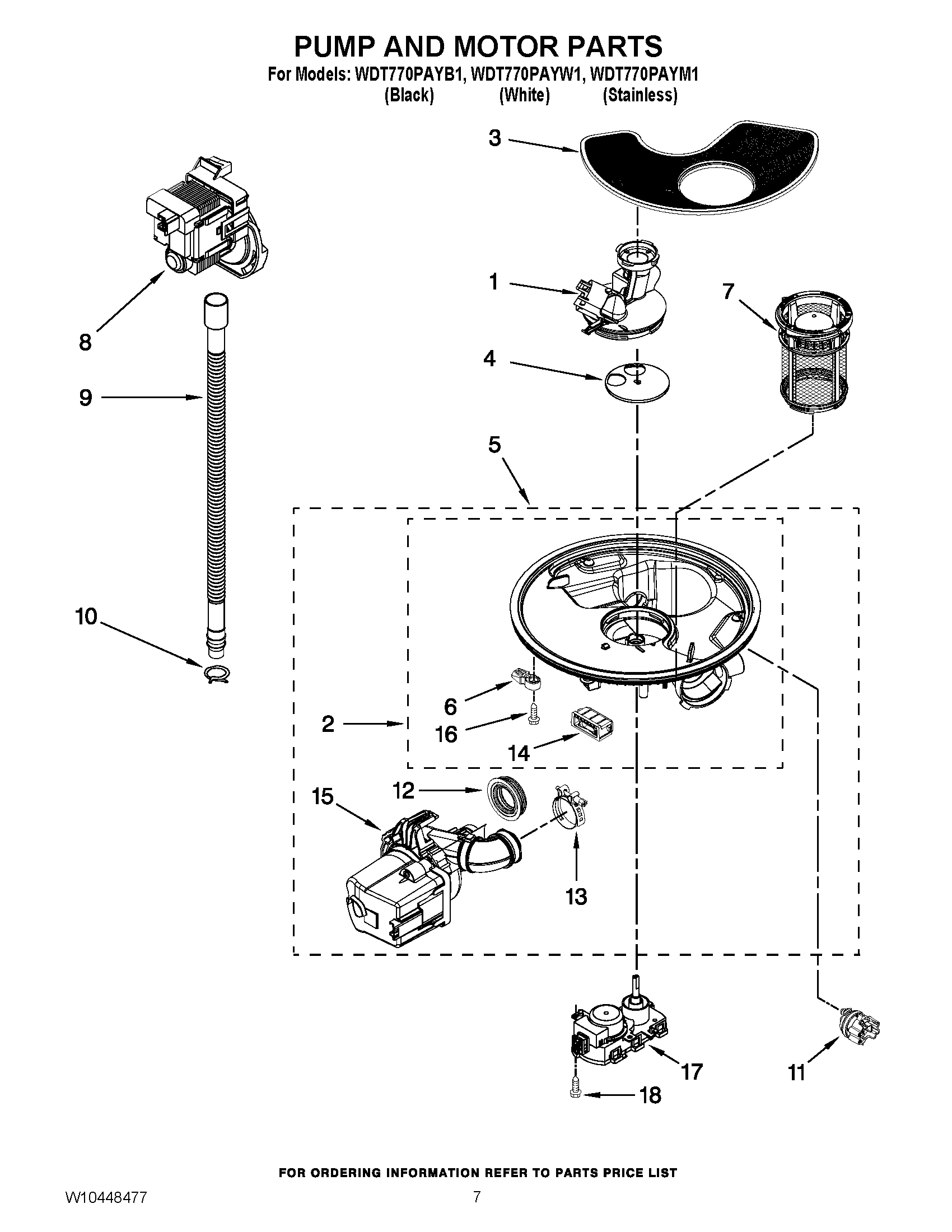

WDT770PAYW1 06 – PUMP AND MOTOR PARTS

Products

Position	Product
1	W10463895 Whirlpool Dishwasher Cover
2	WPW10455268 Whirlpool Sump
3	WPW10354786 Whirlpool Dishwasher Screen
4	DISC, DIVERTER
5	WPW10482482 Whirlpool Dishwasher Pump and Motor
6	WPW10372113 Whirlpool Dishwasher Sump Tab
7	W10872845 Whirlpool Dishwasher Filter Cup Trap
8	WPW10348269 Whirlpool Washer Drain Pump
9	8269144A Whirlpool Dishwasher Drain Hose
10	WP285655 Whirlpool Hose Clamp
11	WPW10705575 Whirlpool Dishwasher Sensor
12	WPW10538166 Whirlpool Grommet Pump
13	W10789434 Whirlpool Dishwasher Hose Clamp
14	W11243394 Whirlpool Dishwasher Support
15	W11032770 Whirlpool Dishwasher Circulation Pump & Motor
16	WPW10348407 Whirlpool Dishwasher Screw
17	W10537869 Whirlpool Dishwasher Motor
18	WP9741232 Whirlpool Dishwasher Screw
