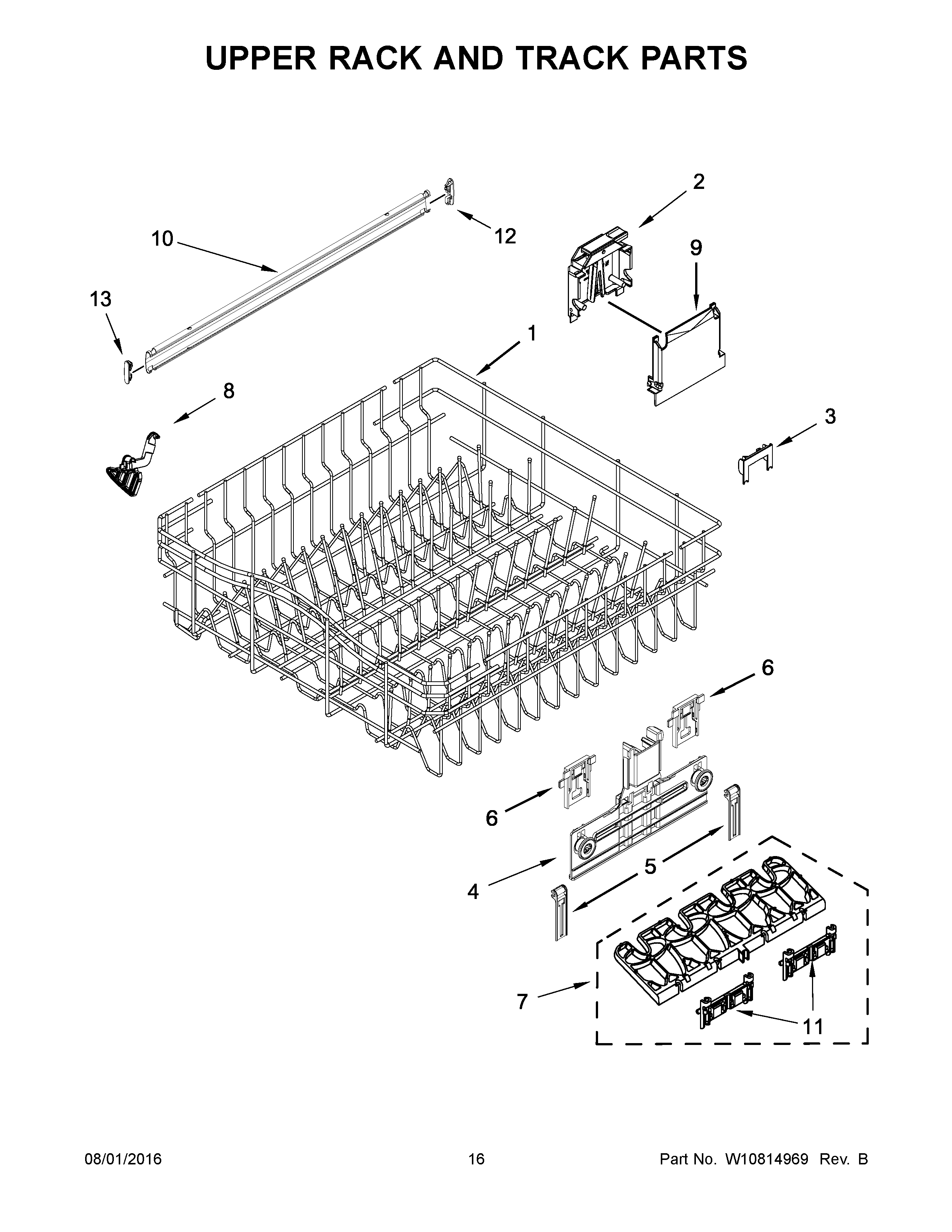

WDT780SAEM1 09 – UPPER RACK AND TRACK PARTS

WDT780SAEM1 09 – UPPER RACK AND TRACK PARTS

Written by

in

WDT780SAEM1 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10350382 Whirlpool Dishwasher Dishrack
2WPW10195372 Whirlpool Housing
2AWPW10195373 Whirlpool Housing
3WPW10250160 Whirlpool Clip
4W10712395 Whirlpool Dishwasher Dishrack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8W10919676 Whirlpool Dishwasher Dispenser Guard Clip
9COVER
10WP3385089 Whirlpool Track
11WPW10082848 Whirlpool Clip
12WP8565925 Whirlpool Slide Rail Stop
