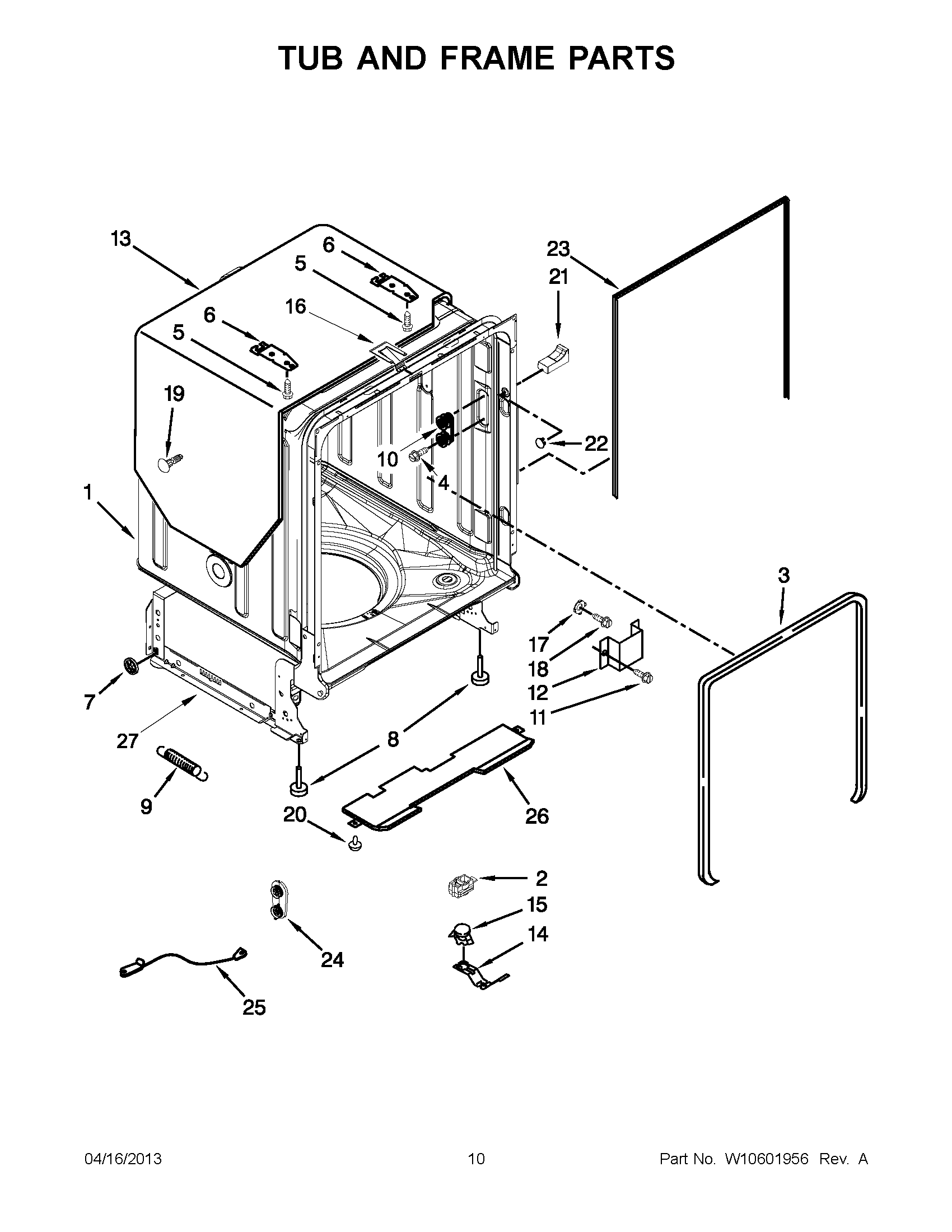

WDT790SAYB2 05 – TUB AND FRAME PARTS

WDT790SAYB2 05 – TUB AND FRAME PARTS

Products

PositionProduct
1WPW10681507 Whirlpool Dishwasher Tub
2W10292870 Whirlpool Dishwasher Housing
3SEAL
4WPW10309090 Whirlpool Dishwasher Screw
5WP308685 Whirlpool Microwave Screw
6WP8269145 Whirlpool Dishwasher Mounting Bracket
7WPW10190778 Whirlpool Dishwasher Wheel
88193716 Whirlpool Leveling Leg
9SPRING
10WPW10505748 Whirlpool Dishwasher Dishrack Wheel
11WP3400892 Whirlpool Dishwasher Screw
12WP8268991 Whirlpool Dishwasher Cover Assembly
13W11086533 Whirlpool Dishwasher Shield
14W10300703 Whirlpool Dishwasher Bracket Stat
15WPW10195091 Whirlpool Thermostat
16WPW10300779 Whirlpool Dishwasher Strike
17WP3378128 Whirlpool Dishwasher Washer
18WP3400014 Whirlpool Dishwasher Screw
19WP304666 Whirlpool Dishwasher Retainer
20WP3400924 Whirlpool Dishwasher Retainer
21W10195630 Whirlpool Dishwasher Spacer
21W10195631 Whirlpool Dishwasher Tank Spacer
22W10795980 Whirlpool Cap
23W11177741 Whirlpool Dishwasher Door Gasket
24WPW10084086 Whirlpool Dishwasher Mount
258194001 Whirlpool Dishwasher Door Balance Link Kit
26WPW10746770 Whirlpool Insulation Pad
27WPW10681564 Whirlpool Dishwasher Support
