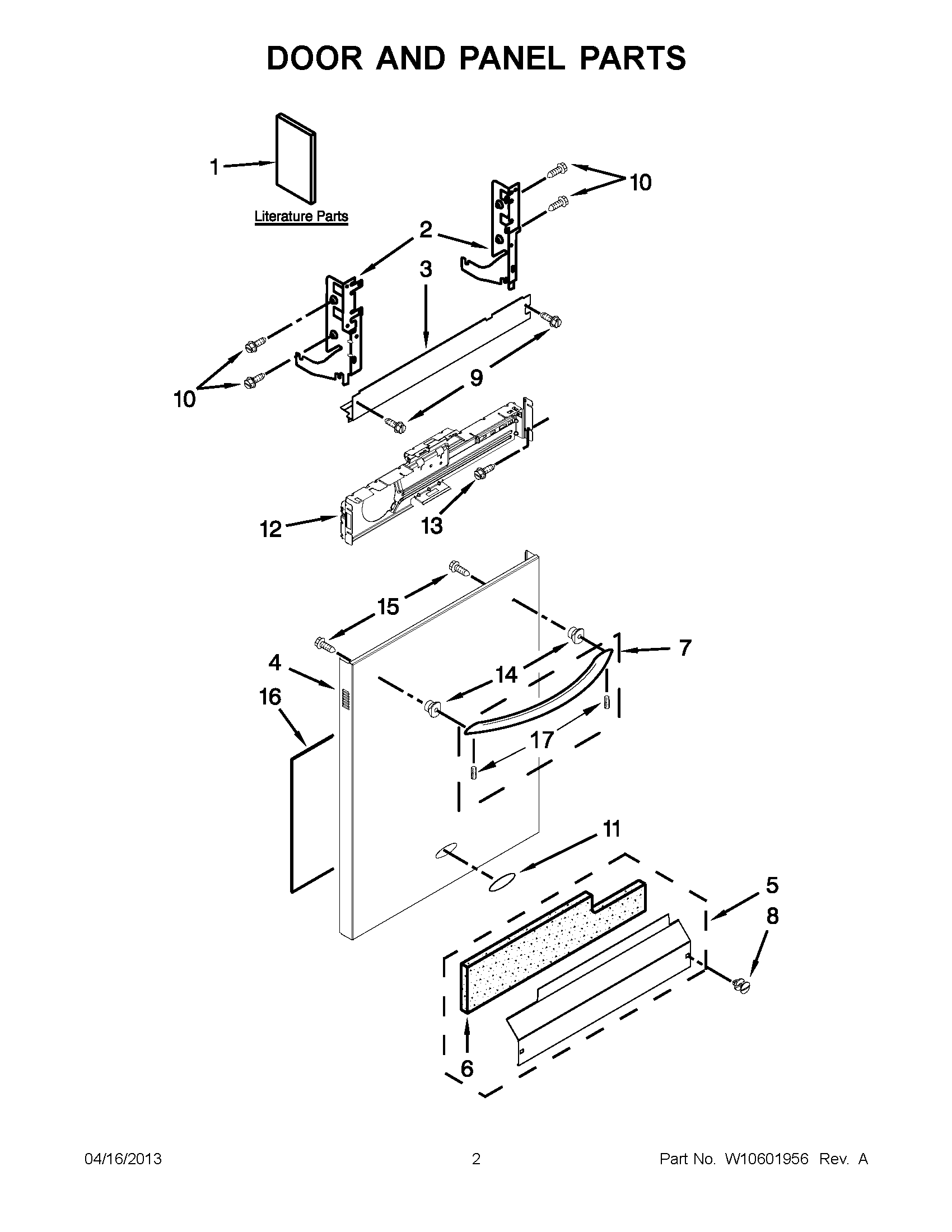

WDT790SAYM2 01 – DOOR AND PANEL PARTS

WDT790SAYM2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE, SPANISH
1TECH SHEET, FRENCH
1TECH SHEET, ENGLISH
1USE & CARE GUIDE, ENGLISH/FRENCH
1INSTRUCTIONS, INSTALLATION
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL FRONT (BLACK)
4WPW10323562 Whirlpool Dishwasher Panel
4WPW10323568 Whirlpool Dishwasher Control Panel
5W10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6SHIELD
7W10873050 Whirlpool Dishwasher Handle
7HANDLE (STAINLESS)
7W10873052 Whirlpool Dishwasher Handle
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
11W11178521 Whirlpool Dishwasher Nameplate
11WPW10393264 Whirlpool Refrigerator Nameplate
12WPW10350242 Whirlpool Dishwasher Control Bracket
13WP3400071 Whirlpool Screw
14W11157086 Whirlpool Dishwasher Door Handle Stud
15W10826179 Whirlpool Dishwasher Screw
16WPW10073520 Whirlpool Dishwasher Insulation Pad
17WP8534008 Whirlpool Screw
