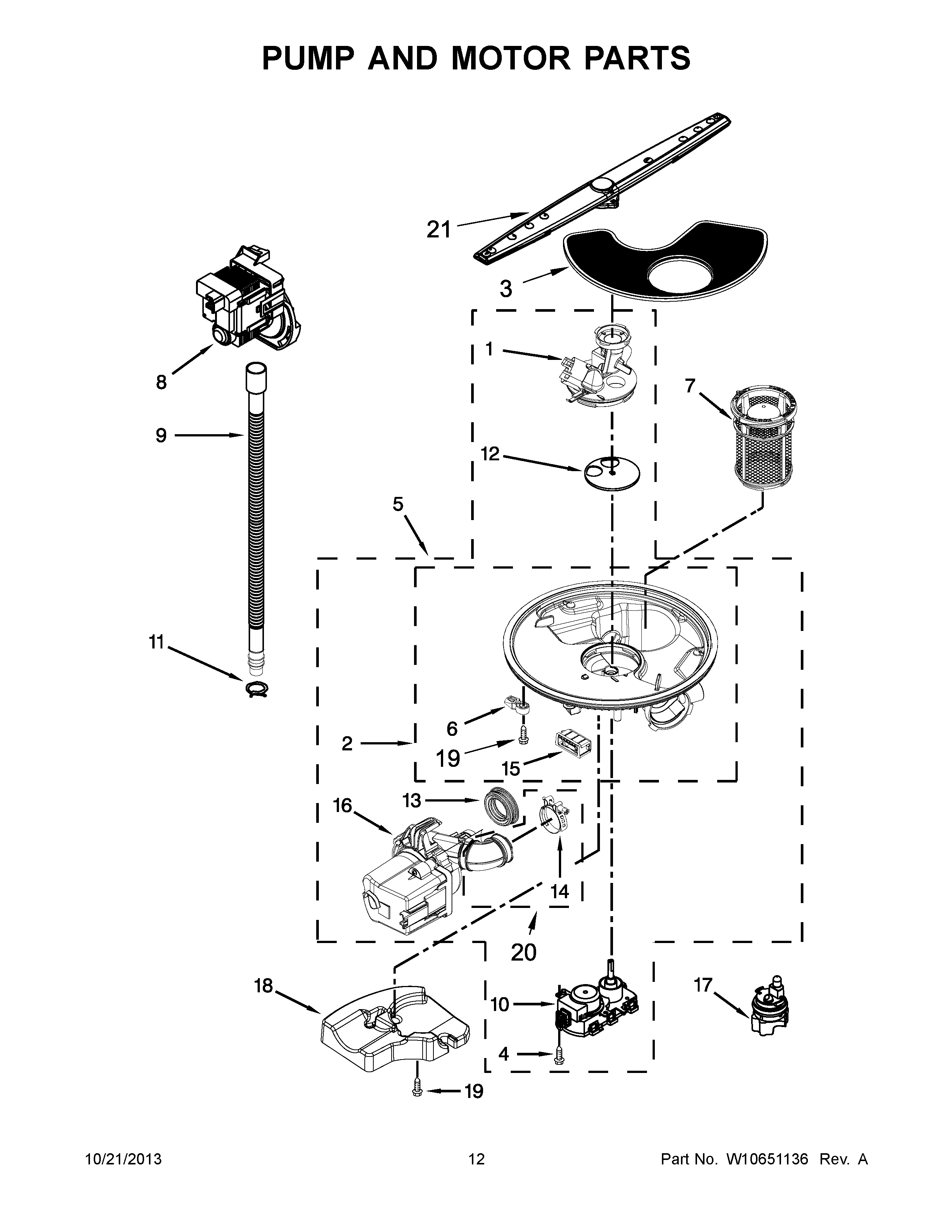

WDT790SAYW3 07 – PUMP AND MOTOR PARTS

Products

Position	Product
1	WPW10455271 Whirlpool Cover
2	WPW10455268 Whirlpool Sump
3	WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4	WP9741232 Whirlpool Dishwasher Screw
5	WPW10605057 Whirlpool Dishwasher Pump and Motor Assembly
6	WPW10372113 Whirlpool Dishwasher Sump Tab
7	W10872845 Whirlpool Dishwasher Filter Cup Trap
8	WPW10348269 Whirlpool Washer Drain Pump
9	8269144A Whirlpool Dishwasher Drain Hose
10	W10537869 Whirlpool Dishwasher Motor
11	WP285655 Whirlpool Hose Clamp
12	WPW10476221 Whirlpool Dishwasher Diffuser
13	WPW10538166 Whirlpool Grommet Pump
14	W10789434 Whirlpool Dishwasher Hose Clamp
15	W11243394 Whirlpool Dishwasher Support
16	W11032770 Whirlpool Dishwasher Circulation Pump & Motor
17	WPW10705575 Whirlpool Dishwasher Sensor
18	W10350335 Whirlpool Dishwasher Damper
19	WPW10348407 Whirlpool Dishwasher Screw
20	W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
21	ARM-SPRAY
