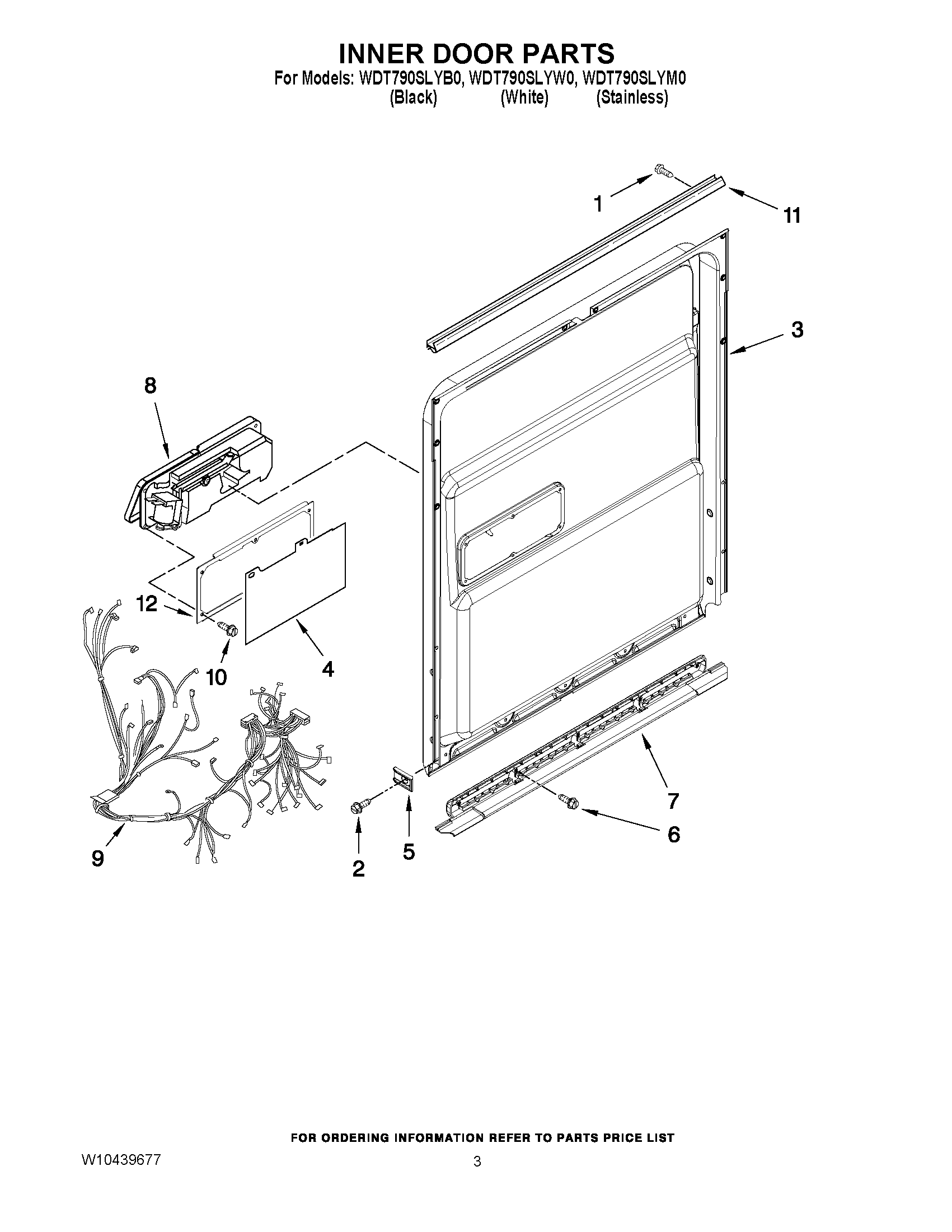

WDT790SLYB0 03 – INNER DOOR PARTS

WDT790SLYB0 03 – INNER DOOR PARTS

Written by

in

WDT790SLYB0 03 – INNER DOOR PARTS

Products

PositionProduct
2WP3400071 Whirlpool Screw
3WPW10380376 Whirlpool Dishwasher Inner Door
4WPW10482094 Whirlpool Dishwasher Cover
5W10195837 Whirlpool Dishwasher Barrier
6W11631670 Whirlpool Screw
7WPW10497235 Whirlpool Dishwasher Lower Door Seal
8DISPENSER (DISHWASHER)
9WPW10612062 Whirlpool Dishwasher Wire Harness
10WPW10177098 Whirlpool Dishwasher Screw
11WPW10195007 Whirlpool Dishwasher Seal
12WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
