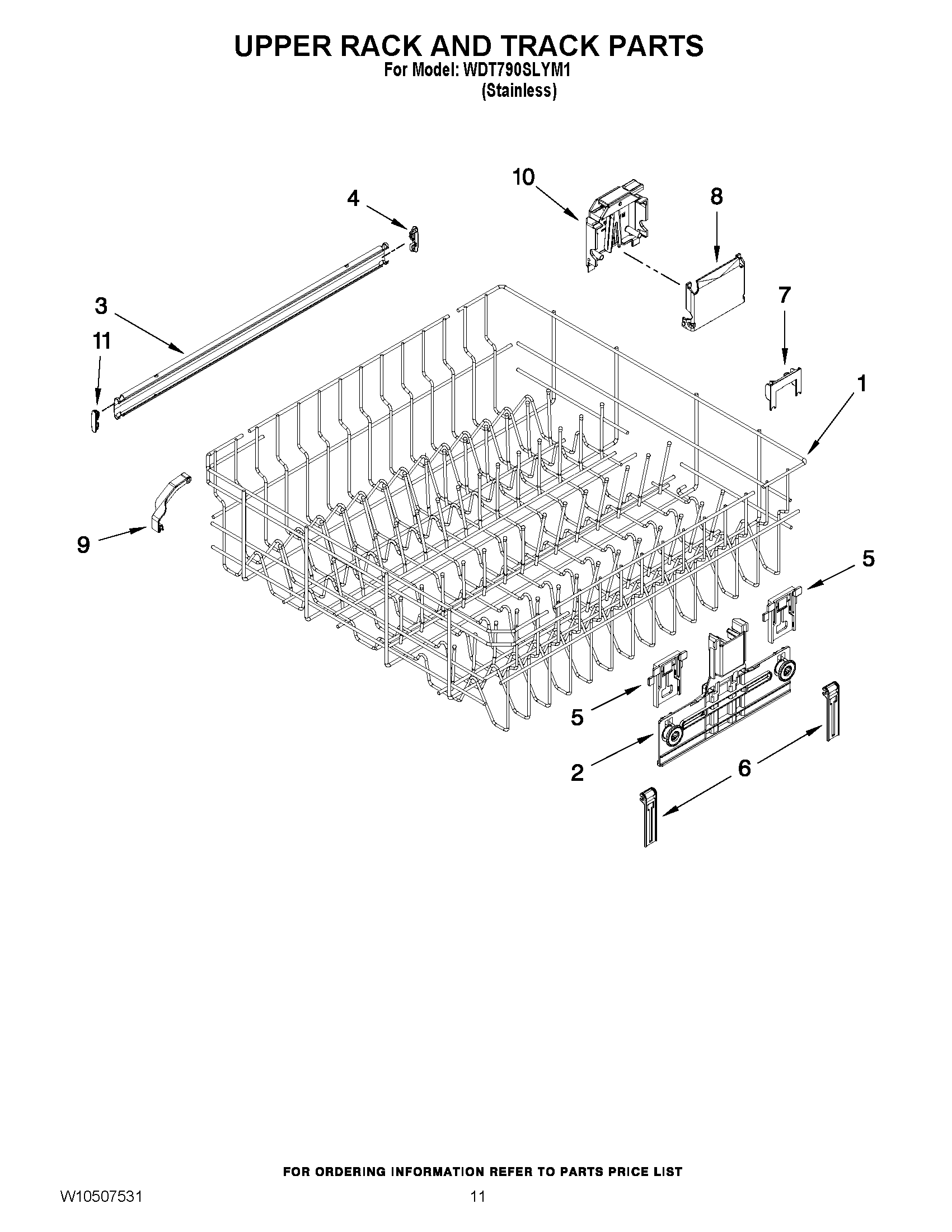

WDT790SLYM1 09 – UPPER RACK AND TRACK PARTS

WDT790SLYM1 09 – UPPER RACK AND TRACK PARTS

Written by

in

WDT790SLYM1 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10350382 Whirlpool Dishwasher Dishrack
2W10712395 Whirlpool Dishwasher Dishrack Adjuster
3WP3385089 Whirlpool Track
5WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
6WPW10195839 Whirlpool Dishwasher Rack Adjuster
7WPW10250160 Whirlpool Clip
8COVER
9WPW10254690 Whirlpool Dishwasher Clip
10WPW10195373 Whirlpool Housing
10WPW10195372 Whirlpool Housing
11WP8565925 Whirlpool Slide Rail Stop
